Beryllium Copper Rod / Strip/ Plate / Wire / Tube C17200 C17300 C17510 C17500

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number C17200 C17300 C17510 C17500
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Beryllium Copper Alloys Material Grade C17200 C17300 C17510 C17500
Standard ASTM B196, ASTM B194, SAE J463, J461 Surface Bright, Polish
State TD02/TD04/Soft/TH04 Typical Application Electrical And Industrial
Shape For Available Rod, Strip, Wire, Tube, Plate Brand CUBERYLLIUM®
High Light

Polish Beryllium Copper Strip

,

Bright Beryllium Copper Plate

,

Industrial C17200 Beryllium Copper Rod

Leave a Message
Product Description

Beryllium Copper Rod&Strip&Plate&Wire&Tube C17200 C17300 C17510 C17500

Product Name Beryllium copper
Material Grade C17200, C17300, C17510, C17500
Product End Shape Round Rod, Round Bar, Strip, Tape, Wire, Tube, Plate
Temper Hard, 1/2Hard, 1/4Hard, Soft and so on
Standard ASTM Standard



Product Informance of CUBERYLLIUM® Company:

CUBERYLLIUM® manufactures Beryllium Copper in several distinct compositions.

These fall into two categories: high strength beryllium copper alloys 172(UNS. C17200),173(UNS. C17300),170(UNS. C17000), and copper alloys selected for high conductivity 751(UNS. 17510),750(UNS. 17500),741(UNS. 17410).



CUBERYLLIUM ®-172 also named Cube2--UNS. C17200 (CDA 172) Beryllium Copper is the most commonly utilized Copper Beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. C17200 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.C17200 also exhibits exceptional resistance to stress relaxation at elevated temperatures.



CUBERYLLIUM ®-173 also named -UNS. C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.



CUBERYLLIUM ®-751 also named -UNS. C17510 (CDA 1751) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



CUBERYLLIUM ®-750 also named -UNS. C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



The Beryllium Copper Alloy Products CUBERYLLIUM ® Supply:

UNS. C17200 Rod, Strip, Plate, Wire, Tube, Billet, Disc
UNS. C17300 Rod, Wire
UNS. C17510 Rod, Plate, Wire, Disc
UNS. C17500 Rod, Plate, Wire, Disc



Chemical Composition of C17200 Beryllium Copper:

Numbering Be Co+Ni Cu Fe Pb Si Al
C17200 1.8-2.0 ≥0.2 Margin 0.15 - 0.15 0.15




Chemical Composition of C17300 Beryllium Copper:

UNS-Number Beryllium Cobalt
+ Nickel
Cobalt
+ Nickel
+ Iron
Pb Copper
C17300 1.80-2.00 0.20 min 0.6 max 0.2~0.6 Balance




Chemical Composition of C17510 Beryllium Copper:

UNS-Number Beryllium Nickel Cobalt+Nickel Cobalt+Nickel+Iron Lead Copper
C17510 0.20 ~ 0.60% 1.40 ~ 2.20% - - - Balance




Chemical Composition of C17500 Beryllium Copper:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt Fe Si Copper
Cuberyllium-C750 C17500 0.40-0.70 2.4~2.7 <0.1 <0.2 Balance

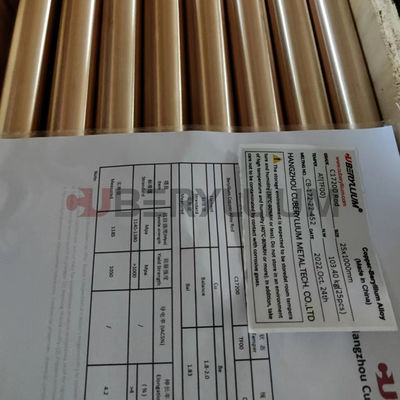

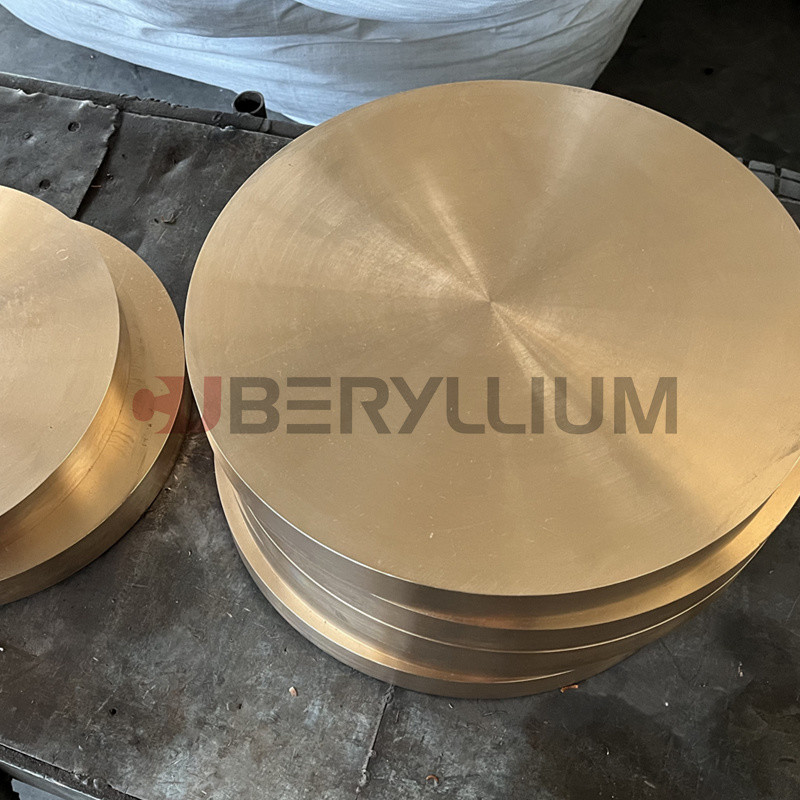

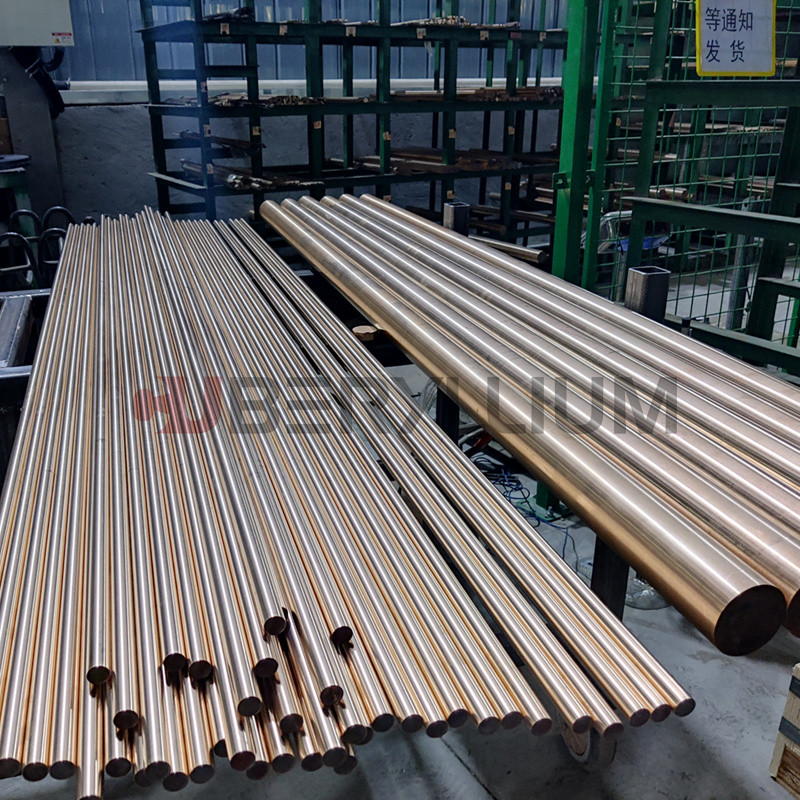

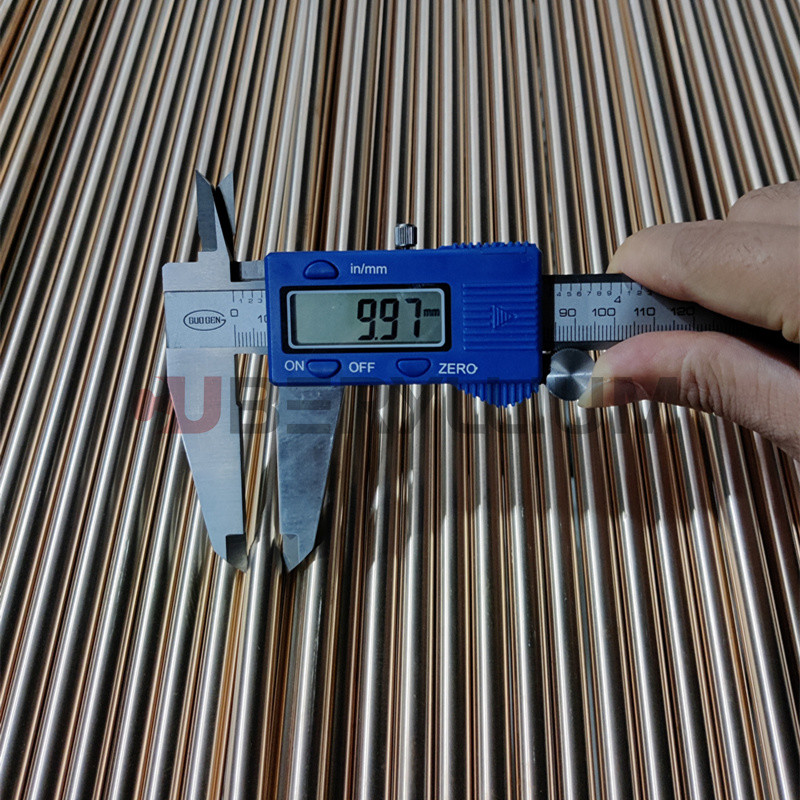

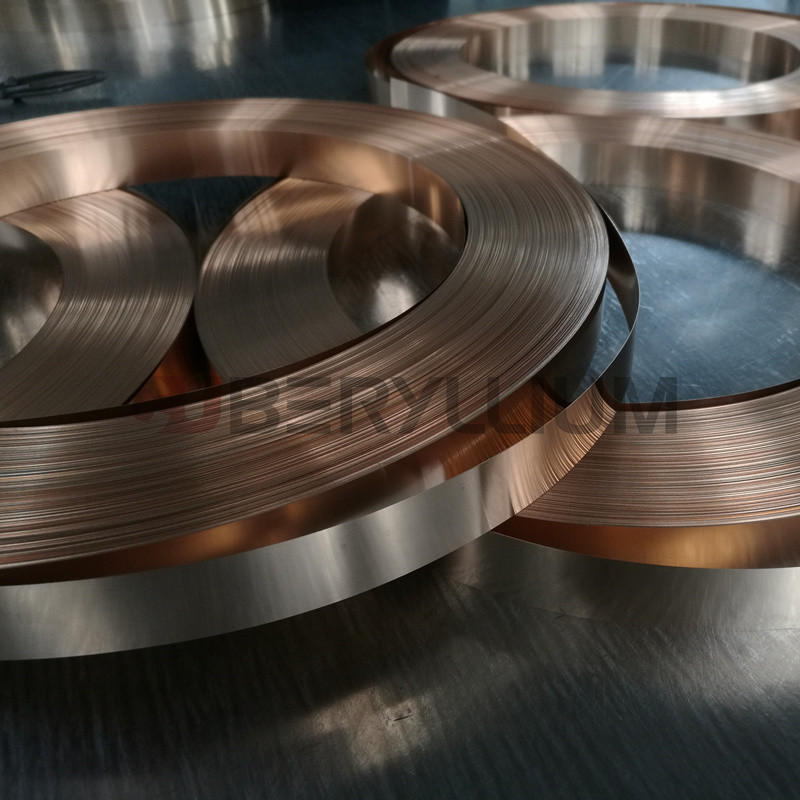

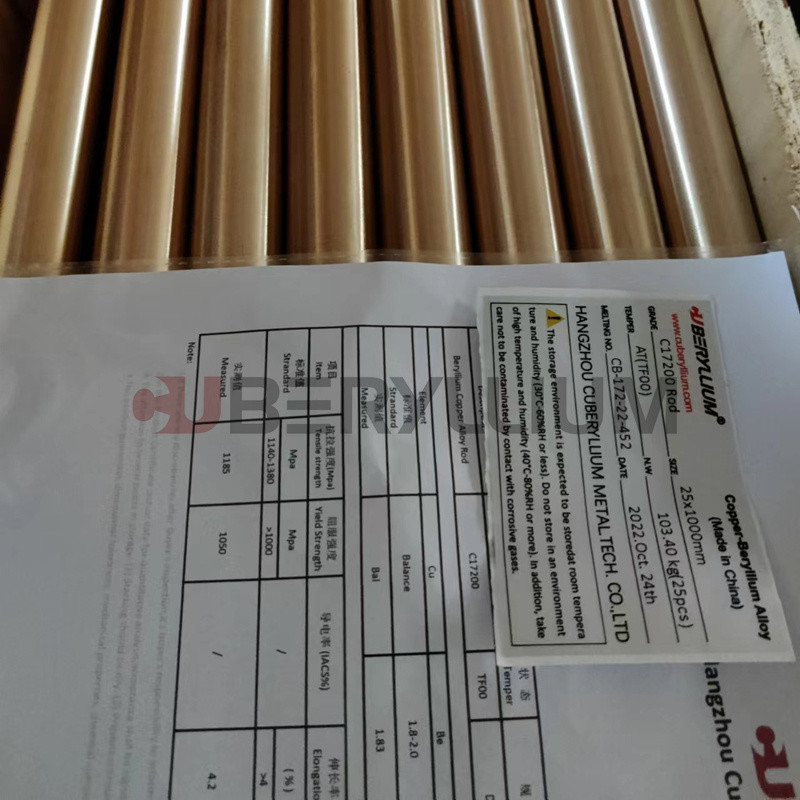

Beryllium Copper Photos:
Beryllium Copper Rod / Strip/ Plate / Wire / Tube C17200 C17300 C17510 C17500 0Beryllium Copper Rod / Strip/ Plate / Wire / Tube C17200 C17300 C17510 C17500 1Beryllium Copper Rod / Strip/ Plate / Wire / Tube C17200 C17300 C17510 C17500 2

Beryllium Copper Rod / Strip/ Plate / Wire / Tube C17200 C17300 C17510 C17500 3



Business Terms:

Trade Terms CIF, FOB, C&F, CPT, DDP
Port of delivery Shanghai, Ningbo, Hangzhou
Delivery By Sea, by Express, by Air
Payment Term Usually 30% in advance by T/T
Payment Solution By T/T, alibaba payment link and so on



Why choose Cuberyllium Metal for beryllium copper alloy products?
We could offer a wide selection of Beryllium Copper Alloys.
Broad range of products and custom capabilities
Modern, state-of-the-art facilities and equipment
Beryllium Copper Alloys in Wholesale Price
Shipping Beryllium Copper Alloys worldwide & fast delivery



Sales Contact:

If you have any requirement of beryllium copper alloys, including beryllium copper strips, beryllium copper plates, beryllium copper rods, beryllium copper billets and so on, just feel free to contact with following information:

Email: sales@cuberyllium.com

What'app: +86 17376550856
