C17300 CuBe 2Pb Beryllium Bronze Aged Round Bars Dia 10mm With Tolerance H8

Place of Origin China
Certification ISO ROHS
Model Number CuBe2Pb
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name C17300 CuBe2Pb Beryllium Bronze Aged Round Bars CUBERYLLIUM® Grade CUBERYLLIUM®-173
Standard ASTM B196, QQ-C-530 Surface Bright, Polish
State Hard/TD04 Typical Application Electrical And Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.36g/cm3 Length Clients' Requirement
Diameter Customized
High Light

C17300 CuBe 2Pb Beryllium Bronze


Round Bars C17300 Beryllium Bronze


Dia 10mm C17300 Beryllium Copper

Leave a Message
Product Description

C17300 CuBe2Pb Beryllium Bronze Aged Round Bars Dia. 10mm With Tolerance H8

Application: Switches, Sensors, Spring, Relays, Connectors, Brush motors
Material: Bronze
Alloy Or Not: Is Alloy
Length Customize length
Lead time: Usually within 15 days for normal sizes
Thickness: 10mm
Temper Aged
Model Number: C17300 CuBe2Pb
Sample: Free of change, the cost of shipment should be paid by customers
Quality: Confrim by the free sample
Brand Name: Cuberyllium
Shape: Round bars


About Cuberyllium:

Cuberyllium is one of the eminent manufacturer and exporter of high Grade Beryllium Copper Alloys, including beryllium copper strips, beryllium copper rods, beryllium copper bars, beryllium copper plates, beryllium copper sheet, beryllium copper wires, beryllium copper tubes and so no.
Cuberyllium offers a commendable range of beryllium copper alloys with competitive price. We offer beryllium copper alloys that are fabricated by our adroit professionals using supreme class raw material as per the set industry norms.
With holding years of experience in manufacturing, we continue to offer robust quality of Beryllium Copper Alloys with very reasonable prices across all over the world.


C17300 CuBe2Pb Beryllium Bronze Alloy Chemical Composition:
Be Co+Ni Co+Ni+Fe Pb Others Cu
1.80-2.00% 0.20 Min. 0.60 Max. 0.2-0.6Max. 0.05 Max. balance


Typical Physical Properties of C17300 CuBe2Pb Beryllium Bronze Alloys:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25


Application of C17300 CuBe2Pb Beryllium Bronze Alloys:
Beryllium copper and its variety of alloys are utilized in very specific and often tailor-made applications such as oilfield tools, aerospace landing gears, robotic welding, and mold making applications. Additional non-magnetic properties make it ideal for down-hole wire line tools. These specific applications are the reason this copper is known as spring copper and other various names.

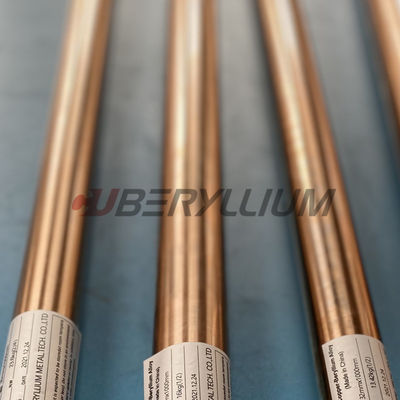

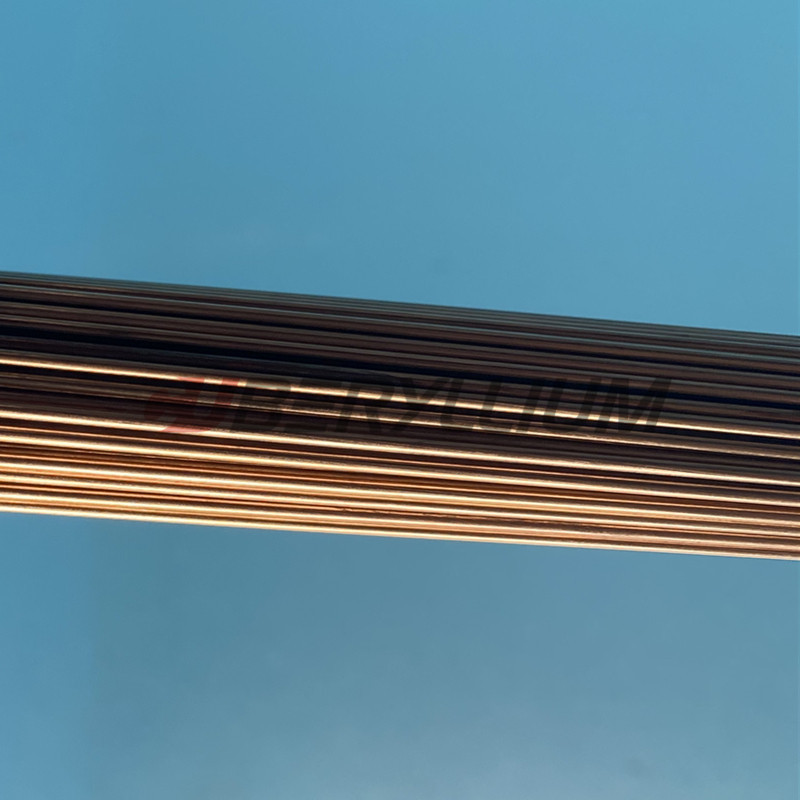

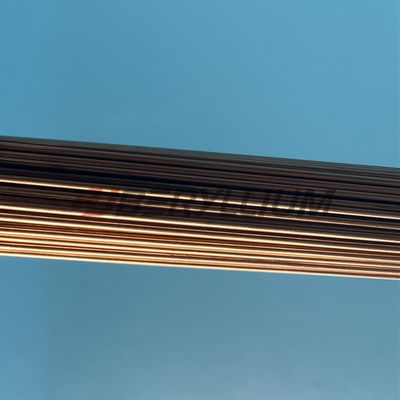

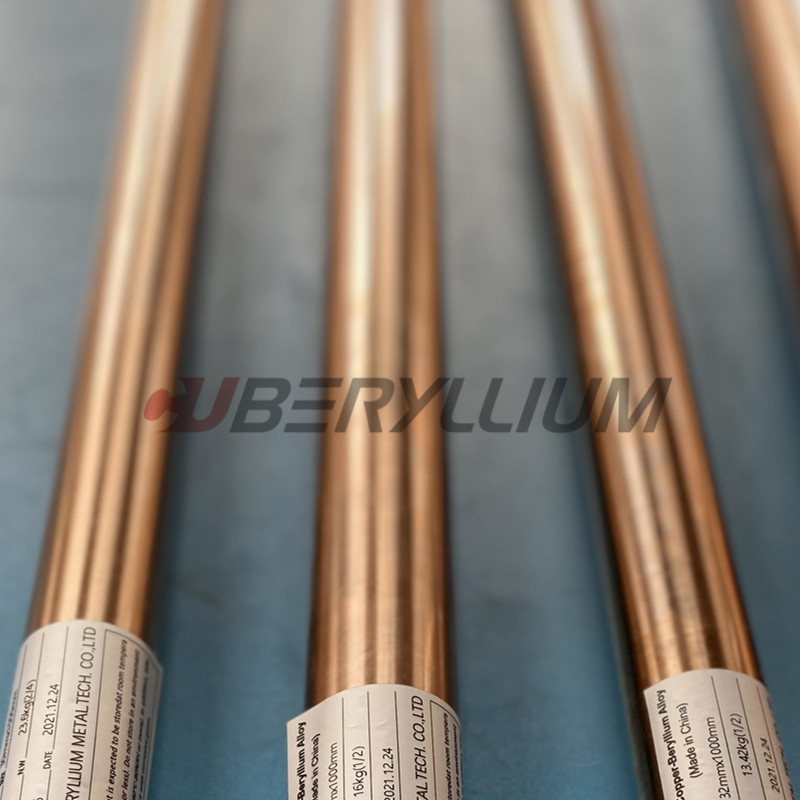

Beryllium Copper Bar Packaging Photo:

Specific Marking and Packaging:
Each item or part has a unique identifier and is specifically packaged to meet the customer’s needs. We also could adapt to customers’ request.

C17300 CuBe 2Pb Beryllium Bronze Aged Round Bars Dia 10mm With Tolerance H8 0

C17300 CuBe 2Pb Beryllium Bronze Aged Round Bars Dia 10mm With Tolerance H8 1


Why choose Cuberyllium Metal for beryllium copper alloy products?
We could offer a wide selection of Beryllium Copper Alloys.
Broad range of products and custom capabilities
Modern, state-of-the-art facilities and equipment
Beryllium Copper Alloys in Wholesale Price
Shipping Beryllium Copper Alloys worldwide & fast delivery


Exceptional production range:
Beryllium copper alloy
Beryllium copper rod
Beryllium copper strip
Beryllium copper wire
Beryllium copper plate
Beryllium copper billet
Beryllium copper tube
