CuBe2Pb TD04 Round Bar By ASTM-B196 C17300 CW102 C EN 10204 -3.1

  • CuBe2Pb TD04 Round Bar By ASTM-B196 C17300 CW102 C EN 10204 -3.1
  • CuBe2Pb TD04 Round Bar By ASTM-B196 C17300 CW102 C EN 10204 -3.1
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number CuBe2Pb
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CuBe2Pb By ASTM-B196 C17300 CW102 C Bar CUBERYLLIUM® Grade CUBERYLLIUM®-173
Standard ASTM B196, QQ-C-530 Surface Bright, Polish
State Hard/TD04 Typical Application Electrical And Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.36g/cm3 Length Clients' Requirement
Diameter 1mm
High Light

CuBe2Pb C17300 Beryllium Copper

,

C17300 Round Bar

,

ASTM-B196 C17300
Leave a Message
Product Description

CuBe2Pb by ASTM-B196 C17300 CW102 C EN 10204 -3.1 TD04 Round Bar

Product Description:
Product Name Beryllium Copper Bar
Grade CuBe2Pb/ C17300/ CW 102 C
End product Form Round Bar
State Hard/ TD04
Standard EN 10204-3.1, ASTM-B196
Rod Thickness 0.8mm~100mm
Brand Name CUBERYLLIUM®



Chemical Composition of CuBe2Pb C17300 CW102 C Copper Alloys:

Be(Beryllium) 1.80~2.00
Co+Ni (Cobalt+ Nickel) 0.20 min
Co+Ni+Fe (Cobalt+ Nickel+ Iron) 0.6 max
Pb  0.2～0.6
Cu (Copper) Rem.
Note: Copper plus additions equal 99.5% minimum.



Typical Physical Properties of CuBe2Pb C17300 CW102 C Copper Alloys:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25



About CUBERYLLIUM® 's Advantage:

At Cuberyllium, we use extensive knowledge to determine the best method of manufacture for your products. We create the perfect product flow dependent on our customers demanding needs. This allows for us to insure all metallurgical, mechanical & physical properties are met. And of course, the quality is second to none. Contact with us to allow our process engineers the opportunity to create product that exceeds your needs.



Introduction for CuBe2Pb C17300 CW102 C Copper Alloys:

C17300 (M25) high-strength CopperBerillium Alloy is nearly identical to C17200/CuBe2, but with a small percentage of lead added strictly to increase machinability performance for high speed screw machining.

Alloy C17300 M25Copper Berillium, which gets its strength from precipitation heat treating, is used typically in round insertion connector and sensor, RWMA applications in the aerospace, oil and gas, marine, performance racing, and plastic mold tooling industries, non-sparking safety tools, flexible metal hose, bushings, electro-chemical springs and bellows.

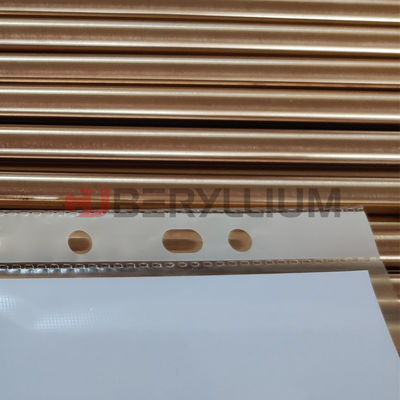

Beryllium Copper Bar Packaging Photo:

Type of Packing:
Bundles (hexagonal)
Wooden Boxes
Crates (steel/wooden)
Packaging for Beryllium Copper Bar and Strip as per customer's requirements

CuBe2Pb TD04 Round Bar By ASTM-B196 C17300 CW102 C EN 10204 -3.1 0



The Product Range of CUBERYLLIUM®:
C17200 Copper
C17300 Copper
C17500 Copper
C17510 Copper
C17410 Copper
CuBe2 Copper

Cuberyllium Grades EN Standards UNS Standards Name RWMA Material
CUBERYLLIUM ®-172 CW101C C17200 CuBe2 RWMA Class 4
CUBERYLLIUM ®-173 CW102C C17300 Cube2Pb /
