JIS C173 Beryllium Copper Round Bar Temper TD04 For Flexible Metal Hose
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO ROHS |
| Model Number | C17300 |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |
| Packaging Details | Packed with waterproof paper or woven bag, then put it into wooden box or pallets. |
| Delivery Time | 10~15 working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | JIS C173 Beryllium Copper Round Bar 1mm-6mm With Temper TD04 For Flexible Metal Hose | Grade | C17300 |
|---|---|---|---|
| Standard | AMS 4650,4651,4533,4534 | Diameter | 2mm~8mm |
| Typical Application | Flexible Metal Hose | Safe Handling | No Special Health Risk. |
| Machining Property | Good | State | A(TB00), H(TD04), AT(TF00) |
| Shape For Available | Round,Rectangle | Surface | Bright,Polished |
| Length | 3000mm | Density | 8.36g/cm3 |
| High Light | JIS C173 Beryllium Copper Round Bar,TD04 Beryllium Copper Round Bar,Round Bar C17300 Beryllium Copper |
||
Product Description
JIS C173 Beryllium Copper Round Bar 1mm-6mm With Temper TD04 For Flexible Metal Hose
Product Specification:
| Name | JIS C173 Beryllium Copper Round Bar 1mm-6mm With Temper TD04 For Flexible Metal Hose | ||
| Standard | ASTM B194,B196 | ||
| AMS 4650,4651,4533,4534 | |||
| MILITARY MIL-C-21657 | |||
| SAE J463,J461 | |||
| Diameter | 1mm~30mm | ||
| Length | 1000mm-6000mm or as required | ||
| Export to |
Indonesia,Ukraine,USA,Brazil,Thailand,VietNam,Korea,lndia, Egypt.Dubai,Kuwait,Malaysia,Russia,Australia,etc |
||
| Package | Packed with waterproof paper or woven bag, then put it into wooden box or pallets. | ||
| MOQ | 30Kg | ||
| Application | |||
|
Physical property:
Advantages:
1. The surface of the product is smooth and flat without rust, scratch, delamination, pinhole and bubble.
2. We have professional production equipment and use vacuum Semi- Continuous Furnace for melting, which can obtain the Cast ingot without gas,smaller segregation, Grain Refinement.
3. Various Types of Specifications. Multiple specifications optional, support customized.
Lead Time:
| Quantity(kilograms) | 1 - 50 | 51 - 100 | >100 |
| Est. Time(days) | 7 | 15 | To be negotiated |
Detailed Specifications:
| Bar/Rod | Diameter:1.0-200mm Length:1000-6000mm |
| Sheet/Plate | Thickness:0.2-100mm Width:100-1000mm Length:1000-2000mm |
| Strip/Tape | Thickness:0.01-2.0mm Width:4-1000mm |
| Pipe/Tube | Thickness:0.1-100mm OD:1-600mm |
Mechanical and Electrical Properties:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | ＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

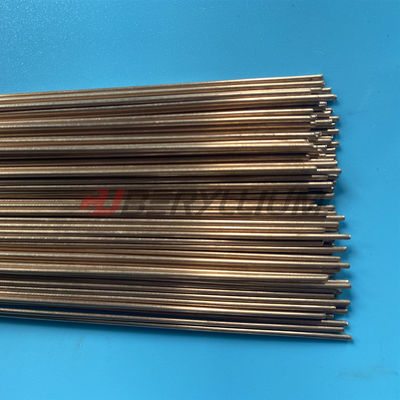

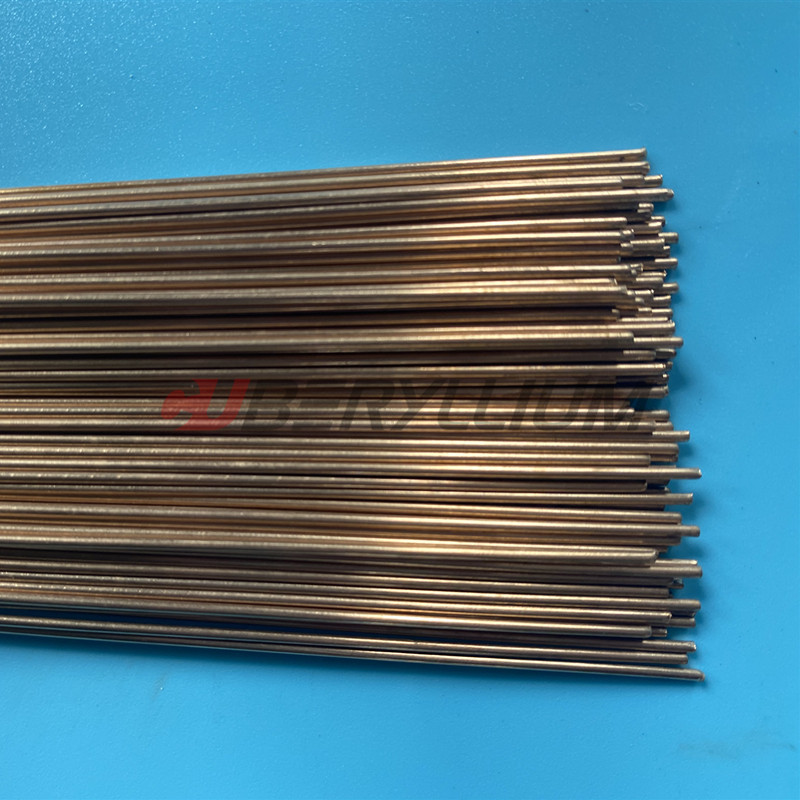

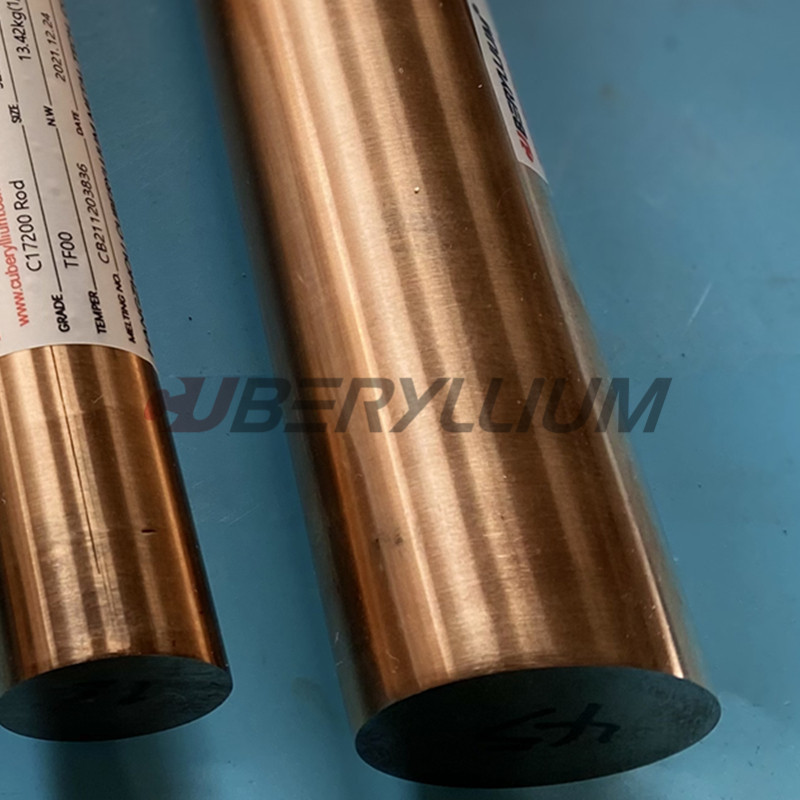

Product Photos:
Alloy M25 can be supplied in the form of bar or wire based on different design needs. Also there are different supply states for customers to choose according to different needs. C17300 also has good welding performance, wear resistance and adhesion resistance. It can be forged into parts of various shapes. Beryllium copper c17300 has better strength and wear resistance than chromium zirconium copper alloy.
FAQ:
1. How can I contact with your company?
We are always ready to serve you via Email, Telephone, Fax, Whatsapp or Mobile telephone.
Mobile/Wechat/Whatsapp: +86-17376550856
Email:info@cuberyllium.com
2. What is the lead time?
Usually 7 days after payment has been confirmed.
3. What is your payment terms?
T/T,L/C,Western Union,MoneyGram,Paypal.
4. What’s your advantage?
1) Professional production equipment.
2)Smooth surface.
3) Complete specification.
