ASTM B194 Copper Beryllium Alloy Rod C17300 For Bourdon Tubes Bellows
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO ROHS |
| Model Number | C17300 |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | ASTM B194 Copper Beryllium Alloy Rod C17300 For Bourdon Tubes, Bellows | Grade | C17300 |
|---|---|---|---|
| Standard | ASTM B194,B196 | Diameter | 1mm~6mm |
| Application | Non-Sparking Safety Tools, Shafts, Pumps, Springs, Welding Equipment | Safe Handling | No Special Health Risk. |
| Machining Property | Good | Temper | TD04,TF00 |
| Modulus Of Elasticity Tension | 131Gpa | Shape For Available | Rod, Bars, Round Bars, Round Wires |
| Surface | Bright,Polished,Mill | Length | 2000mm |
| High Light | ASTM B194 Copper Beryllium Alloy Rod,Polished C17300 Beryllium Copper,Bright Beryllium Alloy Rod |
||
Product Description
ASTM B194 Copper Beryllium Alloy Rod C17300 For Bourdon Tubes, Bellows
Product Description:
| Product Name | Cuberyllium Copper Rod |
| Grade | C17300 |
| End Product Form | Rods |
| Standard | ASTM B196,B194 |
| State of product | TD04,TF00 |
| Processing | Seamless / Welding |
| Feature | With high strength and high conductivity |
| Specification |
Dia 1~6mm; Length 2000mm or according customers' requirement |
Typical Applications:
1)Copper bar is widely used in boat building,War industry, Car industry and communication industry where the components need good wear proof and great corrosion resistance.
2)RF Coaxial Connector, Switch Parts, Relay parts, Electrical Connectors, Fuse Clips, Contact Bridges, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades.
Chemical Composition of C17300 Beryllium Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Mechanical and Electrical Properties of Cuberyllium Copper Rods C17300:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | ＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

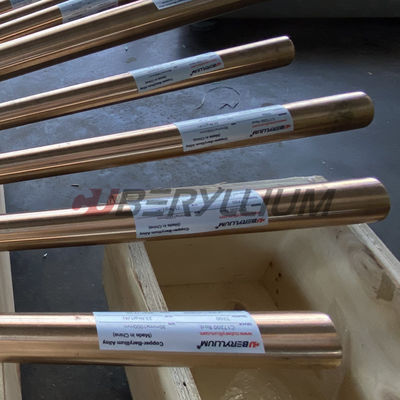

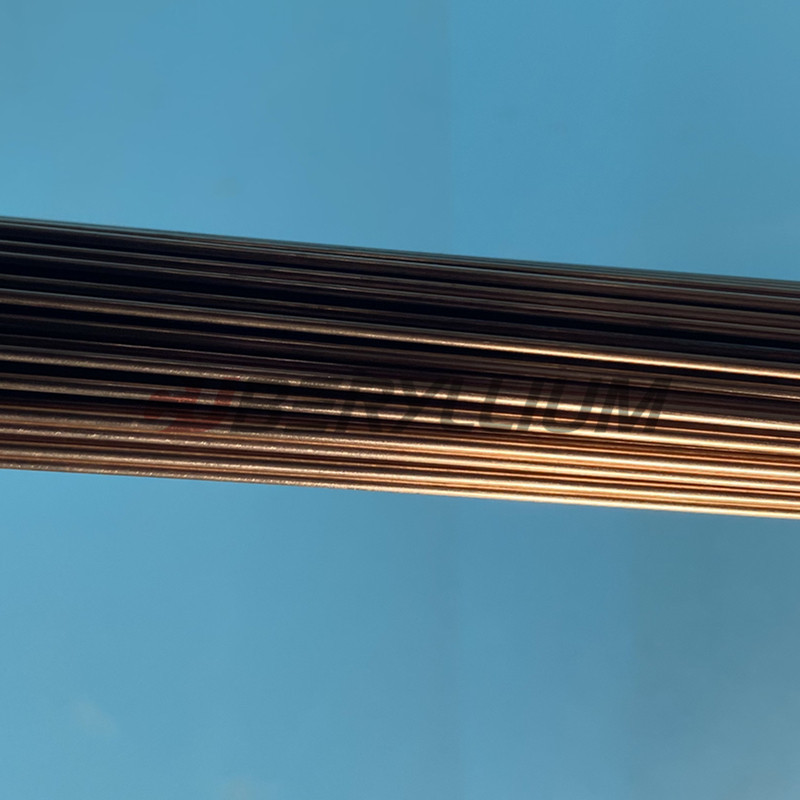

Product Photos:
Benefits of Cuberyllium Copper Alloys C17300:
- High stiffness for insertion applications
- Excellent in for anti-galling concerns
- Excellent machinability
- Good electrical and thermal conductivity
- Low friction properties
- Excellent corrosion and erosion resistance
- Non-magnetic
More Products:
More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.
Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
