Leaded Beryllium Copper Wire EN CuBe2Pb For RF Coaxial Connector Switch Parts
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO ROHS |
| Model Number | C17300 |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |

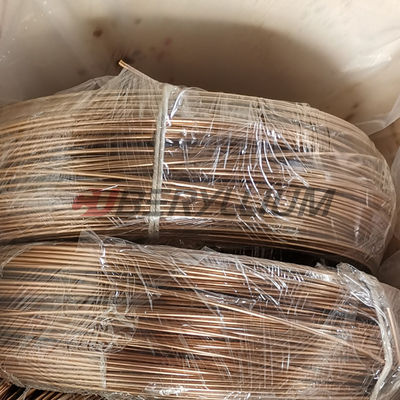

| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10~15days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Leaded Beryllium Copper Wire EN CuBe2Pb For RF Coaxial Connector, Switch Parts | Grade | C17300 |
|---|---|---|---|
| Standard | ASTM B197 | Diameter | 0.2mm-0.8mm |
| State | A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04) | Application | RF Coaxial Connector, Switch Parts, Relay Parts |
| Safe Handling | No Special Health Risk. | Machining Property | Good |
| Thermal Conductivity (25 °C) | 107 W/m °C | Modulus Of Elasticity Tension | 131Gpa |
| Shape For Available | Rod Or Coil Wire | Processing Service | Bending, Decoiling, Welding, Punching, Cutting |
| High Light | Leaded Beryllium Copper Wire,RF Coaxial Connector C17300 Beryllium Copper,Switch Parts C17300 Beryllium Copper |
||
Product Description
Leaded Beryllium Copper Wire EN CuBe2Pb For RF Coaxial Connector, Switch Parts
Physical Properties:
Density (g/cm3): 8.36
Elastic Modulus (GPa): 131
Thermal Expansion Coeffsient(m/m℃): 17.8×10-6
Thermal Conductivity(25℃)(W/m℃): 107
Melting Point(°C): 870℃
Typical Applications:
1) Electrical Industry: RF Coaxial Connector, Switch Parts, Relay parts, Electrical Connectors
2) Fuse Clips, Contact Bridges, Electrical Motor Components
3) Navigational Instruments, Electrical Switch and Relay Blades
4) Industrial: Bushings, Non-Sparking Safety Tools, Shafts, Pumps, Springs
5) Welding Equipment, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves
6) Bourdon Tubes, Bellows, Electrochemical Springs, Flexible Metal Hose
Chemical Composition of C17300 Beryllium Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
International Specification:
Wires: ASTM B197, AMS4725, SAE J461,463
European Standards: CuBe2, DIN 2.1247, CW101C to EN
Most Commonly Temper Used:
Wires: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
Mechanical and Electrical Properties:
| Alloy | Temper (*) | Heat Treatment | Tensile Strength ksi | Elongation percent | Electrical Conductivity percent IACS |
| CUBERYLLIUM 173 |
A | / | 400～580 | 30-60 | 15-19 |
| (TB00) | |||||
| 1/4 H | / | 570～795 | 3~25 | 15-19 | |
| (TD01) | |||||
| 1/2 H | / | 710～930 | 2~15 | 15-19 | |
| (TD02) | |||||
| 3/4 H | / | 840～1070 | 2~8 | 15-19 | |
| (TD03) | |||||
| H | / | 915～1140 | 1~6 | 15-19 | |
| (TD04) | |||||
| CUBERYLLIUM 173 |
AT | 3 hr 315 | 1050~1380 | 3 min | 22-28 |
| (TF00) | |||||
| 1/4 HT | 2 hr 315 | 1150~1450 | 2 min | 22-28 | |
| (TH01) | |||||
| 1/2 HT | 1.5hr 315 | 1200~1480 | 2 min | 22-28 | |
| (TH02) | |||||
| 3/4 HT | 1.0 hr 315 | 1250~1585 | 2 min | 22-28 | |
| (TH03) | |||||
| HT | 1.0hr 315 | 1300~1585 | 1 min | 22-28 |

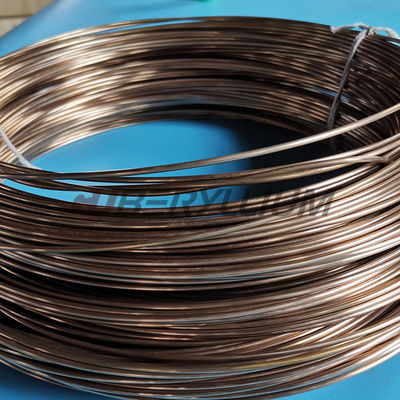

Product Photos:
More Products:
More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:
C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)
FAQ:
Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.
Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
