BrB2 CuBe2 Qbe2.0 Beryllium Copper Wires Dia 0.1mm 0.2mm 0.3mm
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM® |
| Certification | ISO ROHS |
| Model Number | BrB2 CuBe2 Qbe2.0 |
| Minimum Order Quantity | 30kg |
| Price | USD 30/KG |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10～15 Working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Beryllium Copper Wires | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
|---|---|---|---|
| Diameter Range | 0.1mm 0.2mm 0.3mm | Temper | A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04) |
| Surface | Bright | Typical Application | Coil Springs |
| Shape For Available | Coil Wire | Package | In Coils |
| ASTM | ASTM B197 | Application | For Electrical Indsutry |
| High Light | 0.3mm Beryllium Copper Wires,BrB2 Beryllium Copper Wires,0.1mm Beryllium Copper Wires |
||
Product Description
BrB2 CuBe2 Qbe2.0 Beryllium Copper Wires Diameter 0.1mm 0.2mm 0.3mm
| Commodity | Beryllium copper wires |
| Grade | BrB2 CuBe2 Qbe2.0 |
| Dia. | 0.1mm 0.2mm 0.3mm |
| Length | we also could cut any length according customers' demand |
| Surface | Bright, Polished |
| Package | Pack in woodencase |
| State | TB00 |
| Product Brand | CUBERYLLIUM® |
Chemical Composition of BrB2 CuBe2 Qbe2.0 Beryllium Copper Alloy:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C172 | C17200 | 1.80-2.00 | 0.20 min | 0.6 max | 0.02 Max | Balance |
Typical Physical Properties of BrB2 CuBe2 Qbe2.0 Beryllium Copper Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of BrB2 CuBe2 Qbe2.0 Beryllium Copper Wires:
| Alloy | Temper (*) | Heat Treatment | Tensile Strength Mpa | Elongation percent | Electrical Conductivity percent IACS |
| CUBERYLLIUM 172 |
A | / | 400～580 | 30-60 | 15-19 |
| (TB00) | |||||
| 1/4 H | / | 570～795 | 3~25 | 15-19 | |
| (TD01) | |||||
| 1/2 H | / | 710～930 | 2~15 | 15-19 | |
| (TD02) | |||||
| 3/4 H | / | 840～1070 | 2~8 | 15-19 | |
| (TD03) | |||||
| H | / | 915～1140 | 1~6 | 15-19 | |
| (TD04) | |||||
| CUBERYLLIUM 172 |
AT | 3 hr 315℃ | 1050~1380 | 3 min | 22-28 |
| (TF00) | |||||
| 1/4 HT | 2 hr 315℃ | 1150~1450 | 2 min | 22-28 | |
| (TH01) | |||||
| 1/2 HT | 1.5hr 315℃ | 1200~1480 | 2 min | 22-28 | |
| (TH02) | |||||
| 3/4 HT | 1.0 hr 315℃ | 1250~1585 | 2 min | 22-28 | |
| (TH03) | |||||
| HT | 1.0hr 315℃ | 1300~1585 | 1 min | 22-28 | |
| (TH04) |

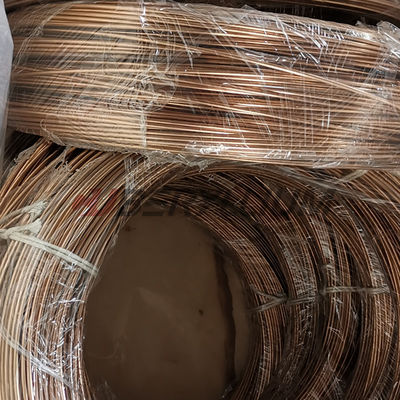

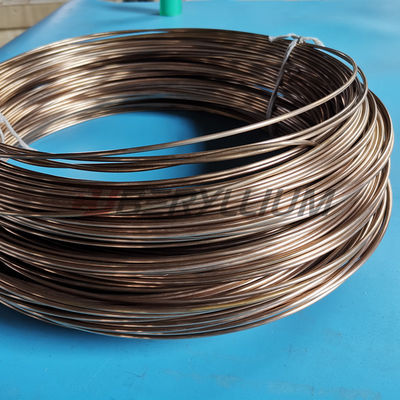

Product Photo:
Process of BrB2 CuBe2 Qbe2.0 Beryllium Copper Wires:
What is Beryllium Copper?
Beryllium copper (BeCu), also known as copper beryllium (CuBe), beryllium bronze and spring copper, is a copper alloy with 0.5—3% beryllium and sometimes other elements. It has superb metalworking, framing and machining properties. It has many specialized applications in electrical industry, industrail and aviation.
The small proportion of beryllium to copper makes a group of high copper amalgams with quality as high as compound steel. The first of the two families, C17200 and C17300, incorporates high quality with moderate conductivity, while the subsequent family, C17500 and C17510, offers high conductivity with moderate quality.
Where is Beryllium Copper used?
Beryllium copper is a non-ferrous composite utilized in springs, spring wire, load cells, and different parts that must hold their shape under rehashed anxiety. It has high electrical conductivity and is utilized in low-flow contacts for batteries and electrical connectors.
Other Uses:
Ultra-low temperature cryogenic equipment, such as dilution refrigerators, because of its mechanical strength and relatively high thermal conductivity in this temperature range
Servicing magnetic resonance imaging (MRI) machines, where high strength magnetic fields make use of ferrous tools dangerous, and where magnetic materials in the field can disturb the image.
It has important applications in oilfield tools, aerospace landing gears, robotic welding, and mold making applications.
