Alloy M25 Leaded Copper Beryllium Wires For Contact Bridges High Strength ASTM B197

High Strength Alloy M25 Leaded Copper Beryllium Wires Used For Contact Bridges

Product Description:

Product Name: High stength leaded copper beryllium wires

Grade: Alloy M25

State: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)

Available Products(Forms): round wires, flat wires, coils

Size: Custom Diameter & Size, Random Mill Lengths

Brand: CUBERYLLIUM®

High Strength Alloy M25 Leaded Copper Beryllium Wires International Specification:

Wires: ASTM B197, QQ-C-530, EN 12166

European Standards: CuBe2Pb, Alloy M25, UNS.C17300, DIN.2.1248, CW102C to EN

Chemical Composition of High Strength Alloy M25 Leaded Copper Beryllium:

Note: Copper plus additions equal 99.5% minimum.

Mechanical and Electrical Properties of High Strength Alloy M25 Leaded Copper Beryllium Wires:

Physical Property of Beryllium Copper Alloy:

1. High strength;

2. High Hardness;

3. High Elasticity

4. Superior fatigue resistance

5. Superior abrasion resistance

6. Superior mouldability and isotropy

Application of Beryllium Copper Alloy:

1. Relay parts

2. Connectors/sensors

3. Temperature control switch

4. Switch/micro switch/ micro-motors brush

5. Strong spring / the thermostat spring / all kinds of spring piece

Key Technology of Beryllium Copper(Heat treatment)

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

Solution Annealing

For the typical alloy CuBe2Pb) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

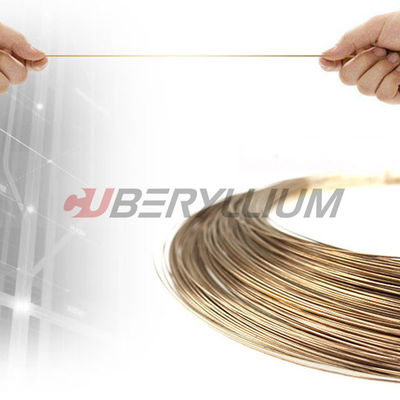

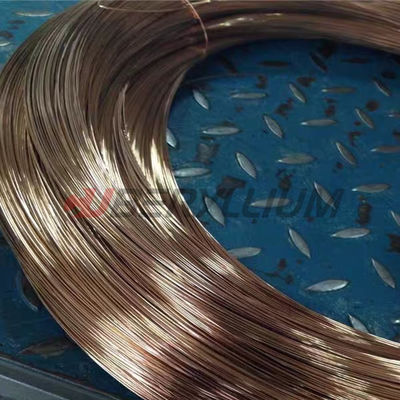

Product Photo:

FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
