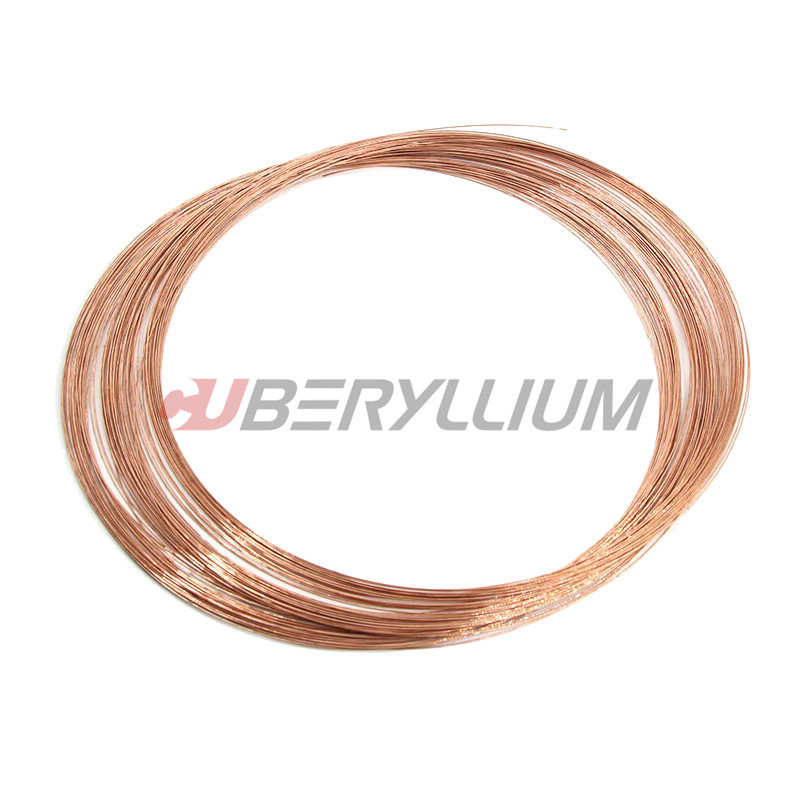

CuBe2 Uns C17200 Tf00 Th04 Beryllium Copper Spring Wires High Strength

  • CuBe2 Uns C17200 Tf00 Th04 Beryllium Copper Spring Wires High Strength
  • CuBe2 Uns C17200 Tf00 Th04 Beryllium Copper Spring Wires High Strength
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number UNS.C17200(CuBe2)
Minimum Order Quantity 30kg
Price USD 30/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name UNS.C17200(CuBe2) Beryllium Copper Spring Wires Diameter Range 0.08mm～6mm
Temper Hard Surface Bright
Heat Treatment 3 Hr 315C-330C Typical Application Coil Springs
Shape For Available Rod Or Coil Wire Tensile Strength 915~1140Mpa
Elongation Percent 1~6 Electrical Conductivity Percent 15-19
Package In Coils ASTM ASTM B197
High Light

uns c17200 th04

,

Uns C17200 Tf00 Beryllium Copper Spring Wires

,

Tf00 C172 Beryllium Copper
Leave a Message
Product Description

UNS.C17200(CuBe2) Beryllium Copper Spring Wires With High Strength And Elastivity

Product Description:

Name: Beryllium copper spring wires

Grade: UNS.C17200(CuBe2)

Specification: Diameter 3mm(+0/-0.05)

Surface: Bright

State: A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04)

Features: High strength and elestivity

Application: For spring





CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-172 also named -C17200 (CDA 172) offers the strength properties of C17200.



Chemical Composition of UNS.C17200(CuBe2) Beryllium Copper Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt
+ Nickel		 +Cobalt
+ Nickel
+ Iron		 Pb Copper
Cuberyllium-C172 C17200 1.80-2.00 0.20 min 0.6 max 0.02 Max Balance

Copper plus additions equal 99.5% Min.


Typical Physical Properties UNS.C17200(CuBe2) Beryllium Copper Alloys:



Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980





Mechanical and Electrical Properties of UNS.C17200(CuBe2) Beryllium Copper Wires:

Alloy Temper (*) Heat Treatment Tensile Strength Mpa Elongation percent Electrical Conductivity percent IACS
CUBERYLLIUM
172		 A / 400～580 30-60 15-19
(TB00)
1/4 H / 570～795 3~25 15-19
(TD01)
1/2 H / 710～930 2~15 15-19
(TD02)
3/4 H / 840～1070 2~8 15-19
(TD03)
H / 915～1140 1~6 15-19
(TD04)
CUBERYLLIUM
172		 AT 3 hr 315℃ 1050~1380 3 min 22-28
(TF00)
1/4 HT 2 hr 315℃ 1150~1450 2 min 22-28
(TH01)
1/2 HT 1.5hr 315℃ 1200~1480 2 min 22-28
(TH02)
3/4 HT 1.0 hr 315℃ 1250~1585 2 min 22-28
(TH03)
HT 1.0hr 315℃ 1300~1585 1 min 22-28
(TH04)





International Specification of UNS.C17200(CuBe2) Beryllium Copper Alloys:

Product Type Temper Type
Bar ASTM B196
Military Mil-C-21657
Rod ASTM B196
Military Mil-C-21657
Wire ASTM B197, AMS4725, SAE J461,463, RWMA Class 4
European Standards CuBe2, Alloy 25, BrB2, DIN.2.1247, CW101C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.





Typical Uses For UNS.C17200(CuBe2) Beryllium Copper Alloy:

Product Category Product Reason Category Reason
Electrical Navigational Instruments Conductivity (Electrical) Electrical Conductivity
Navigational Instruments Conductivity (Thermal) Thermal Conductivity
Navigational Instruments Corrosion Resistance Corrosion Resistance
Navigational Instruments Mechanical Properties Very High Strength
Relay Parts Conductivity (Electrical) Electrical Conductivity
Relay Parts Conductivity (Thermal) Thermal Conductivity
Relay Parts Corrosion Resistance Corrosion Resistance
Relay Parts Mechanical Properties Very High Strength





Fabrication

JOINING TECHNIQUE SUITABILITY
Brazing Good
Butt Weld Fair
Capacity for Being Cold Worked Excellent
Capacity for Being Hot Formed Good
Coated Metal Arc Welding Good
Gas Sheilded Arc Welding Good
Machinability rating 50
Oxyacetylene Welding Not Recommended
Seam Weld Fair
Soldering Good
Spot Weld Good

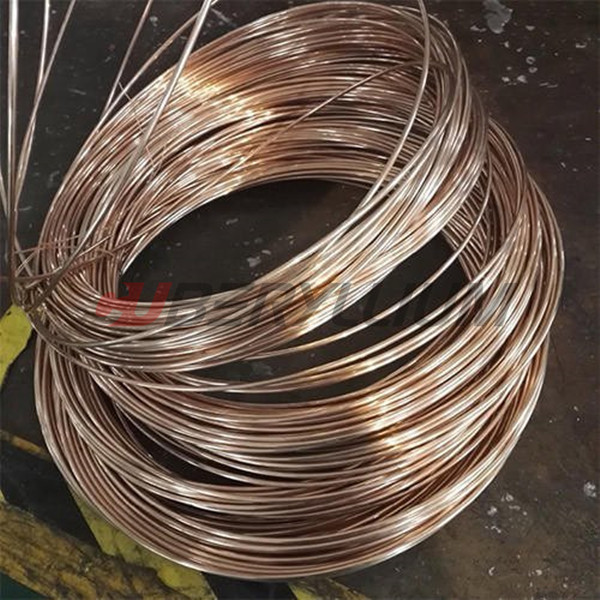

Product Photo:

CuBe2 Uns C17200 Tf00 Th04 Beryllium Copper Spring Wires High Strength 0







FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
