AERIS 1345 Beryllium Bronze Alloy Wire For Springs High Strength
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM® |
| Certification | ISO ROHS |
| Model Number | AERIS 1345 |
| Minimum Order Quantity | 30kg |
| Price | USD 30/KG |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10～15 Working days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | High Strength AERIS 1345 Beryllium Bronze Alloy Wire | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
|---|---|---|---|
| Diameter | 0.1-0.8mm | Temper | A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04) |
| Surface | Bright | Typical Application | Coil Springs |
| Shape For Available | Rod Or Coil Wire | Package | In Coils |
| ASTM | ASTM B197 | Application | For Springs |
| High Light | AERIS 1345 Beryllium Bronze Alloy Wire,Beryllium Bronze Alloy Wire For Springs,beryllium copper material Wire |
||
Product Description
High Strength AERIS 1345 Beryllium Bronze Alloy Wire For Springs
Product Description:
Name: High strength beryllium bronze alloy wire
Grade: AERIS 1345
Specification: Diameter 0.1-0.8mm
Surface: Bright
State: A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04)
Features: High strength and elestivity
Application: For springs

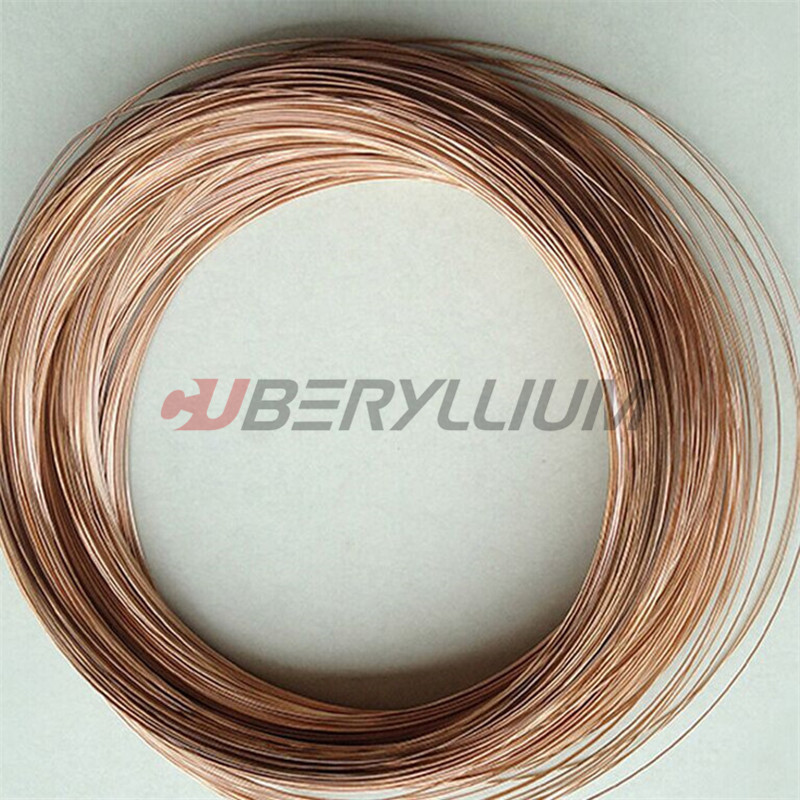

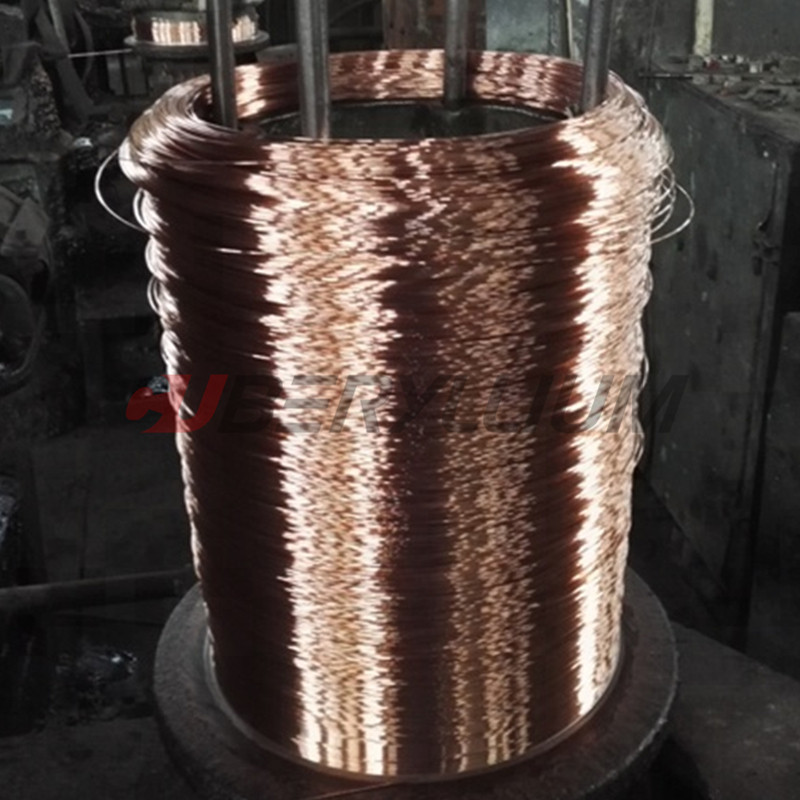

Detailed Images
Round Rod, Plates, Round Wires, Strips and other customized are available.
Size Information:
| Shape | Condition | Size |
| Straight Round Rod/Wires | Hard/Half Hard | Φ2-15mm |
| Straight Round Rod | Hard/Half Hard |
Φ3-90mm |
| Flat Bars/ Plates/ Sheets | Hard/Half Hard | a2-8*b2-150mm |
Chemical Composition of High Strength AERIS 1345 Beryllium Bronze Alloy:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C172 | C17200 | 1.80-2.00 | 0.20 min | 0.6 max | 0.02 Max | Balance |
Copper plus additions equal 99.5% Min.
Typical Physical Properties of High Strength AERIS 1345 Beryllium Bronze Alloy:
| Density (g/cm3): | 8.36 |
| Density before age hardening (g/cm3): | 8.25 |
| Elastic Modulus (kg/mm2 (103)): | 13.4 |
| Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
| Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
| Melting Range (°C): | 870-980 |
Mechanical and Electrical Properties of High Strength AERIS 1345 Beryllium Bronze Alloy Wire:
| Alloy | Temper (*) | Heat Treatment | Tensile Strength Mpa | Elongation percent | Electrical Conductivity percent IACS |
| CUBERYLLIUM 172 |
A | / | 400～580 | 30-60 | 15-19 |
| (TB00) | |||||
| 1/4 H | / | 570～795 | 3~25 | 15-19 | |
| (TD01) | |||||
| 1/2 H | / | 710～930 | 2~15 | 15-19 | |
| (TD02) | |||||
| 3/4 H | / | 840～1070 | 2~8 | 15-19 | |
| (TD03) | |||||
| H | / | 915～1140 | 1~6 | 15-19 | |
| (TD04) | |||||
| CUBERYLLIUM 172 |
AT | 3 hr 315℃ | 1050~1380 | 3 min | 22-28 |
| (TF00) | |||||
| 1/4 HT | 2 hr 315℃ | 1150~1450 | 2 min | 22-28 | |
| (TH01) | |||||
| 1/2 HT | 1.5hr 315℃ | 1200~1480 | 2 min | 22-28 | |
| (TH02) | |||||
| 3/4 HT | 1.0 hr 315℃ | 1250~1585 | 2 min | 22-28 | |
| (TH03) | |||||
| HT | 1.0hr 315℃ | 1300~1585 | 1 min | 22-28 | |
| (TH04) |
International Specification of High Strength AERIS 1345 Beryllium Bronze Alloy:
| Product Type | Temper Type |
| Bar | ASTM B196 |
| Military Mil-C-21657 | |
| Rod | ASTM B196 |
| Military Mil-C-21657 | |
| Wire | ASTM B197, AMS4725, SAE J461,463, RWMA Class 4 |
| European Standards | CuBe2, Alloy 25, BrB2, DIN.2.1247, CW101C to EN |
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by ASTM.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
