BeCu Copper Rods C17300-H 1.0mm Dia 2000mm L For Probe Pin

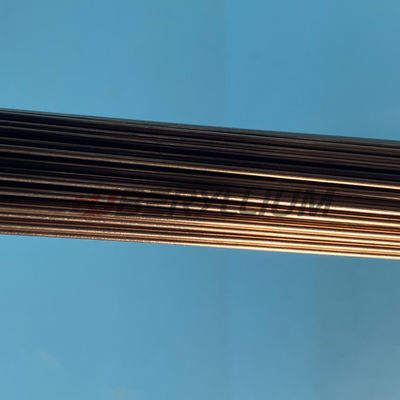

  • BeCu Copper Rods C17300-H 1.0mm Dia 2000mm L For Probe Pin

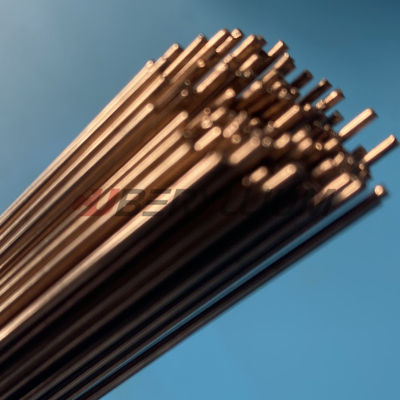

  • BeCu Copper Rods C17300-H 1.0mm Dia 2000mm L For Probe Pin
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number C17300
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name BeCu Copper Rods CUBERYLLIUM® Grade CUBERYLLIUM®-173
Standard ASTM B196, QQ-C-530 Surface Bright, Polish
State Hard(TD04) Typical Application Electrical And Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.36g/cm3 Length 2000mm
Diameter 1.0mm
High Light

BeCu Copper Rods

,

Probe Pin C17300 Beryllium Copper

,

Probe Pin Copper Rods
Leave a Message
Product Description

BeCu Copper Rods C17300-H 1.0mmdia. x 2000mmL Used For Probe Pin

Product Description:

Name: BeCu copper rods

Grade: C17300

End Product Form: Rods/ Bars

Standard: ASTM B196, QQ-C-530

State of product: H(TD04)

Processing: Seamless / Welding

Feature: With high strength and high conductivity

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: 1.0mmdia. x 2000mmL



What are the Properties of BeCu Copper?
Properties of BeCu:
Beryllium copper is a ductile, machinable, and weldable alloy.
BeCu has an excellent response to precipitation-hardening treatments.
BeCu has excellent thermal conductivity (62 Btu/ft-deg.F-H), and it is about 3-5 times more conducting than Tool steel.
It shows resistance to stress relaxation.
It is resistant to non-oxidizing acids such as hydrochloric acid (HCl) and carbonic acid (H2CO3), to plastic decomposition products, to abrasive wear, and galling.
It can be heat-treated for increased strength, durability, and electrical conductivity.
Beryllium copper displays the maximum strength (up to 1,400 MPa (200,000 psi)) of any copper-based alloy.



CUBERYLLIUM ®-173 also named -C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.



Chemical Composition of BeCu Copper C17300:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt
+ Nickel		 +Cobalt
+ Nickel
+ Iron		 Pb Copper
Cuberyllium-C173 C17300 1.80-2.00 0.20 min 0.6 max 0.2～0.6 Balance

Note: Copper plus additions equal 99.5% minimum.



Typical Physical Properties of BeCu Copper C17300:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25



Mechanical and Electrical Properties of BeCu Copper Rod C17300:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44



Product Photo:

BeCu Copper Rods C17300-H 1.0mm Dia 2000mm L For Probe Pin 0



FAQ:

Q1: What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
