CuBe2Pb Leaded Beryllium Copper Rods 1.0mm Dia 2000mm L Hard Temper

  • CuBe2Pb Leaded Beryllium Copper Rods 1.0mm Dia 2000mm L Hard Temper
  • CuBe2Pb Leaded Beryllium Copper Rods 1.0mm Dia 2000mm L Hard Temper
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number CuBe2Pb
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name CuBe2Pb Leaded Beryllium Copper Rods CUBERYLLIUM® Grade CUBERYLLIUM®-173
Standard ASTM B196 Surface Bright, Polish
Temper TD04 Typical Application Electrical And Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Diameter 1.0mm Length 2000mm
High Light

Leaded Beryllium Copper Rods

,

CuBe2Pb Beryllium Copper Rods

,

Hard Temper Beryllium Copper Rods
Leave a Message
Product Description

CuBe2Pb Leaded Beryllium Copper Rods 1.0mmDia. x 2000mmL Hard Temper

Product Description:

Product Name Beryllium copper rods
Grade CuBe2Pb
End Product Form Rods
Standard ASTM B196
State of product TD04
Processing Seamless / Welding
Feature With high strength and high conductivity
Specification

Dia 1.0mm;

Length 2000mm or according customers' requirement



Chemical Composition of CuBe2Pb Copper Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt
+ Nickel		 +Cobalt
+ Nickel
+ Iron		 Pb Copper
Cuberyllium-C173 C17300 1.80-2.00 0.20 min 0.6 max 0.2～0.6 Balance

Note: Copper plus additions equal 99.5% minimum.



Mechanical and Electrical Properties of CuBe2Pb Copper Rods:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elogation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44



What are the Properties of Beryllium Copper?
Properties of BeCu:
Beryllium copper is a ductile, machinable, and weldable alloy.
BeCu has an excellent response to precipitation-hardening treatments.
BeCu has excellent thermal conductivity (62 Btu/ft-deg.F-H), and it is about 3-5 times more conducting than Tool steel.
It shows resistance to stress relaxation.
It is resistant to non-oxidizing acids such as hydrochloric acid (HCl) and carbonic acid (H2CO3), to plastic decomposition products, to abrasive wear, and galling.
It can be heat-treated for increased strength, durability, and electrical conductivity.
Beryllium copper displays the maximum strength (up to 1,400 MPa (200,000 psi)) of any copper-based alloy.

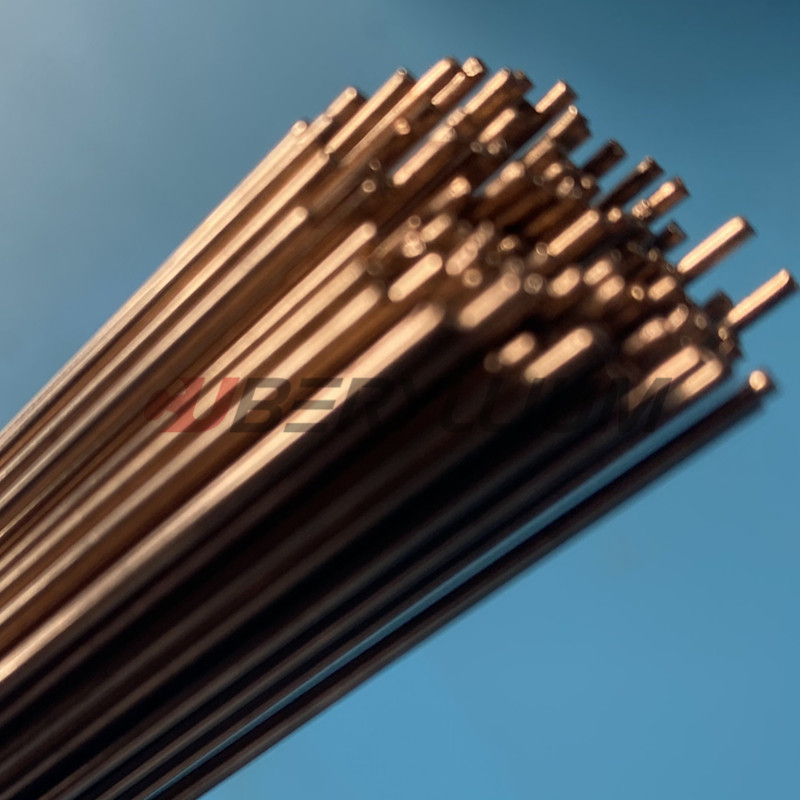

Product Photo:

CuBe2Pb Leaded Beryllium Copper Rods 1.0mm Dia 2000mm L Hard Temper 0



FAQ:

Q1: What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
