Cuberyllium Copper Rods C17300 1.3mm Dia X 2000mmL With Temper TD04
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM® |
| Certification | ISO ROHS |
| Model Number | C17300 |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10～15 Working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Cuberyllium Copper Rods C17300 | CUBERYLLIUM® Grade | CUBERYLLIUM®-173 |
|---|---|---|---|
| Standard | ASTM B196 | Surface | Bright, Polish |
| Temper | TD04 | Typical Application | Electrical And Industrial |
| Shape For Available | Rod&Bar | Brand | CUBERYLLIUM® |
| Diameter | 1.3mm | Length | 2000mm |
| High Light | C17300 Beryllium Copper Rods,Polish C17300 Beryllium Copper Rod,TD04 Temper 17300 Beryllium Copper |
||
Product Description
Cuberyllium Copper Rods C17300 1.3mmDia x 2000mmL With Temper TD04
Product Description:
| Product Name | Cuberyllium Copper Rod |
| Grade | C17300 |
| End Product Form | Rods |
| Standard | ASTM B196 |
| State of product | TD04 |
| Processing | Seamless / Welding |
| Feature | With high strength and high conductivity |
| Specification |
Dia 1.3mm; Length 2000mm or according customers' requirement |
CUBERYLLIUM® is one of the biggest manufactures of beryllium copper alloys in China. We specialize in producing high-quality performance Beryllium Copper Alloys for various industrial fields, all suitable for aviation and commercial applications.
Our beryllium copper alloys are produced with advanced production equipments, and comply with all major global standards: aerospace, defense, medical and commercial.
In addition, we can supply all beryllium copper alloys in various configurations and different variations to fit every need.
Chemical Composition of Cuberyllium Copper Alloys C17300:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Mechanical and Electrical Properties of Cuberyllium Copper Rods C17300:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | ＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

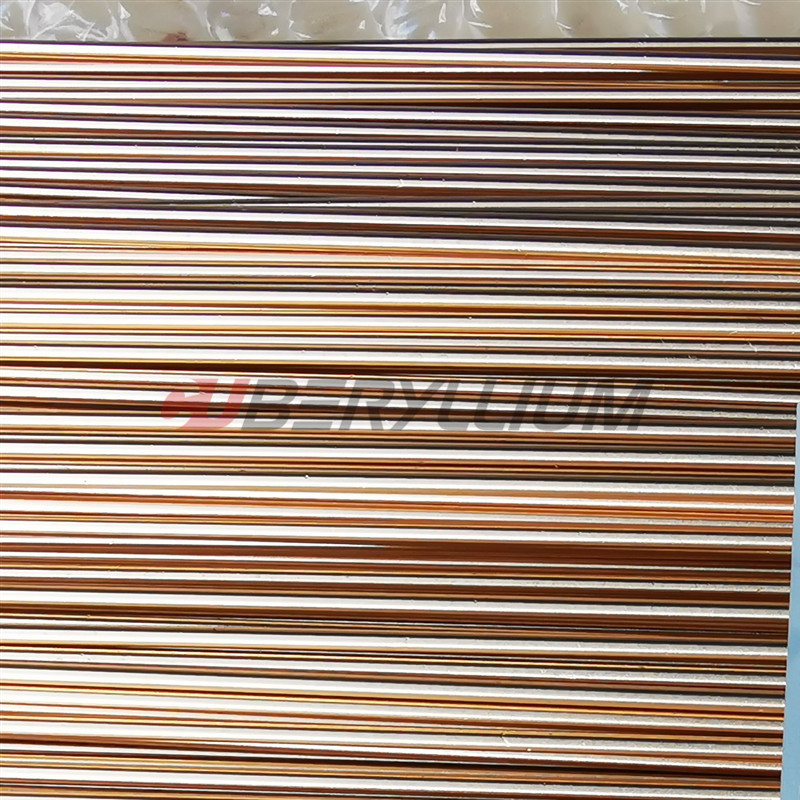

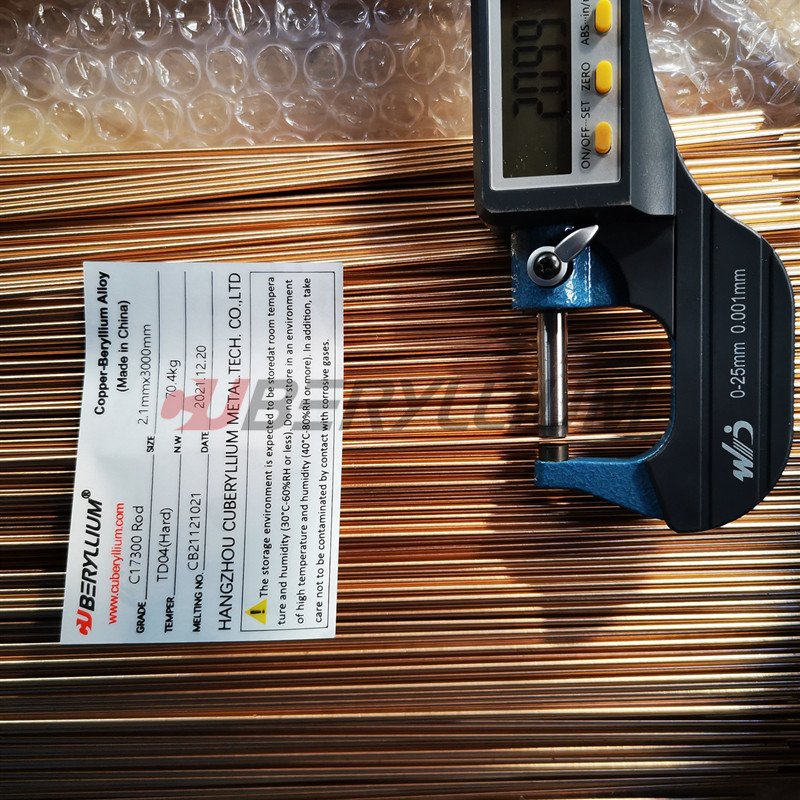

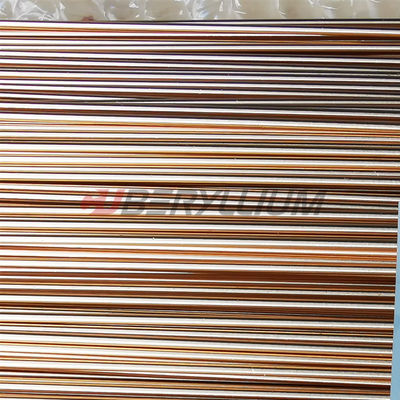

Product Photo:
Benefits of Cuberyllium Copper Alloys C17300:
- High stiffness for insertion applications
- Excellent in for anti-galling concerns
- Excellent machinability
- Good electrical and thermal conductivity
- Low friction properties
- Excellent corrosion and erosion resistance
- Non-magnetic
FAQ:
Q1: What’s the advantages the Beryllium Copper of CUBERYLLIUM®?
A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.
2: We are the only one who melting by Vacuum semi-Continuous Furnace.
3: Surface further polishing for top clients.
Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.
Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
