Qbe2.0 Beryllium Copper Coil 0.5mm For Electronic Electrical Equipment
Place of Origin | China |
---|---|
Brand Name | CUBERYLLIUM® |
Certification | ISO,SGS |
Model Number | Qbe2.0 |
Minimum Order Quantity | 30kg |
Price | USD 30/KG |
Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
Delivery Time | 10~15 Working days |
Payment Terms | L/C, T/T, Western Union |
Supply Ability | 50T/Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Copper Wire Coil Qbe2.0 | CUBERYLLIUM® Grade | CUBERYLLIUM ®-Qbe2 |
---|---|---|---|
Diameter | 0.5mm | State | Soft. Hard |
Surface | Bright | Typical Application | For Electronic And Electrical Equipment |
Shape For Available | Rod Or Coil Wire | Package | In Coils |
Standard | ГОСТ 15834 – 77 | ||
High Light | Qbe2.0 Beryllium Copper Coil,Beryllium Copper Coil 0.5mm,beryllium alloys |
Copper Wire Coil Qbe2.0 Diameter 0.5mm For Electronic And Electrical Equipment
Product Description:
Name: Copper wire coil
Grade: Qbe2.0
Specification: Diameter 0.5mm
Surface: Bright
State: Soft, Hard
Features: High thermal and electrical conductivity
Application: For electronic and electrical equipment
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master alloy: CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
Typical Uses For Qbe2.0 Beryllium Copper Alloy:
CUBERYLLIUM ®-Qbe2 also named CuBe2 Beryllium Copper, is the most commonly utilized copper beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys.
1: Electronic and electrical equipment;
2: Plastic and optical molds cannot be used for soil cooling, mold cores, punches, and hot runner cooling systems where water cannot pass;
3: High precision electronics;
4: Communication preparation equipment;
5: Instrumentation;
6: Aerospace;
7: Car manufacturer
Chemical Composition of High-performance Qbe2.0 Beryllium Bronze Alloy:
CUBERYLLIUM® Brand |
Gost- Number |
Beryllium | Al | Ni | Fe | Cu | Si |
Cuberyllium-Qbe2 | Qbe2 | 1.80-2.10 | 0.15 max | 0.2~0.5 |
0.15 max |
Rest. |
0.15 max |
Copper plus additions equal 99.5% Min.
Typical Physical Properties of High-performance Qbe2.0 Beryllium Bronze Alloy:
Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980
Mechanical and Electrical Properties of High-performance Qbe2.0 Beryllium Bronze Wires:
Name | Temper | Thickness (mm) |
Tensile Strength | Hardness | Elongation (min) |
MPa | HV | Percent | |||
Qbe2 | Soft | <0.15 | >390 | <130 | >30% |
0.15~0.25 | 390~590 | ||||
>0.25 | 390~590 | ||||
Hard | <0.15 | >590 | >170 | >3% | |
0.15~0.25 | 590~880 | ||||
>0.25 | 640~930 | ||||
After Ageing (Soft) |
<0.15 | >1080 | >330 | >2% | |
0.15~0.25 | 1080~1470 | ||||
>0.25 | 1130~1470 | ||||
After Ageing (Hard) |
<0.15 | >1080 | >360 | >1.5% | |
0.15~0.25 | 1130~1570 | ||||
>0.25 | 1170~1570 |
Standard of Russia Market of High-performance Qbe2.0 Beryllium Bronze Alloy:
End Product | Specification |
Chemistry | ГОСТ 18175 – 78 |
Wire | ГОСТ 15834 – 77 |
Rod | ГОСТ 15835-70 |
Strip&Sheet | ГОСТ 1789-70 |
Key Technology of Beryllium Copper(Heat treatment)
Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.
Solution Annealing
For the typical alloy CuBe2Pb) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

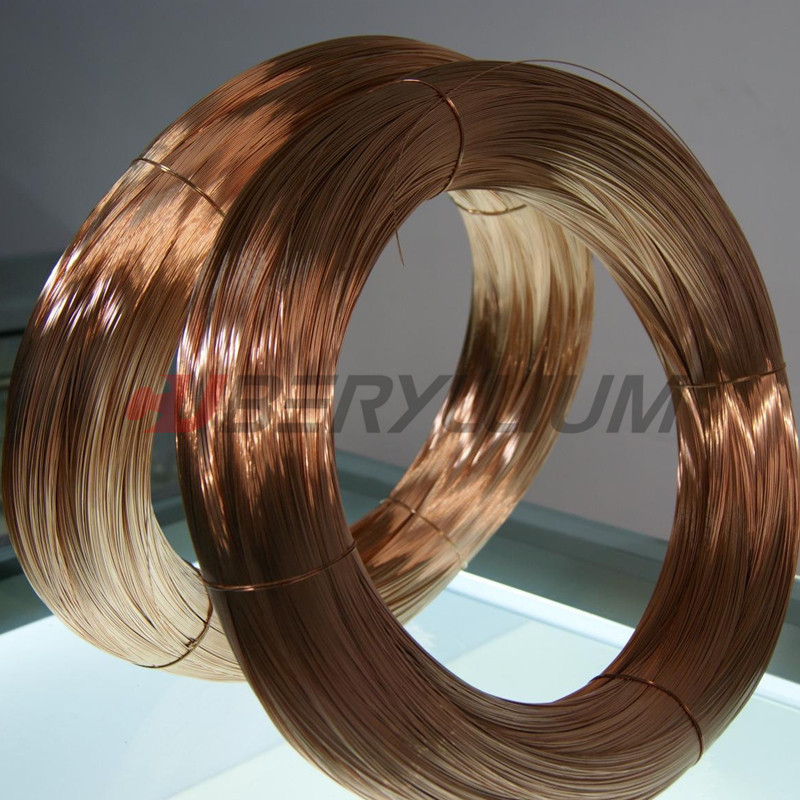

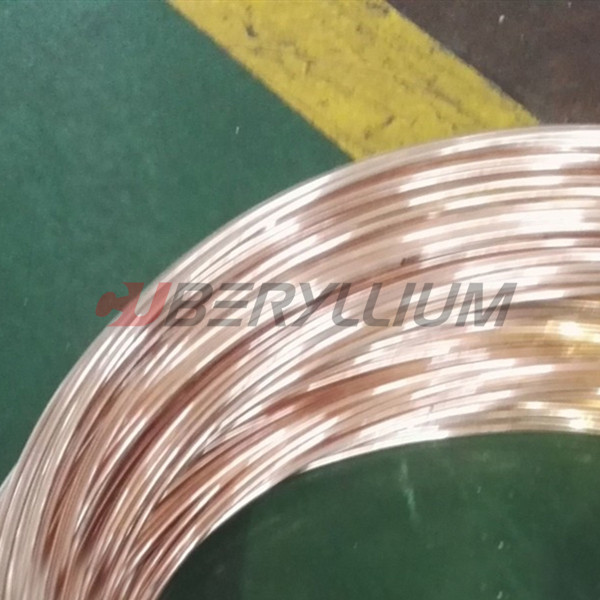

Product Photo:
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
