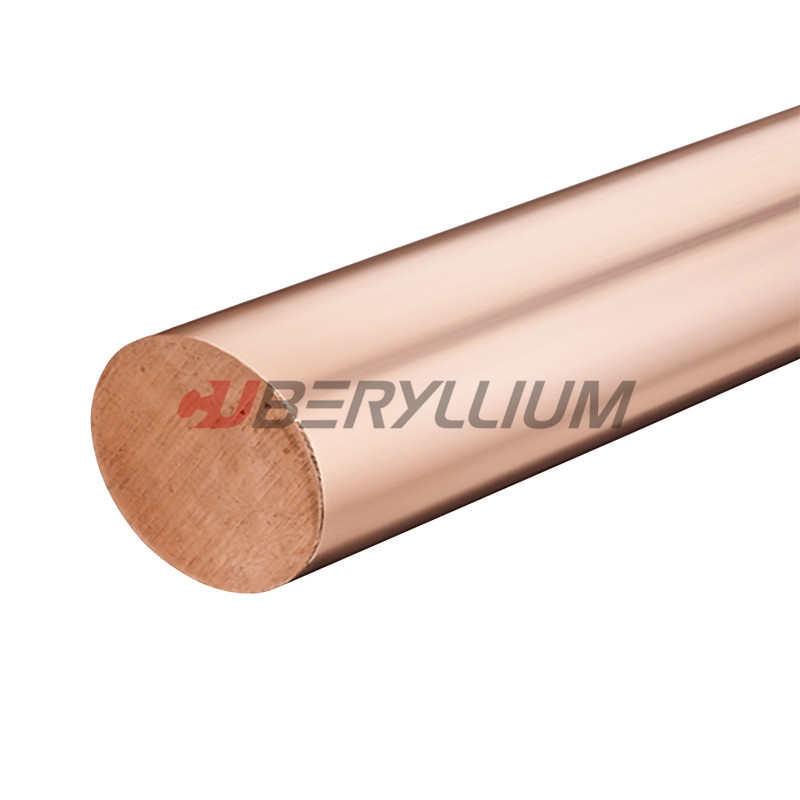

Material Cube2pb CDA 173 C17300 Beryllium Copper Rod 0.2%-0.6% Lead

CuBe2Pb / C17300 (CDA 173) Beryllium Rods Contains 0.2%-0.6% Of Lead

Product Description:

Name: Beryllium rods

Grade: CuBe2Pb / C17300 (CDA 173)

End Product Form: Rods/ Bars

Standard: ASTM B196, QQ-C-530

State of product: A(TB00),H(TD04),AT(TF00),HT(TH04)

Processing: Seamless / Welding

Feature: With high strength and high conductivity

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: Length: according customers' requirement

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.

Beryllium copper has its reasonable share of common names. You will listen referred to as BeCu, Copper Beryllium, Beryllium Bronze, and Spring Copper. Anytime you hear those terms, they're in reference to Beryllium Copper. Beryllium round bars are accessible as high strength and high conductivity alloys.

Chemical Composition of CuBe2Pb / C17300 (CDA 173) Beryllium Copper Alloys:

Note: Copper plus additions equal 99.5% minimum.

Typical Physical Properties of CuBe2Pb / C17300 (CDA 173) Beryllium Copper Alloys:

Density: 8.36g/cm3

Density before age hardening: 8.25g/cm3

Melting Range: 870~980℃

Elastic Modulus((kg/mm2 (103)): 13.4

Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6

Thermal Conductivity(cal/(cm-s-°C)): 0.25

Mechanical and Electrical Properties of CuBe2Pb / C17300 (CDA 173) Beryllium Rods:

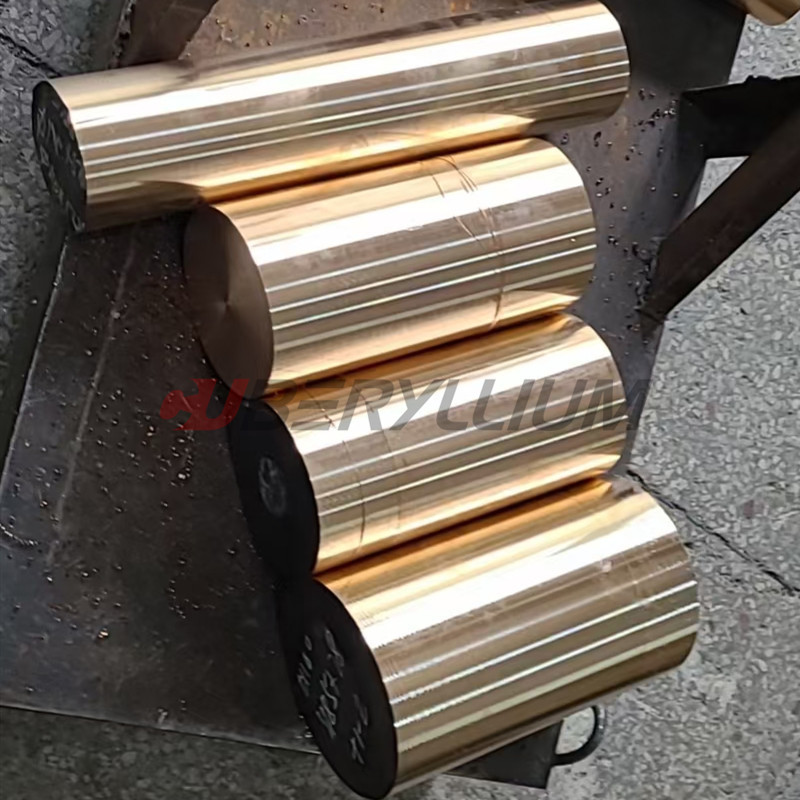

Product Photo:

Benefits of CuBe2Pb / C17300 (CDA173) Beryllium Copper Alloys:

• High stiffness for insertion applications
• Excellent in for anti-galling concerns
• Excellent machinability
• Good electrical and thermal conductivity
• Low friction properties
• Excellent corrosion and erosion resistance
• Non-magnetic

Typical Applications for CuBe2Pb / C17300 (CDA 173) Beryllium Copper Alloys:

Electrical Industry: Switch Parts, Relay parts, RF Coaxial Connector, Contact Bridges, Electrical Connectors, Fuse Clips, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades.
Industrial: Bushings, Welding Equipment, Non-Sparking Safety Tools, Shafts, Springs, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Bellows, Electrochemical Springs, Flexible Metal Hos

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil.

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
