CW102C Beryllium Copper Wires 1/4 Hard ASTM B197 QQ C 530 EN 12166

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | CW102C Free Cutting Beryllium Copper Wires | Diameter | 0.05-3mm |
---|---|---|---|
Standard | ASTM B197, QQ-C-530, EN12166 | State | A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04) |
Surface | Bright | Machining Property | Good |
Typical Application | Electrical And Industrial | Shape For Available | Rod Or Coil Wire |
Brand | CUBERYLLIUM® | Safe Handling | No Special Health Risk |
High Light | CW102C Beryllium Copper Wires 1/4 Hard,CW102C Beryllium Copper Wires EN 12166,cube 2 copper alloy Wire |
CW102C Free Cutting Beryllium Copper Wires By Standard ASTM B197, QQ-C-530, EN 12166
Product Description:
Product Name: Free cutting beryllium copper wires
Grade: CW102C
State: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)
Available Products(Forms): round wires, flat wires, coils
Diameter: 0.05-0.3mm
Brand: CUBERYLLIUM®
CW102C Free Cutting Beryllium Copper Wires International Specification:
Wires: ASTM B197, QQ-C-530, EN 12166
European Standards: CuBe2Pb, Alloy M25, UNS.C17300, DIN.2.1248, CW102C to EN
CUBERYLLIUM ®-173 also named -C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.
Chemical Composition of CW102C Free Cutting Beryllium Copper Alloys:
CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
Cobalt + Nickel + Iron |
Pb | Copper |
Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2~0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Typical Physical Properties of CW102C Free Cutting Beryllium Copper Alloys:
CUBERYLLIUM® | US Customary | Metric |
Melting Point - Liquidus | 1800 F | 982 C |
Melting Point - Solidus | 1590 F | 866 C |
Density | 0.298 lb/in3 at 68 F | 8.25 gm/cm3 @ 20 C |
Specific Gravity | 8.26 | 8.26 |
Electrical Resistivity | 46.20 ohms-cmil/ft @ 68 F | 7.68 microhm-cm @ 20 C |
Electrical Conductivity | 22 %IACS @ 68 F | 0.129 MegaSiemens/cm @ 20 C |
Thermal Conductivity | 62 Btu . ft/(hr . ft2 . oF)at 68F | 107.3 W/m . oK at 20 C |
Modulas of Elasticity in Tension | 18500 ksi | 128000 MPa |
Modulus of Rigidity | 7300 ksi | 50330 MPa |
Specific Heat Capacity | 0.090 Btu/lb/å¡F at 68 F | 377.1 J/kg . å¡K at 293 K |
Mechanical and Electrical Properties of CW102C Free Cutting Beryllium Copper Wires:
Alloy | Temper (*) | Heat Treatment | Tensile Strength ksi | Elongation percent | Electrical Conductivity percent IACS |
CUBERYLLIUM 173 |
A | / | 400~580 | 30-60 | 15-19 |
(TB00) | |||||
1/4 H | / | 570~795 | 3~25 | 15-19 | |
(TD01) | |||||
1/2 H | / | 710~930 | 2~15 | 15-19 | |
(TD02) | |||||
3/4 H | / | 840~1070 | 2~8 | 15-19 | |
(TD03) | |||||
H | / | 915~1140 | 1~6 | 15-19 | |
(TD04) | |||||
CUBERYLLIUM 173 |
AT | 3 hr 315 | 1050~1380 | 3 min | 22-28 |
(TF00) | |||||
1/4 HT | 2 hr 315 | 1150~1450 | 2 min | 22-28 | |
(TH01) | |||||
1/2 HT | 1.5hr 315 | 1200~1480 | 2 min | 22-28 | |
(TH02) | |||||
3/4 HT | 1.0 hr 315 | 1250~1585 | 2 min | 22-28 | |
(TH03) | |||||
HT | 1.0hr 315 | 1300~1585 | 1 min | 22-28 | |
(TH04) |
Delivery & Payment & After-sale Service
Delivery: |
1.Express by air (UPS,DHL,FedEx,TNT,EMS etc.) 2.Ship by sea. 3.Customer's requirement is welcome. |
Payment: |
1.T/T payment,L/C,D/A,D/P, 2.Paypal,Escrow. 3.Western Union,MoneyGram. |
After-sale Service | Nice after-sale service will be offered and it is a good tradition in our factory. |

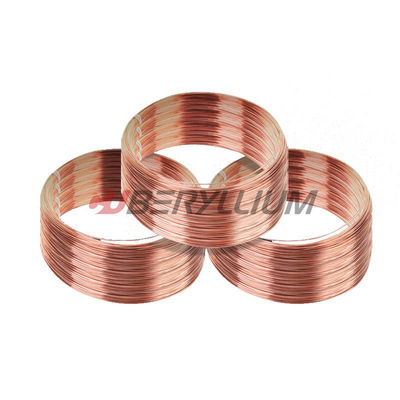

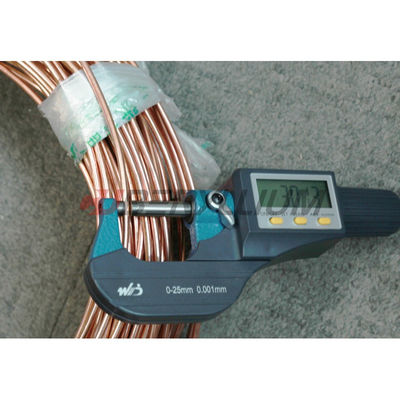

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.
Solution Annealing
For the typical alloy CuBe2Pb) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
