CuBe2Pb Leaded Beryllium Copper Wires 1/2 Hard 0.05-0.3mm

CuBe2Pb Leaded Beryllium Copper Alloys Wires Diameter 0.05-0.3mm Used In Electrical Industry

Product Description:

Product Name: Leaded beryllium copper alloys wires

Grade: CuBe2Pb

State: A(TB00),1/4 H(TD01),1/2 H(TD02),3/4H(TD03),H(TD04)

Available Products(Forms): round wires, flat wires, coils

Diameter: 0.05-0.3mm

Brand: CUBERYLLIUM®

CuBe2Pb Leaded Beryllium Copper Alloys Wire International Specification:

Wires: ASTM B197, QQ-C-530

European Standards: CuBe2Pb, Alloy M25, UNS.C17300, DIN.2.1248, CW102C to EN

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.

CUBERYLLIUM ®-173 also named -C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.

Chemical Composition of CuBe2Pb Leaded Beryllium Copper Alloys:

Note: Copper plus additions equal 99.5% minimum.

Typical Physical Properties of CuBe2Pb Leaded Beryllium Copper Alloys:

Mechanical and Electrical Properties of CuBe2Pb Leaded Beryllium Copper Wires:

Service We Can Offer You:

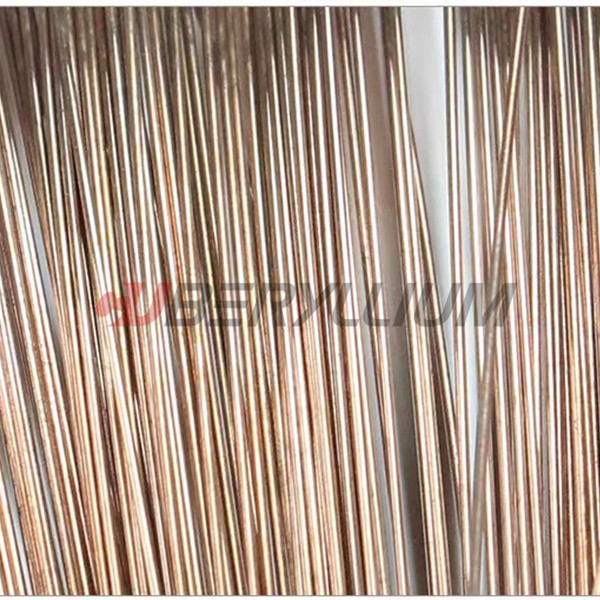

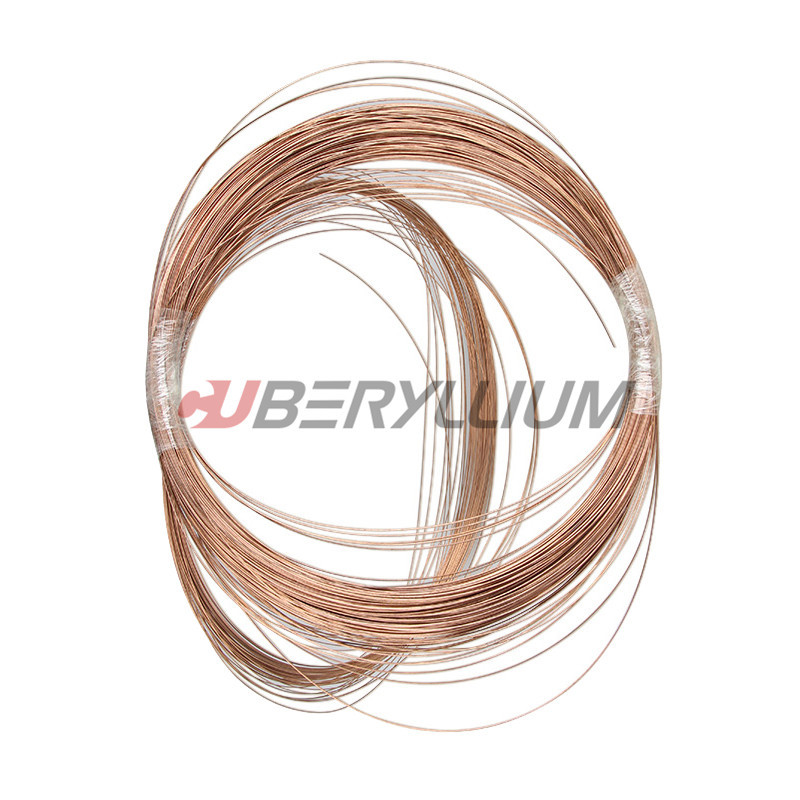

Product Photo:

Key Technology of Beryllium Copper(Heat treatment)

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

Solution Annealing

For the typical alloy CuBe2Pb) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
