EN.CW110C Nickel Beryllium Copper Round Rod TD02 For Washers Fasteners

  • EN.CW110C Nickel Beryllium Copper Round Rod TD02 For Washers Fasteners
  • EN.CW110C Nickel Beryllium Copper Round Rod TD02 For Washers Fasteners
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number C17510
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name EN.CW110C Nickel Beryllium Copper Round Rod TD02 For Washers, Fasteners Grade C17510
Standard ASTM B441,937 Diameter 8mm~30mm
Application Springs, Thermal Transfer Plates, Welding Equipments Density 8.83g/cm3
Brand CUBERYLLIUM® Temper TD02,TH01
Modulus Of Elasticity Tension 133Gpa Shape For Available Rod, Bars, Round Bars
Specification All Sizes Length 0.5~3m
High Light

Nickel Beryllium Copper Round Rod

,

Cuberyllium Copper Rod

,

Fasteners Copper Round Rod
Leave a Message
Product Description

EN.CW110C Nickel Beryllium Copper Round Rod TD02 For Washers, Fasteners

Product Description:

Product Name Cuberyllium Copper Rod
Grade C17510
End Product Form Rods
Standard ASTM B441,937
State of product TD02,TH01
Processing Bending, Welding
Feature With high strength and high conductivity
Specification

Dia 8~30mm;

Length 0.5~3m or according customers' requirement



Chemical Composition of Beryllium Copper C17510 Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Nickel Cobalt+Nickel Cobalt+Nickel+Iron Lead Copper
Cuberyllium-C751 C17510 0.20 ~ 0.60% 1.40 ~ 2.20% - - - Balance




Mechanical and Electrical Properties of Beryllium Copper C17510 Rods:

Temper(*) Diameter Heat Treatment

Tensile Strength

Mpa

Elongation Percent

(Min)

Electrical Conductivity

Percent IACS

Hardness Rockwell

B Scale
A(TB00) ALL SIZE / 240~380 20~40 20~35 B20~50
H(TD04) ALL SIZE / 440~550 10~20 20~35 B20~30
AT(TF00) ALL SIZE 3 hr 480℃ 680~900 10~30 45~60 B92~100
HT(TH04 ALL SIZE 2 hr 480 ℃ 750~960 5~30 48~60 B95~102




Applications:

1)Electrical Industry: Fuse Clips, Switch Parts, Relay parts, Connectors, Spring Connectors, Instruments Parts
2)Fasteners: Washers, Fasteners
3)Industrial: Springs, Thermal Transfer Plates, Welding Equipments, High Flux Electromagnets, Die–Casting Plunger Tips



Typical Physical Properties of Beryllium Copper C17510 Alloys:

Density 8.83 g/cm3
Density before age hardening 8.75 g/cm3
Melting Range 1000~1070 ℃
Elastic Modulus 14.10 (kg/mm2 (103)
Thermal Expansion Coefficient 18 x 10 -6 20 °C to 200 °C m/m/°C
Thermal Conductivity 0.57 cal/(cm-s-°C)

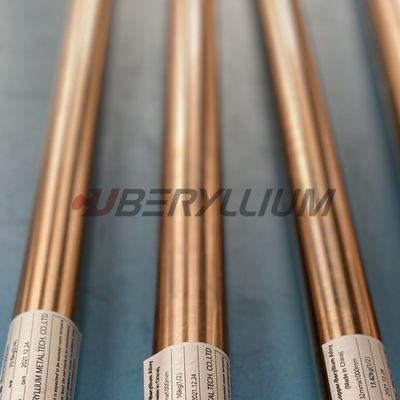

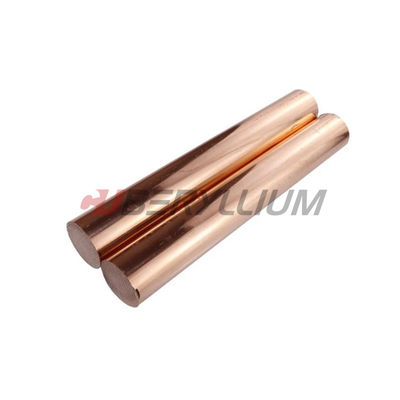

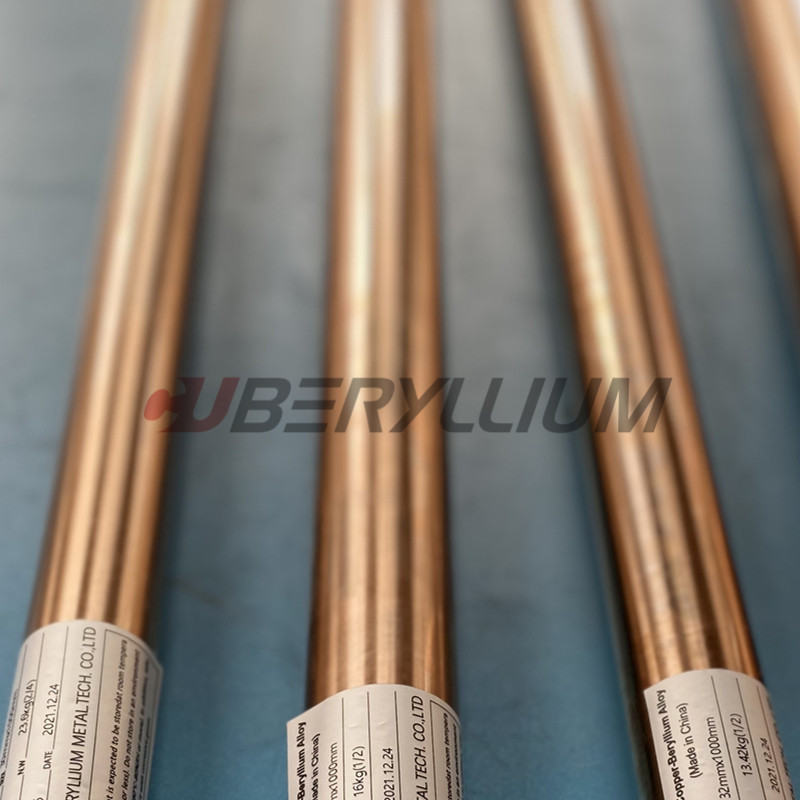

Product Photos:

EN.CW110C Nickel Beryllium Copper Round Rod TD02 For Washers Fasteners 0



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



Beryllium copper has its reasonable share of common names. You will listen referred to as BeCu, Copper Beryllium, Beryllium Bronze, and Spring Copper. Anytime you hear those terms, they're in reference to Beryllium Copper. Beryllium round bars are accessible as high strength and high conductivity alloys.



CUBERYLLIUM ®-751 also named -C17510 (CDA 1751) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



More Products:

More range of copper and copper alloys, in full series of shapes: Sheet, Bar, Tubes, Strips and Wire list as below:

C17000/170 (CuBe1.7, 2.1245, Alloy165)
C17200/172 (CuBe2, 2.1247, Alloy25)
C17300/173 (CuBe2Pb, 2.1248, AlloyM25)
C17500/175 (CuCo2Be, 2.1285, Alloy10)
C17510/1751 (CuNi2Be, 2.0850, Alloy3)



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: Why you melting by Vacuum semi-Continuous Furnace?
A2:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement.

Q3:Could you produce Beryllium Copper strip by Mill Hardened process?
A3:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
