C17510 Copper Alloy Block Beryllium Copper Astm B534 C17510 Cond Tf00 Dia 1.5mm

Place of Origin China
Certification ISO ROHS
Model Number C17510
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Dia.1.5mm C17510 Block Diameter Range 0.08mm~6mm
ASTM ASTM B534 Temper Hard
Surface Bright Heat Treatment 3 Hr 315C-330C
Typical Application Plastic Moulds Shape For Available Block&plant&Disc
High Light

c17510 copper alloy Dia 1.5mm


beryllium copper astm b534 c17510 cond tf00


beryllium copper block

Leave a Message
Product Description

CUBERYLLIUM-C751 (C17510) Dia20mm Rod by ASTM B441 for Corrosion resistant components


CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.


CUBERYLLIUM ®-751 also named -C17510 (CDA 751) Alloy 751 is a high conductivity copper beryllium alloy used in applications requiring a combination of high thermal conductivity with moderate strength. Alloy 751, supplied with certified mechanical properties, is fully heat treated and no additional treatment is required. Alloy 751 is nonmagnetic and provides excellent resistance to thermal fatigue.



Chemical Composition:

CUBERYLLIUM® Brand UNS-Number Beryllium Nickel Fe Si Copper
Cuberyllium-C751 C17510 0.20-0.60 1.4~2.2 <0.1 <0.2 Balance


Related material specifications

ASTM B441 ASTM B534 SAE J461. SAE J463


Typical Physical Properties:

Coefficient of Thermal Expansion 9.8 . 10-6 per oF (68-392 F) 17.6 . 10 6 per C (20-200 C)
Density 0.317 lb/in3 @ 68 F 8.77 gm/cm3 @ 20 C
Electrical Conductivity 48 %IACS @ 68 F 0.281 MegaSiemens/cm @ 20 C
Electrical Conductivity 45 %IACS @ 68 F 0.263 MegaSiemens/cm @ 20 C
Electrical Resistivity 22.8 ohms-cmil/ft @ 68 F 3.79 microhm-cm @ 20 C
Melting Point Liquid US 1955 F 1068 C
Melting Point Solid US 1885 F 1029 C
Modulas of Elasticity in Tension 19200 ksi 132400 MPa
Modulas of Rigidity 7500 ksi 51710 MPa
Specific Gravity 8.77 8.77
Specific Heat Capacity 0.1 Btu/lb/F @ 68 F 419.0 J/kg . K at 293 K
Thermal Conductivity 120.0 Btu . ft/(hr . ft2 . F) @ 68 F 207.7 W/m . K at 20 C



Typical Applications

• Bearings and bushes
• Plastic moulds
• Corrosion resistant components
• Current carrying springs
• Welding electrodes
• Electrical and electronic connectors

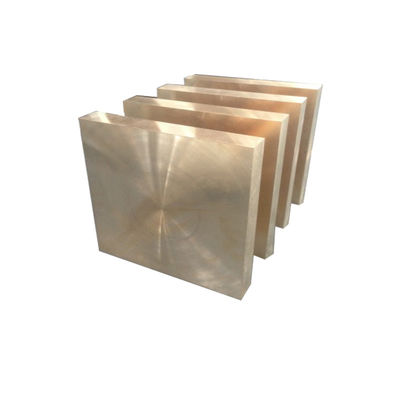

Product Photo:

C17510 Copper Alloy Block Beryllium Copper Astm B534 C17510 Cond Tf00 Dia 1.5mm 0




Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended

Corrosion Resistance

Alloy 751’s corrosion resistance is similar to pure copper. It resists corrosion in sea water, most organic solutions, non- oxidizing acids, and dilute alkalis. Alloy 751 is not subject to hydrogen embrittlement, and it resists stress corrosion cracking in sulfide and chloride solutions. Alloy 751 is not recommended for use with ammonium hydroxide or strongly oxidizing acids.


Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
