RWMA Class 3 / C17510 Beryllium Copper Alloy Plate / Sheet 2m Length

Place of Origin China
Certification ISO ROHS
Model Number RWMA Class 3/ C17510
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Alloy Plate/Sheet Length 2m
ASTM ASTM B534 Temper TF00
Surface Bright Heat Treatment 3 Hr 315C-330C
Typical Application Plastic Moulds Application Industry
High Light

Class 3 C17510 Beryllium Copper


2m Plate C17510 Beryllium Copper


ASTM B534 C17510 Beryllium Copper

Leave a Message
Product Description

RWMA Class 3/ C17510 Beryllium Copper Alloy Plate/Sheet 2m Length Plate

Product Normal Description:

Product Name: Beryllum copper plate/sheet

Grade: RWMA Class 3/C17510

Standard: ASTM B534

Plate Length: 2m

State: TF00

Typical Application: Industry

Product Brand: CUBERYLLIUM®


Chemical Composition of RWMA Class 3/ C17510 Beryllium Copper Alloy:

CUBERYLLIUM® Brand UNS-Number Beryllium Nickel Fe Si Copper
Cuberyllium-C751 C17510 0.20-0.60 1.4~2.2 <0.1 <0.2 Balance

Note: Copper plus additions equal 99.5% Minimum.


Typical Physical Properties of RWMA Class 3/ C17510 Beryllium Copper Alloy:

Coefficient of Thermal Expansion 9.8 . 10-6 per oF (68-392 F) 17.6 . 10 6 per C (20-200 C)
Density 0.317 lb/in3 @ 68 F 8.77 gm/cm3 @ 20 C
Electrical Conductivity 48 %IACS @ 68 F 0.281 MegaSiemens/cm @ 20 C
Electrical Conductivity 45 %IACS @ 68 F 0.263 MegaSiemens/cm @ 20 C
Electrical Resistivity 22.8 ohms-cmil/ft @ 68 F 3.79 microhm-cm @ 20 C
Melting Point Liquid US 1955 F 1068 C
Melting Point Solid US 1885 F 1029 C
Modulas of Elasticity in Tension 19200 ksi 132400 MPa
Modulas of Rigidity 7500 ksi 51710 MPa
Specific Gravity 8.77 8.77
Specific Heat Capacity 0.1 Btu/lb/F @ 68 F 419.0 J/kg . K at 293 K
Thermal Conductivity 120.0 Btu . ft/(hr . ft2 . F) @ 68 F 207.7 W/m . K at 20 C


Typical Applications of RWMA Class 3/ C17510 Beryllium Copper Alloy:

• Bearings and bushes
• Plastic moulds
• Corrosion resistant components
• Current carrying springs
• Welding electrodes
• Electrical and electronic connectors

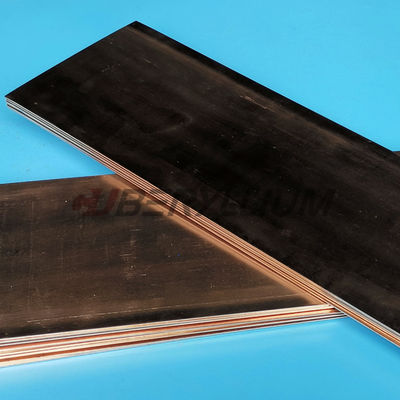

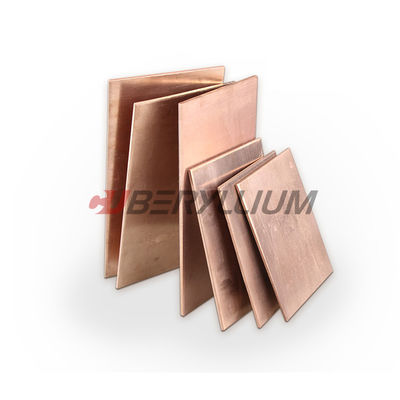

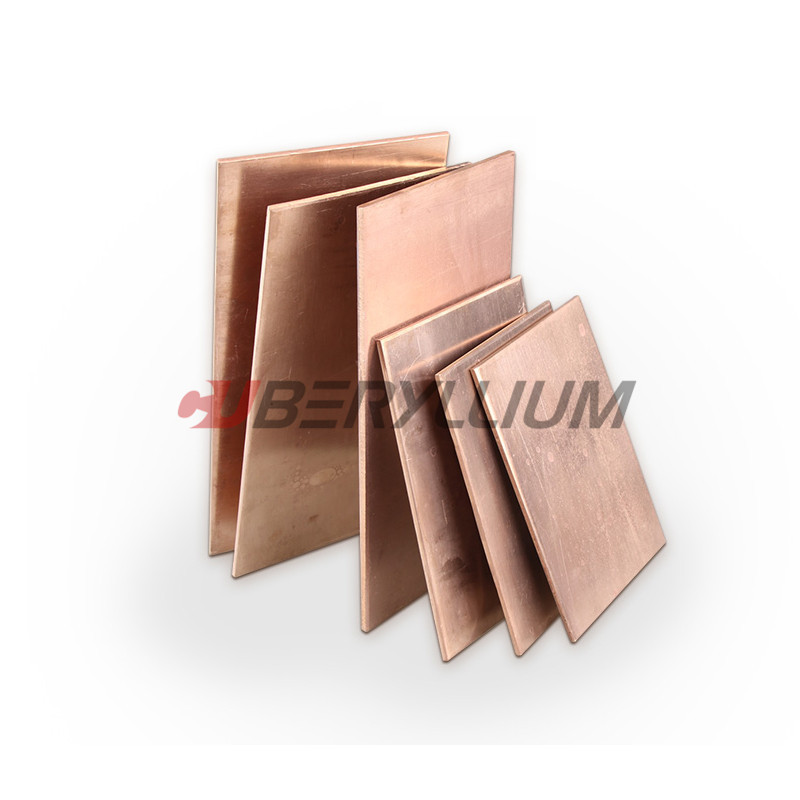

Product Photo:

RWMA Class 3 / C17510 Beryllium Copper Alloy Plate / Sheet 2m Length 0



What is Beryllium Copper?
Beryllium copper (BeCu), also known as copper beryllium (CuBe), beryllium bronze and spring copper, is a copper alloy with 0.5—3% beryllium and sometimes other elements. It has superb metalworking, framing and machining properties. It has many specialized applications in electrical industry, industrail and aviation.

The small proportion of beryllium to copper makes a group of high copper amalgams with quality as high as compound steel. The first of the two families, C17200 and C17300, incorporates high quality with moderate conductivity, while the subsequent family, C17500 and C17510, offers high conductivity with moderate quality.


Where is Beryllium Copper used?
Beryllium copper is a non-ferrous composite utilized in springs, spring wire, load cells, and different parts that must hold their shape under rehashed anxiety. It has high electrical conductivity and is utilized in low-flow contacts for batteries and electrical connectors.

Other Uses:
Ultra-low temperature cryogenic equipment, such as dilution refrigerators, because of its mechanical strength and relatively high thermal conductivity in this temperature range
Servicing magnetic resonance imaging (MRI) machines, where high strength magnetic fields make use of ferrous tools dangerous, and where magnetic materials in the field can disturb the image.
It has important applications in oilfield tools, aerospace landing gears, robotic welding, and mold making applications.



Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
