C15760 Dispersion Strengthened Copper Rods Al2O3 For Electrode Cap Use
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM |
| Certification | ISO,SGS |
| Model Number | C15760 |
| Minimum Order Quantity | 100kgs |
| Price | 20USD |
| Packaging Details | Packed into wooden case |
| Delivery Time | Usually 10-15 days |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 200T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Dispersion Strengthened Copper Rods | Grade | C15760 |
|---|---|---|---|
| Specification | Custom Diameter & Sizes, Random Mill Lengths | Advantage | With High Strength And High Conductivity |
| Safe Handling | No Special Health Risk | Machining Property | Good |
| Density G/cm³ | 8.81 | Cu(Min) | Standard |
| Export To | All Over The World | ||
| High Light | Dispersion Strengthened Copper Rods,C15760 Strengthened Copper Rods,Electrode Cap Strengthened Copper Rods |
||
Product Description
C15760 Dispersion Strengthened Copper Rods Al2O3 For Electrode Cap Use
Product Normal Description:
| Product Name | Dispersion strengthened copper rods |
|---|---|
| Model No. | C15760 |
| Product Specification: | Custom specification is available upon request. |
| Available Products: | Round rods, bars, flat products |
| Delivery Time: | Usually within 10~15 days |
| Package: | Packed in woodencases |
| Brand Name: | CUBERYLLIUM® |
About CUBERYLLIUM®:
Hangzhou Cuberyllium Metal Technology Co.,Ltd. specialized in supplying beryllium copper alloys, high copper alloys, casting copper alloys, copper foil and other copper alloys. Our products have broadly been used in resistance welding, plastic injetion mold, aviation, shipbuilding, military industry, metallurgy, electronics industry and so on. We strive to offer high quality with competitive price due to our advanced technology and equipment.
You may interest in these products:
Beryllium Copper Alloys: C17200. C17300, C17510, C17500
Chromium Zirconium Copper Alloys: C18000, C18150, C18200
Dispersion Strengthened Copper Alloys: C15715, C15725, C15760
All product shapes could be made according customers' requirement:
1, Round rods, bars
2, Strips, coils
3, Tubes
4, Wires
5, Rings
6, Plates
If you have any inquiry, plz kindly contact with us, we will supply you professional technical support.
Chemical Composition of C15760 Dispersion Strengthened Copper Alloy:
Product Grade: CUBERYLLIUM ®-C15760 (RWMA Class 20)
| Aluminum | 0.60% by wt. as Al₂O₃ |
| Cu: | Balance |
Typical Physical Properties of C15760 Dispersion Strengthened Copper Alloy:
| Melting Point | 1083°C | 1981°F |
| Density | 8.81 g/cm3 at 20°C | 0.318 lbs./in3 at 68°F |
| Electrical Conductivity (σ) | 0.452 μ Ω-cm at 20°C | 78% IACS at 68°F |
| Thermal Conductivity (K) | 322 W/m/K at 20°C | 186 Btu/ft2/ft/hr/°F at 68°F |
| Electrical Resistivity (ρ) | 2.21 μ Ω-cm at 20°C | 13.29 Ω circular-mil/ft. at 68°F |
| Coefficient of Thermal Expansion | 16.6 μm/m/°C (20-150°C) | 9.2 μin/in/°F (68-300°F) |
| Modulus of Elasticity (Tension) (λ) | 130 Gpa | 19 x 10⁶ psi |
Applications of C15760 Dispersion Strengthened Copper Alloy:
Cuberyllium C15760(RWMA Class 20) is primarily designed for applications requiring the highest elevated temperature strength coupled with relatively high electrical and thermal conductivities. It exhibits a high degree of resistance to softening after exposure to elevated temperatures. Cuberyllium C15760 has sufficient cold working charateristics for heading, extrusion and some drawing and rolling operations.
Recommended for: | Resistance welding electrodes |
| Welding electrodes | |
| Solder gun tips and MIG contact tips |
For applications requiring brazed joints and /or extended high temperature exposure in hydrogen-containing atmospheres or vacuum, low Oxygen is availbale and recommended.

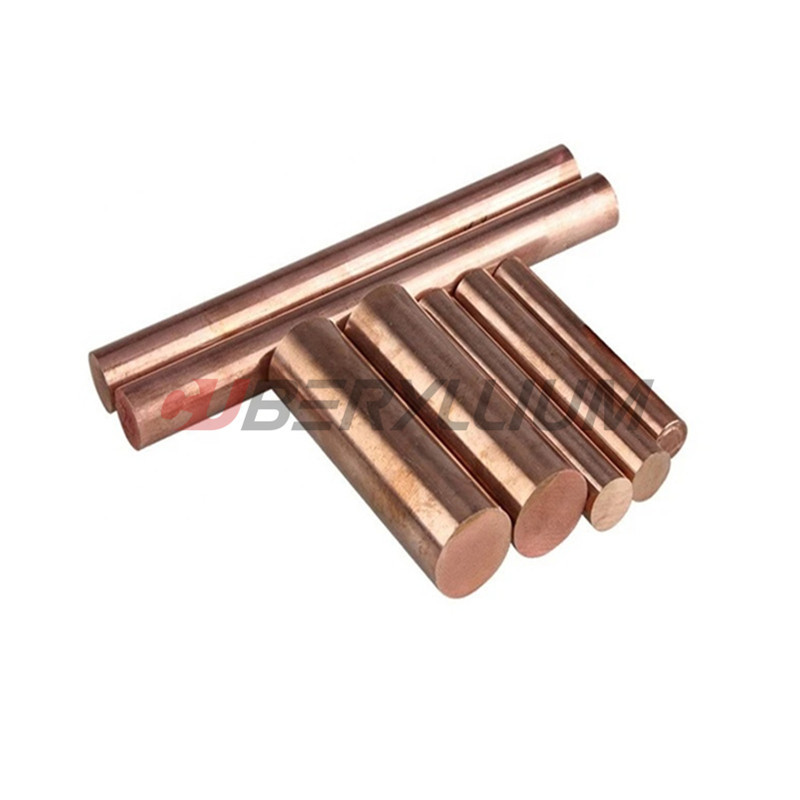

Product Photos:
