Dispersion Alumina Copper Round Rods For Relay Lades And Switches

  • Dispersion Alumina Copper Round Rods For Relay Lades And Switches
  • Dispersion Alumina Copper Round Rods For Relay Lades And Switches
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number UNS.C15715
Minimum Order Quantity 100kgs
Price 20USD
Packaging Details Packed into wooden case
Delivery Time Usually 10-15 days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dispersion Alumina Copper Round Rods Grade UNS.C15715
Specification Custom Diameter & Sizes, Random Mill Lengths Advantage With High Conductivity
Safe Handling No Special Health Risk Machining Property Good
Density G/cm³ 8.90 Cu(Min) Standard
Export To All Over The World Available Shape Rod, Bar, Wire, Flat Prodcuts
High Light

Round Rods Dispersion Alumina Copper

,

Dispersion Alumina Copper Rods
Leave a Message
Product Description

UNS.C15715 Dispersion Alumina Copper Round Rods For Relay lades and Switches

Product Normal Description:

Product Name Dispersion alumina copper round rods
Model No. UNS.C15715
Product Specification: Custom specification is available upon request.
Available Products: Round rods, bars, wire, flat products
Delivery Time: Usually within 10~15 days
Package:

Packed in woodencases
Brand Name: CUBERYLLIUM®



About CUBERYLLIUM®:

Hangzhou Cuberyllium Metal Technology Co.,Ltd. specialized in supplying beryllium copper alloys, high copper alloys, casting copper alloys, copper foil and other copper alloys. Our products have broadly been used in resistance welding, plastic injetion mold, aviation, shipbuilding, military industry, metallurgy, electronics industry and so on. We strive to offer high quality with competitive price due to our advanced technology and equipment.



Chemical Composition of UNS.C15715 Dispersion Alumina Copper Alloy:

Product Grade: CUBERYLLIUM ®-C15715 (RWMA Class 21)

Aluminum 0.15% by wt. as Al₂O₃
Cu: Balance



Typical Physical Properties of UNS.C15715 Dispersion Alumina Copper Alloy:

Melting Point 1083°C
Density 8.90 g/cm3 at 20°C
Electrical Conductivity (σ) 0.533 μ Ω-cm at 20°C
Thermal Conductivity (K) 365 W/m/K at 20°C
Electrical Resistivity (ρ) 1.86 μ Ω-cm at 20°C
Coefficient of Thermal Expansion 16.6 μm/m/°C (20-150°C)
Modulus of Elasticity (Tension) (λ) 130 Gpa



Mechanical Properties of UNS.C15715 Dispersion Alumina Copper Alloy:

Shapes Thickness or Dia. Temper Tensile Strength Yield Strength Elongation Hardness
mm in or Condition MPa ksi MPa ksi % HRB

Flat products

 10 0.400 As Cons.* 413 60 331 48 20 62
1.3 0.050 CW**88% 579 84 537 78 7 -
0.6 0.025 CW 94% 620 90 579 84 7 -
0.15 0.006 CW 98% 661 96 613 89 6 -

Plate

 Up to 130 5.0 As Cons. 365 53 255 37 26 62
25 1.0 CW 60% 476 69 427 62 10 -
16 0.625 CW 75% 483 70 455 66 10 -

Rod

 29 1.125 As Cons. 393 57 324 47 27 62
19 0.75 CW 55% 427 62 407 59 18 68
7 0.275 CW 94% 496 72 469 68 9 72

Wire

 1.3 0.050 CW 99% 524 76 496 72 2 -
0.4 0.015 CW 99.9% 606 88 579 84 1 -
Rounds Up to 760 30 As Cons. 365 53 255 37 26 -



Applications of UNS.C15715 Dispersion Alumina Copper Alloy:

Cuberyllium C15715(RWMA Class 21) is primarily designed for applications requiring the highest electrical and thermal conductivities along with good elevated temperature strength. Cuberyllium C15715 has excellent cold working characteristics, and can be drawn into fine wire or rolled into th5in sheets.

Recommended for: Hybrid circuit package components; such as vacuum tube and microwave tube
X-ray tube components; such as anodes, grids, cathodes, helixes and heat sinks
Electrical components; such as circuit breakers, relay blades and switches
Rotating equipment components; such as commu- tators, electric generator, motor components and brush springs
High power magnet winding

For applications requiring brazed joints and /or extended high temperature exposure in hydrogen-containing atmospheres or vacuum, low Oxygen is availbale and recommended.

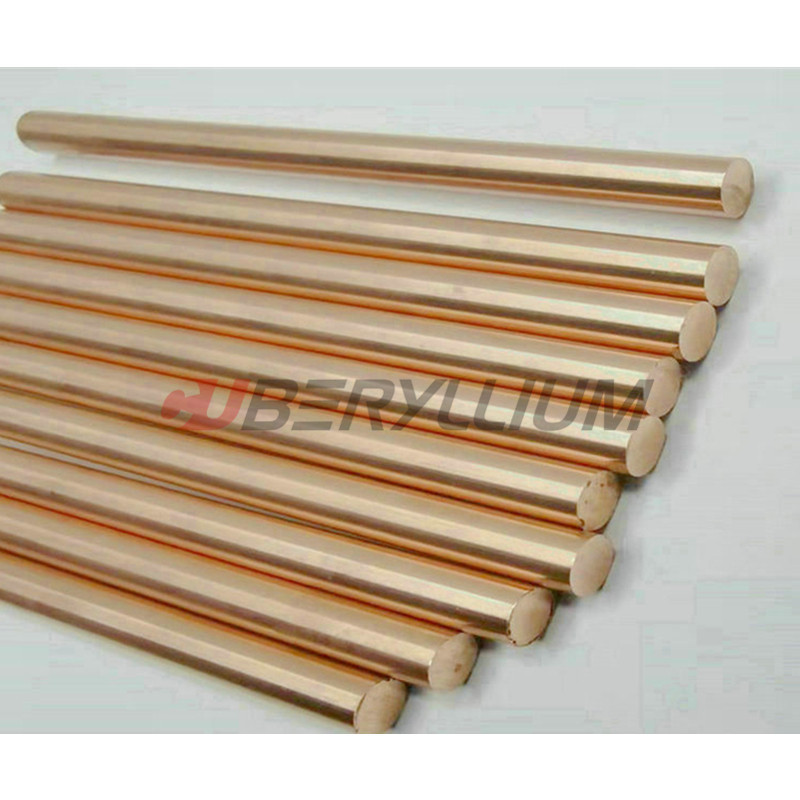

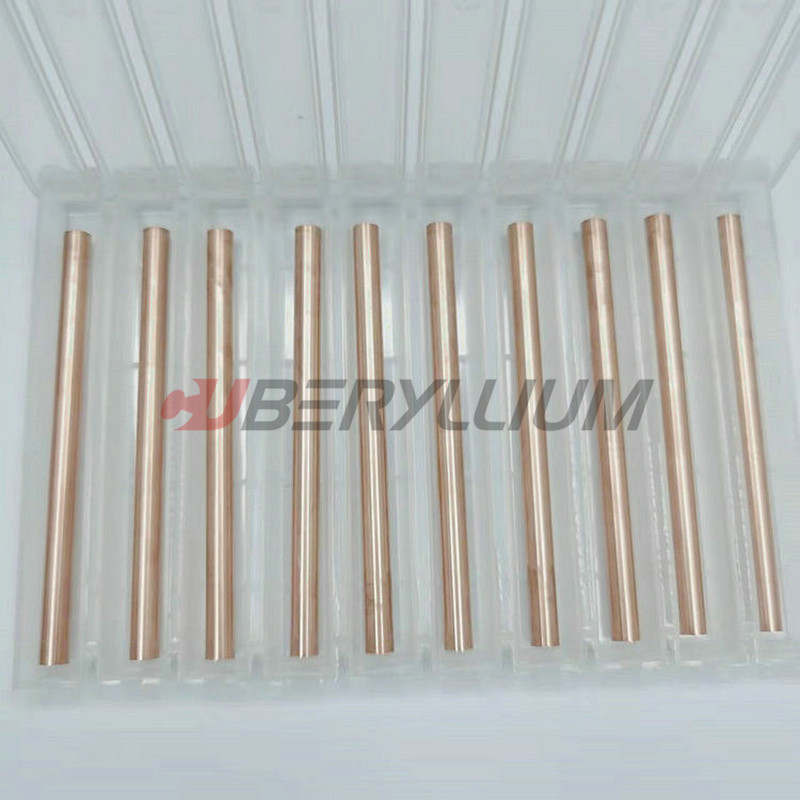

Product Photos:

Dispersion Alumina Copper Round Rods For Relay Lades And Switches 0
