High Conductivity Dispersion Strengthened Copper Rod C15715

  • High Conductivity Dispersion Strengthened Copper Rod C15715
  • High Conductivity Dispersion Strengthened Copper Rod C15715
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO,SGS
Model Number C15715
Minimum Order Quantity 100kgs
Price 20USD
Packaging Details Packed into wooden case
Delivery Time Usually 10-15 days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Dispersion Strengthened Copper Rod Grade C15715
Specification Custom Diameter & Sizes, Random Mill Lengths Advantage With High Conductivity
Safe Handling No Special Health Risk Machining Property Good
Density G/cm³ 8.90 Cu(Min) Standard
Export To All Over The World Available Shape Rod, Bar, Wire, Flat Prodcuts
High Light

High Conductivity Dispersion Strengthened Copper

,

C15715 Dispersion Strengthened Copper
Leave a Message
Product Description

High Conductivity Dispersion Strengthened Copper Rod C15715 For Electrical Components

Product Normal Description:

Product Name Dispersion strengthened copper rod
Model No. C15715
Product Specification: Custom specification is available upon request.
Available Products: Round rods, bars, wire, flat products
Delivery Time: Usually within 10~15 days
Package:

Packed in woodencases
Brand Name: CUBERYLLIUM®



About CUBERYLLIUM®:

Hangzhou Cuberyllium Metal Technology Co.,Ltd. specialized in supplying beryllium copper alloys, high copper alloys, casting copper alloys, copper foil and other copper alloys. Our products have broadly been used in resistance welding, plastic injetion mold, aviation, shipbuilding, military industry, metallurgy, electronics industry and so on. We strive to offer high quality with competitive price due to our advanced technology and equipment.



Chemical Composition of Dispersion Strengthened Copper Alloy C15715:

Product Grade: CUBERYLLIUM ®-C15715 (RWMA Class 21)

Aluminum 0.15% by wt. as Al₂O₃
Cu: Balance



Typical Physical Properties of Dispersion Strengthened Copper Alloy C15715:

Melting Point 1083°C 1981°F
Density 8.90 g/cm3 at 20°C 0.321 lbs./in3 at 68°F
Electrical Conductivity (σ) 0.533 μ Ω-cm at 20°C 92% IACS at 68°F
Thermal Conductivity (K) 365 W/m/K at 20°C 211 Btu/ft2/ft/hr/°F at 68°F
Electrical Resistivity (ρ) 1.86 μ Ω-cm at 20°C 11.19 Ω circular-mil/ft. at 68°F
Coefficient of Thermal Expansion 16.6 μm/m/°C (20-150°C) 9.2 μin/in/°F (68-300°F)
Modulus of Elasticity (Tension) (λ) 130 Gpa 19 x 10⁶ psi



Mechanical Properties of Dispersion Strengthened Copper Alloy C15715:

Shapes Thickness or Dia. Temper Tensile Strength Yield Strength Elongation Hardness
mm in or Condition MPa ksi MPa ksi % HRB

Flat products

 10 0.400 As Cons.* 413 60 331 48 20 62
1.3 0.050 CW**88% 579 84 537 78 7 -
0.6 0.025 CW 94% 620 90 579 84 7 -
0.15 0.006 CW 98% 661 96 613 89 6 -

Plate

 Up to 130 5.0 As Cons. 365 53 255 37 26 62
25 1.0 CW 60% 476 69 427 62 10 -
16 0.625 CW 75% 483 70 455 66 10 -

Rod

 29 1.125 As Cons. 393 57 324 47 27 62
19 0.75 CW 55% 427 62 407 59 18 68
7 0.275 CW 94% 496 72 469 68 9 72

Wire

 1.3 0.050 CW 99% 524 76 496 72 2 -
0.4 0.015 CW 99.9% 606 88 579 84 1 -
Rounds Up to 760 30 As Cons. 365 53 255 37 26 -

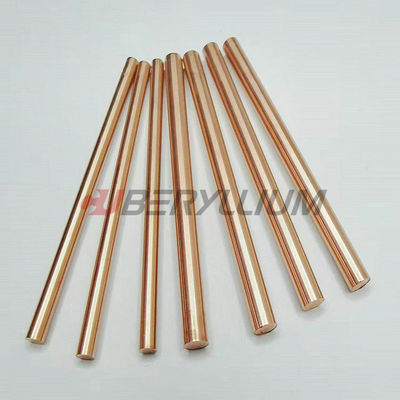

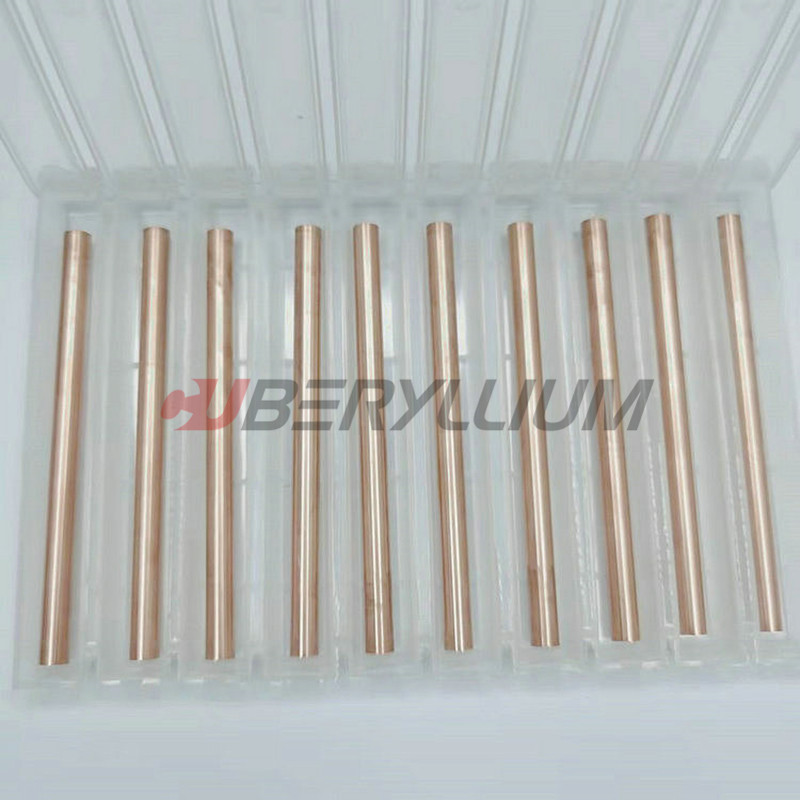

Product Photos:

High Conductivity Dispersion Strengthened Copper Rod C15715 0
