UNS. C17200 Beryllium Bronze Rods Dia. 16mm 19mm 25mm

  • UNS. C17200 Beryllium Bronze Rods Dia. 16mm 19mm 25mm
  • UNS. C17200 Beryllium Bronze Rods Dia. 16mm 19mm 25mm
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe (UNS. C17200)
Minimum Order Quantity 50
Price 30USD
Packaging Details Pack in Woodencase
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Bronze Rods CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM B196 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State AT(TF00)
Diameter 16mm, 19mm, 25mm Length 2000mm
Application For Electrical Industry Package Woodencase
High Light

16mm Beryllium Copper Rods

,

Beryllium Bronze Rods

,

25mm Beryllium Copper Rods
Leave a Message
Product Description

CuBe (UNS. C17200) Beryllium Bronze Rods Dia. 16mm, 19mm, 25mm With 2000mm Length

Commodity Beryllium bronze rods
Grade C17200
Dia. 16mm, 19mm, 25mm
Length 2000mm, we also could cut any length according customers' demand
Surface Bright, Polished
Package Pack in PVC Pipe or woodencase
International Specification ASTM B196
State AT(TF00)
Product Brand CUBERYLLIUM®



Chemical Composition of CuBe (UNS. C17200) Beryllium Bronze Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of CuBe (UNS. C17200) Beryllium Bronze Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical and Electrical Properties of CuBe (UNS. C17200) Beryllium Bronze Rods:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elongation Percent

(Min)

Electrical Conductivity Percent

IACS

 Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 ＞B78

H(TD04)
 		 5~10 / 660~900 5 15~19
＞B88

＞10~25 / 620~860 5 15~19
＞25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
＞10~25 1150~1520 1 22~28 C36~44
＞25 1120~1480 1 22~28 C35~44

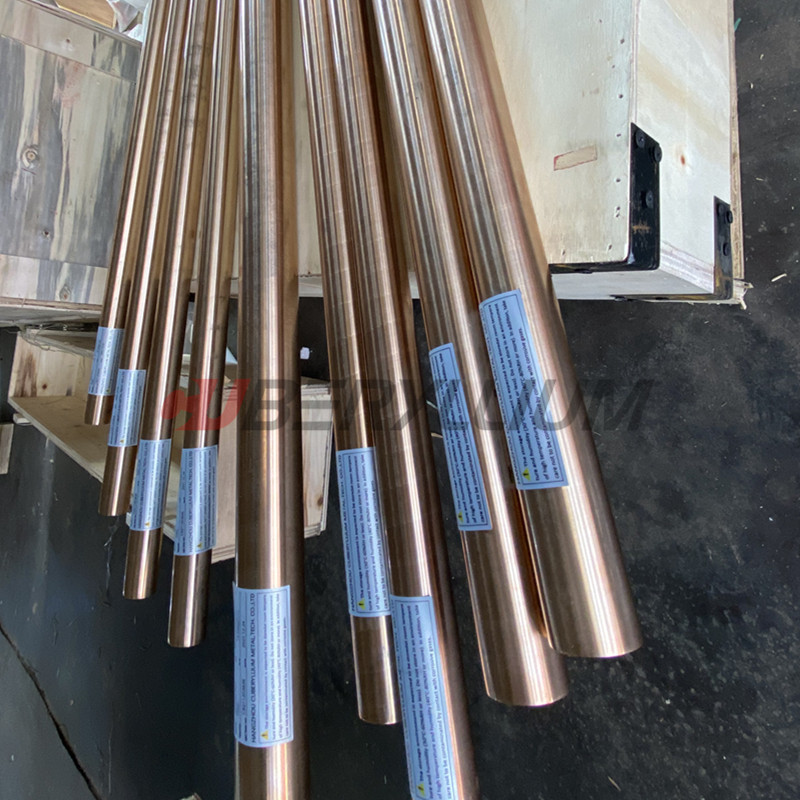

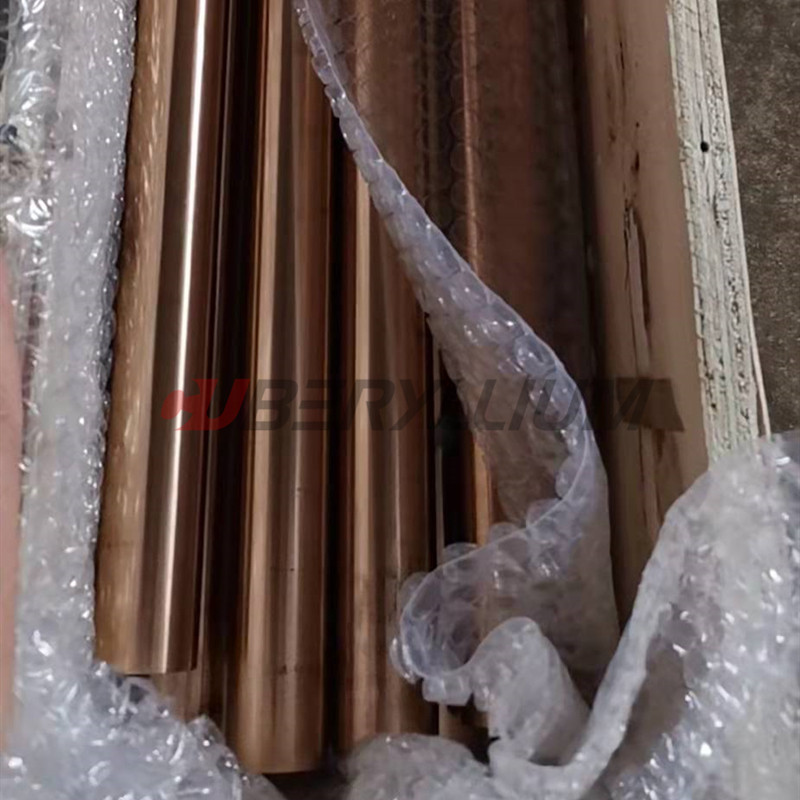

Product Photos:

UNS. C17200 Beryllium Bronze Rods Dia. 16mm 19mm 25mm 0



TYPICAL APPLICATIONS FOR BCuBe (UNS. C17200) Beryllium Bronze Rods:
Electrical Switch and Relay Blades
Electrical connectors
Non-Sparking Safety Tools
Pump Parts
Bushings/Bearing for
Aerospace Industry
Aircraft Engine Parts
Propellers
Bolts And Cams.



FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
