ASTM B196 Beryllium Copper Round Bars CuBe2 For Resistance Welding Electrode

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | ASTM B196 Beryllium Copper Round Bars CuBe2 | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
---|---|---|---|
Standard | ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4 | Safe Handling | No Special Health Risk. |
Machining Property | Good | Surface | Bright/Polished |
Flatness | Good | State | A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04) |
Diameter | 5mm-100mm | Application | For Resistance Welding Electrode |
Elestic Modulus | 131Gpa | Melting Point(solidus) | 870℃ |
Electrical Conductivity | 22-28% IACS | ||
High Light | ASTM B196 Beryllium Copper Round Bar,Beryllium Copper Round Bars CuBe2,becu copper Rod |
ASTM B196 Beryllium Copper Round Bars CuBe2 For Resistance Welding Electrode
Product Normal Description:
Product Name: ASTM B196 beryllium copper round bars
Grade: CuBe2
Standard: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
Product Diameter: 5mm-100mm
State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Typical Application: For resistance welding electrode
Product Brand: CUBERYLLIUM®
Beryllium Copper CuBe2 Alloys International Specification:
Rods/Bars/Tubes: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
European Standards: CuBe2, Alloy 25, QBe2, BrB2, DIN.2.1247, CW101C to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by ASTM.
C17200 Beryllium Copper Alloy Performance:
1. Beryllium copper is a precipitation hardning alloy. After solution aging treatment, it will have high hardness, elastic limit and fatigue limit, corrosion resistance and processing properties, it also has high strength.
2. It has good fluidity and the ability to reproduce fine patterns. Due to the many superior properties of beryllium copper alloy, it has been widely used in the manufacturing industry.
3. It has strong electrical conductivity.
4. The product specifications are complete, the price is favorable, the packaging is intact, the copper is pure, the straightness is good, the inventory is large, and the material certificate and SGS report can be provided.
Chemical Composition of Beryllium Copper CuBe2 Alloys (CUBERYLLIUM ®-172):
Product Grade: CUBERYLLIUM ®-172(UNS. C17200)
Beryllium(Be): 1.80-2.00%
Cobalt(Co) + Nickel(Ni): 0.20% Min
Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max
Lead: 0.02% Max
Copper(Cu): Balance
Note: Copper plus additions equal 99.5% Minimum.
Typical Physical Properties of Beryllium Copper CuBe2 Alloys (CUBERYLLIUM ®-172):
Density (g/cm3): | 8.36 |
Density before age hardening (g/cm3): | 8.25 |
Elastic Modulus (kg/mm2 (103)): | 13.4 |
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): | 17 x 10-6 |
Thermal Conductivity (cal/(cm-s-°C)): | 0.25 |
Melting Range (°C): | 870-980 |
C17200 Beryllium Copper Alloy Thermal Properties:
Treatment | Minimum* | Maximum* | Value* | Time** | Medium |
Stress Relief | 400 | ||||
Solution Treatment | 1425 | 1475 | 0.5 | Water | |
Precipitation Treatment | 600 | 3 | Air | ||
Hot Treatment | 1200 | 1500 | |||
*Temperature is measured in Fahrenheit. ** Time is measured in minutes. |

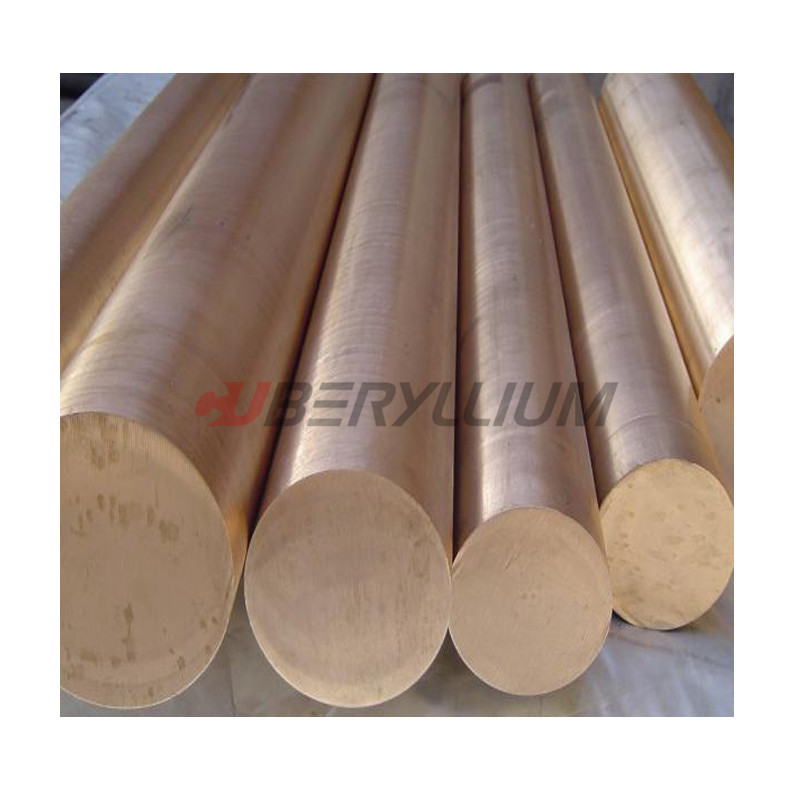

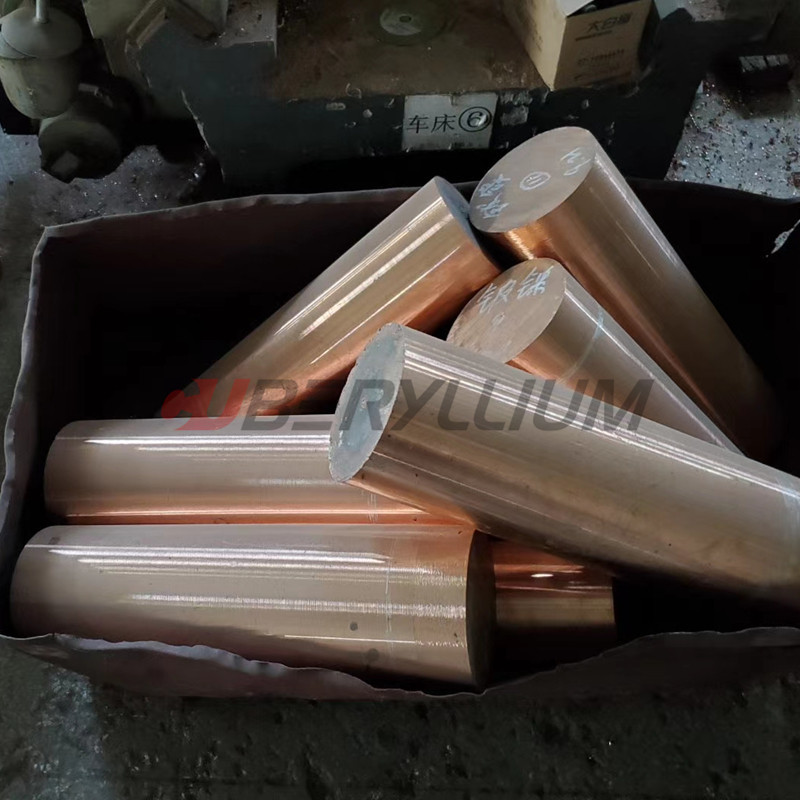

Product Photos:
Applications of Beryllium Copper CuBe2 Alloys (CUBERYLLIUM ®-172):
CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.
Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;
Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;
Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
