N CW104C Cobalt Beryllium Copper Rod Bars State A TB00 H TD04 AT TF00 HT TH04

  • N CW104C Cobalt Beryllium Copper Rod Bars State A TB00 H TD04 AT TF00 HT TH04
  • N CW104C Cobalt Beryllium Copper Rod Bars State A TB00 H TD04 AT TF00 HT TH04
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number N.CW104C
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Copper Beryllium Rods DIN.2.1285 ASTM ASTM B441
Surface Bright Specification All Sizes
State A(TB00),H(TD04),AT(TF00),HT(TH04) Typical Application Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.83g/cm3 Length Clients' Requirement
Diameter 8-30mm
High Light

N CW104C Cobalt Beryllium Copper Rod Bars

,

Cobalt Beryllium Copper Rod Bars State A TB00

,

cube 2 copper alloy Rod State A TB00
Leave a Message
Product Description

N.CW104C Cobalt Beryllium Copper Rod / Bars Available State A(TB00),H(TD04),AT(TF00),HT(TH04)

Product Description:

Name: Cobalt Beryllium Copper Rod / Bars

Grade: N.CW104C

End Product Form: Rods/ Bars

Standard: ASTM B441

State of product: A(TB00),H(TD04),AT(TF00),HT(TH04)

Processing: Seamless / Welding

Feature: Anti corrosion and wear resistant materials

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: 1, Length: according customers' requirement

                       2, Diameter: 8-30mm



CUBERYLLIUM ®-750 also named -C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



Chemical Composition of N.CW104C Cobalt Beryllium Copper Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt Nickel Cobalt+Nickel Lead Copper
Cuberyllium-C750 C17500 0.40-0.70 2.4～2.7 - - - Balance



Related material specifications of N.CW104C Cobalt Beryllium Copper Alloys:

Rods/Bars/Tubes: ASTM B441, SAE J461, 463; RWMA Class 3

Strips: ASTM B534

Sheets: ASTM B534

Wires: ASTM B441

Plates: ASTM B534, SAE J461, RWMA Class 3

European Standards: CuCo2Be, CuCoBe, UNS. C17500, Alloy 10, DIN 2.1285, CW104C to EN



Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.


Typical Physical Properties of N.CW104C Cobalt Beryllium Copper Alloys:

Density 8.83 g/cm3
Density before age hardening 8.75 g/cm3
Melting Range 1000~1070 ℃
Elastic Modulus 14.1 (kg/mm2 (103)
Thermal Expansion Coefficient 18 x 10 -6 20 °C to 200 °C m/m/°C
Thermal Conductivity 0.48 cal/(cm-s-°C)



Typical Applications for N.CW104C Cobalt Beryllium Copper Alloys:

Product Category Product Reason Category Reason
Industrial Tooling for Plastic Molds Conductivity (Electrical) Electrical Conductivity
Tooling for Plastic Molds Conductivity (Thermal) Thermal Conductivity
Tooling for Plastic Molds Corrosion Resistance Corrosion Resistance
Tooling for Plastic Molds Mechanical Properties High Strength
Tooling for Plastic Molds Softening Resistance Resistance to Thermal Softening



Mechanical and Electrical Properties of N.CW104C Cobalt Beryllium Copper Rod / Bars:

Temper(*) Diameter Heat Treatment

Tensile Strength

Mpa

Elongation Percent

(Min)

Electrical Conductivity

Percent IACS

Hardness Rockwell

B Scale
A(TB00) ALL SIZE / 240~380 20~40 20~35 B20~50

H(TD04)

 ALL SIZE / 440~550 10~20 20~35 B20~30
AT(TF00) ALL SIZE 3 hr 480℃ 680~900 10~30 45~60 B92~100
HT(TH04 ALL SIZE 2 hr 480 ℃ 750~960 5~30 48~60 B95~102

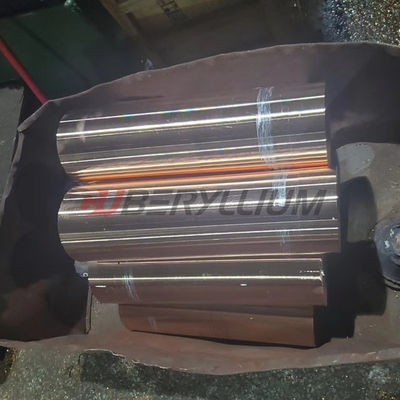

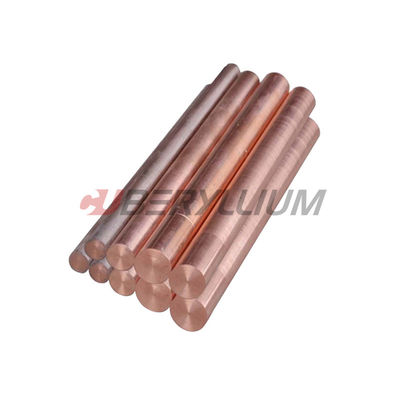

Product Photo:

N CW104C Cobalt Beryllium Copper Rod Bars State A TB00 H TD04 AT TF00 HT TH04 0



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
