Beryllium Copper Rod C17200 Temper 36~42HRC 6.5mm dia X 1000mml

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number C17200
Minimum Order Quantity 50
Price 43USD

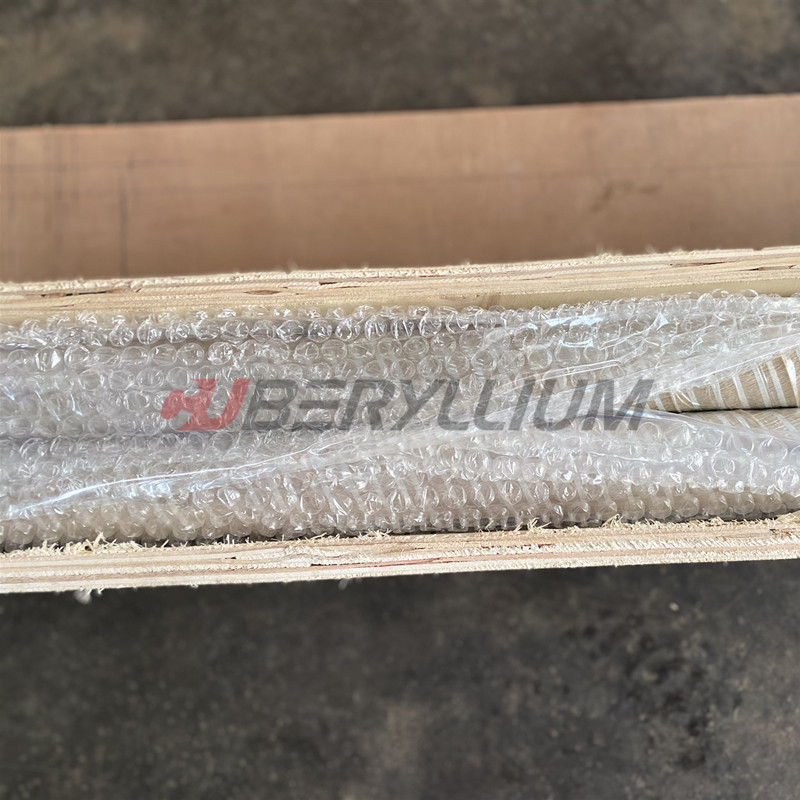

Packaging Details Pack in PVC Pipe+waterproofing winding film or in Wooden Case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper Rod CUBERYLLIUM® Grade CUBERYLLIUM® 172
Standard ASTM B196 Safe Handling No Special Health Risk.
Machining Property Good Surface Bright/Polished
Flatness Good State AT(TF00)
Diameter 6.5mm Length 1000mm
Application For Electrical Industry Package PVC Pipe
High Light

Bright Surface Beryllium Copper Rods

,

Polished Beryllium Copper Rods

,

Beryllium Copper Rod ASTM B196

Leave a Message
Product Description

Beryllium Copper Rod C17200 Temper 36~42HRC 6.5mmdia x 1000mml

Commodity Beryllium copper rods
Grade C17200
Dia. 6.5mm
Length 1000mm, we also could cut any length according customers' demand
Surface Bright, Polished
Package Pack in PVC Pipe or woodencase
International Specification ASTM B196
State AT(TF00)
Product Brand CUBERYLLIUM®



Copper Beryllium Alloys combine high strength with good electrical and thermal conductivities. The high strength of copper beryllium alloys is accomplished by either age hardening or precipitation hardening. Valued for their non-magnetic and non-sparking qualities, Copper Beryllium Alloys are available as high-strength and high conductivity alloys. CUBERYLLIUM® supplies Copper Beryllium in a range of tempers, and in strip, rod, bar, wire, rod, tube, and plate form. Beryllium copper alloys are used in a variety of applications including automotive, industrial, and oil & gas drilling. CUBERYLLIUM® is your go-to beryllium supplier.



Chemical Composition of Beryllium Copper Alloy C17200:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.



Typical Physical Properties of Beryllium Copper Alloy C17200:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical and Electrical Properties of Beryllium Copper Rod C17200:

Temper(*) Diameter Heat Treatment Tensile Strength ksi

Elongation Percent

(Min)

Electrical Conductivity Percent

IACS

Hardness Rockwell B or C Scale
A(TB00) ALL SIZE / 400~600 30 15~19 B45~85
1/2H(TB04) 5~40 / 550~700 10 15~19 >B78

H(TD04)

5~10 / 660~900 5 15~19
>B88

>10~25 / 620~860 5 15~19
>25 / 590~830 5 15~19
AT(TF00) ALL SIZE 3 hr 320°C 1100~1380 2 22~28 C35~42
HT(TH04) 5~10 2 hr 320°C 1200~1550 1 22~28 C37~45
>10~25 1150~1520 1 22~28 C36~44
>25 1120~1480 1 22~28 C35~44




The most important Technology of CUBERYLLIUM ®

A: Heat treatment

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

B: Solution Annealing

For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

C: Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

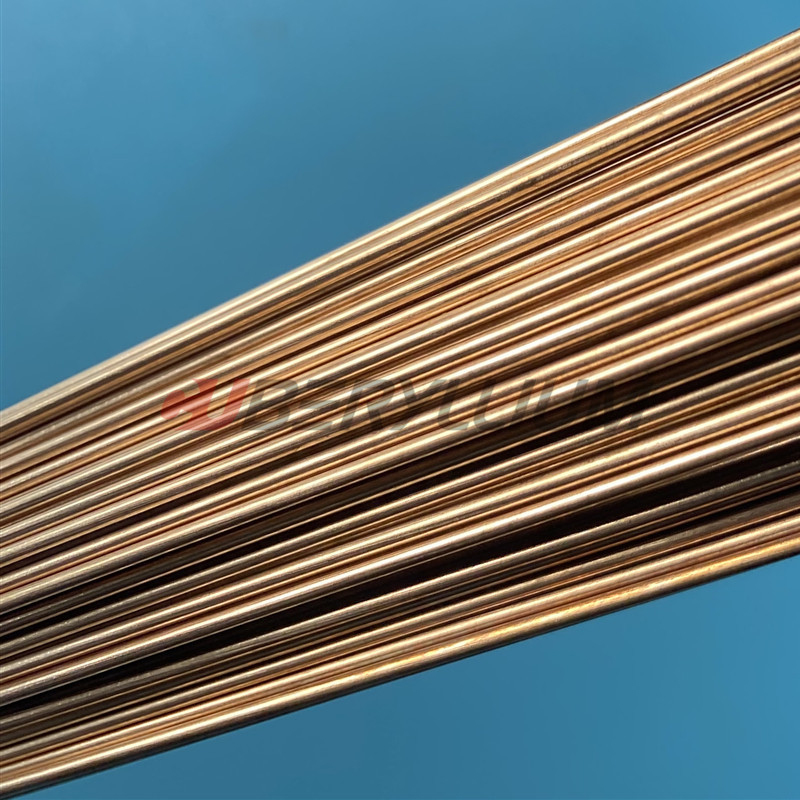

Product Photos:

Beryllium Copper Rod C17200 Temper 36~42HRC 6.5mm dia X 1000mml 0



Applications of Beryllium Copper Alloy C17200:

CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.

Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;

Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;

Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.
