Beryllium Copper Rods M25 C17300 Cube2Pb For Electrical Industry
| Place of Origin | China |
|---|---|
| Brand Name | CUBERYLLIUM® |
| Certification | ISO ROHS |
| Model Number | M25, C17300, Cube2Pb |
| Minimum Order Quantity | 30kg |
| Price | USD 30～50/KG |
| Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
| Delivery Time | 10～15 Working days |
| Payment Terms | L/C, T/T |
| Supply Ability | 50T/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Beryllium Copper Rods M25, C17300, Cube2Pb | CUBERYLLIUM® Grade | CUBERYLLIUM®-173 |
|---|---|---|---|
| Standard | ASTM B196 | Surface | Bright, Polish |
| Temper | TD04 | Typical Application | Electrical Industry Application |
| Shape For Available | Rod&Bar | Brand | CUBERYLLIUM® |
| Diameter | According Customers' Requirement | Length | According Customers' Requirement |
| High Light | M25 Beryllium Copper Rods,Electrical Industry Beryllium Copper Rods,Beryllium Copper Rods Cube 2Pb |
||
Product Description
Beryllium Copper Rods M25, C17300, Cube2Pb For Electrical Industry Application
Product Description:
| Product Name | Beryllium Copper Rods |
| Grade | M25, C17300, CuBe2Pb |
| End Product Form | Rods/ Bars |
| Standard | ASTM B196 |
| State of product | TD04 |
| Processing | Seamless / Welding |
| Feature | With high strength and high conductivity |
| Specification |
Dia. and Length: according customers' requirement |
CUBERYLLIUM® maintains an inventory of beryllium copper alloys, including beryllium copper strips, beryllium copper rods/bars, beryllium copper wires and so on.
The normal grades of beryllium copper alloy are C17200 and C17300, with high strength and moderate conductivity. C17200 & C17300 can be purchased in the solution annealed or cold worked tempers and can be easily formed or machined. A low-temperature heat treatment (600 degrees for 2-3 hours ) produces additional maximum strenght and hardness.
The Features of Beryllium Copper Alloy M25, C17300, Cube2Pb:
1, Free-Machining Beryllium
2, Used when formation of small chips during machining is desirable
3, Same mechanical & physical properties of alloy 172 (C17200)
Chemical Composition of C17300(CuBe2Pb) Beryllium Copper Alloys:
| CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
| Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2～0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Mechanical and Electrical Properties of C17300(CuBe2Pb) Beryllium Copper Rod:
| Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
|---|---|---|---|---|---|---|
| A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | ＞B88 |
| ＞10~25 | / | 620~860 | 5 | 15~19 | ||
| ＞25 | / | 590~830 | 5 | 15~19 | ||
| AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
| HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
| ＞10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
| ＞25 | 1120~1480 | 1 | 22~28 | C35~44 |

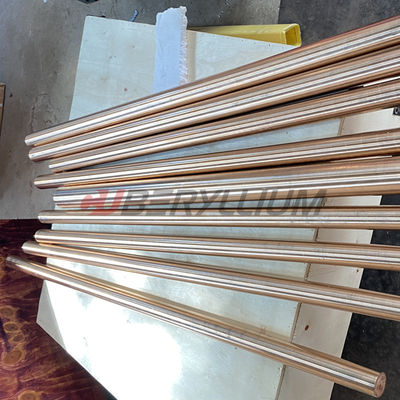

Product Photo:
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
We could provide rods/bars according to your specifications.
Plz contact our sales staff to inquire on your requirements of M25, C17300 CuBe2Pb Beryllium Copper Alloys.
