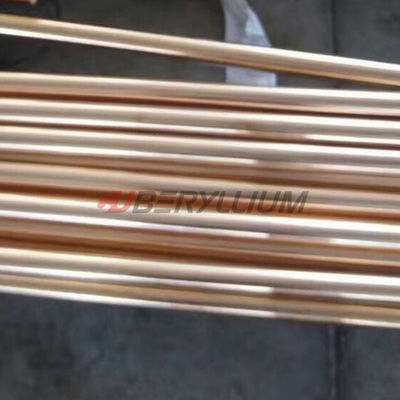

Becu TB00 Annealing Beryllium Copper Round Bar Uns C17000 For Electrical Connectors

  • Becu TB00 Annealing Beryllium Copper Round Bar Uns C17000 For Electrical Connectors
  • Becu TB00 Annealing Beryllium Copper Round Bar Uns C17000 For Electrical Connectors
Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number UNS C17000
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Standard export packing(Inside: water proof paper; Ourside: steel covered with strips and pallets)
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Annealed (A Or TB00) Beryllium Bronze Bar C17000 CUBERYLLIUM ® Grade CUBERYLLIUM ® 170
Shape For Available Rod, Sheet, Plate Diameter Range 6mm~50mm
Length 2m, 3m, 5m, 6m Or As Required ASTM ASTM B196
Temper Annealed (A Or TB00) Surface Bright
Typical Application For Electrical Connectors Hot Working Have Good Hot Working Property
Cold Working Have Excellent Cold Working Property Annealling Temperature Range From 774 To 802℃
High Light

TB00 annealing beryllium copper round Bar

,

beryllium copper round Bar uns c17000

,

c17000 copper alloy
Leave a Message
Product Description

Annealed (A or TB00) Beryllium Bronze Bar C17000 For Electrical Connectors

Product Name: Annealed (A or TB00) Beryllium Bronze Bar

Grade: C17000

Diameter Range: 6mm~50mm

Length: 2m, 3m, 5m, 6m or as required

State: Annealed (A or TB00)



Fabrication and Heat Treatment of C17000 Copper Alloy:

Welding Welding methods such as soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are preferred for C17000 copper alloys. Oxyacetylene welding is not recommended for this type of alloys.
Machinability The machinability rating of C17000 copper alloys is 20%.
Forging C17000 copper alloys are forged at temperature ranging from 649 to 816°C (1200 to 1500°F).
Hot Working C17000 copper alloys have good hot working property.
Cold Working C17000 copper alloys have excellent cold working property.
Annealing C17000 copper alloys are annealed at temperature ranging from 774 to 802°C (1425 to 1475°F).





Product Informance of CUBERYLLIUM® Company:

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-170 also named Cube1.7-C17000 (CDA 170) Beryllium Copper is a lightly alloyed grade of copper, formulated for primary forming into wrought products. CW100C is the EN numeric designation for this material. Alloy170 is the UNS number. Additionally, the EN chemical designation is CuBe1,7. And the British Standard (BS) designation is CB101. Older literature may refer to this material as ASTM Alloy 165, but this is now discouraged.



It has a moderately low electrical conductivity among wrought coppers. In addition, it has a moderately low melting temperature and a moderately low thermal conductivity.

The properties of Alloy170 copper include fourteen common variations. This page shows summary ranges across all of them. For more specific values, follow the links immediately below. The graph bars on the material properties cards further below compare Alloy 170 copper to: wrought coppers (top), all copper alloys (middle), and the entire database (bottom). A full bar means this is the highest value in the relevant set. A half-full bar means it's 50% of the highest, and so on.



Chemical Composition of Beryllium Bronze Alloy C17000:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt
+ Nickel		 Cobalt
+ Nickel
+ Iron		 Lead Copper
Cuberyllium-170 C17000 1.60-1.79 0.20 min 0.6 max 0.02 max Balance





Common Standard Specification of Beryllium Bronze Alloy C17000:

Rod: ASTM B 196, SAE J 461, 463

Forgings and Extrusions : ASTM B570

Sheet: ASTM B 194





Typical Physical Properties of Beryllium Bronze Alloy C17000:

Cuberyllium Brand Density lb/cu.in. Elastic Modulus Thermal Expansion Coefficient Thermal Conductivity Btu/(ft•hr•°F) Melting Temp.
106 psi in/in/°F, 70°F to 400°F °F
170 0.304 19 9.7 x 10 -6 60 1600-1800





Mechanical Properties of Beryllium Bronze Bar C17000:

Cuberyllium 170
Temper		 Tensile Strength Yield Offset Elongation Hardness
x 1000 P.S.I. 0.2% offset x 1000 P.S.I. % in 2 Inches .020 Gauge and Above
TM00 AM 100 - 110 70 - 95 18 -~30 B 98
TM01 1/4HM 110 - 120 80 - 110 15 ~ 25 C 20 - 26
TM02 1/2HM 120 - 135 95 - 125 12~22 C 24 - 30
TM04 HM 135 - 150 110 - 135 9~20 C 28 - 35
TM05 SHM 150 - 160 125 - 140 9~18 C 31 - 37
TM06 XHM 155 - 175 135 - 165 3~10 C 32 - 38
Hardness Legend B : Rockwell (100 kgf Steel Sphere) C: Rockwell (150 kgf Diamond Cone)
NOTE: The information contained herein are intended for reference and comparison purposes only. They should NOT be used as a basis for design specifications or quality control. It is given without obligation or liability. Contact us for manufacturers' complete material property datasheets.

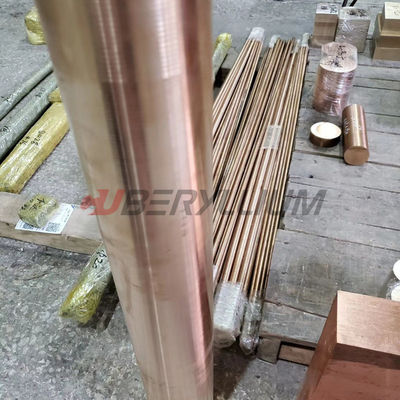

Product Photo:

Becu TB00 Annealing Beryllium Copper Round Bar Uns C17000 For Electrical Connectors 0





FAQ:

Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
