Qbe2 ASTM B197 Beryllium Copper Springs Wires Coil Aging Process 0.1mm-1mm For

Place of Origin China
Certification ISO,SGS
Model Number Qbe2
Minimum Order Quantity 30kg
Price USD 30/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Beryllium Copper Coil Wires Aging Process Qbe2 Wires CUBERYLLIUM® Grade CUBERYLLIUM®-Qbe2
Diameter 0.1mm-1mm Length According Customers' Requirement
State Soft, Hard Surface Bright
Typical Application For Springs Shape For Available Rod Or Coil Wire
Package In Coils Or On Spools Standard ASTM B197
High Light

ASTM B197 Beryllium Copper Springs Wires


Beryllium Copper Springs Wires 0.1mm


beryllium bronze

Leave a Message
Product Description

Beryllium Copper Coil Wires Aging Process Qbe2 Wires Diameter 0.1mm-1mm For Springs

Product Description:

Name: Beryllium copper coil wires/ Aging process wires

Grade: Qbe2

Diameter: 0.1mm-1mm

Length: According customers' requirement, or random mill lengths

Surface: Bright

State: Soft, Hard

Features: High elesticity

Application: For springs


CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti(БрБ2;БрБНТ1.9) for Russia Market. Also Supply Master alloy: CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.


CUBERYLLIUM ®-Qbe2 also named CuBe2 Beryllium Copper, is the most commonly utilized copper beryllium alloy and is notable for its highest strength and hardness compared to commercial copper alloys. Qbe2 beryllium bronze contains a small amount of nickel, which is a high-performance copper alloy with good mechanical, physical and chemical comprehensive properties; after solid solution and time hardening treatment(quenching and tempering), it has high strength, hardness, corrosion resistance, elasticity and wear resistance, explosion resistance, heat resistance, yield and fatigue limit; at the same time, it also has high electrical conductivity, thermal conductivity and cold resistance, non-magnetic, no sparks when hit, easy to process, easy to weld and braze, excellent cooling effect, excellent corrosion resistance in air, fresh water and sea water.

Qbe2 alloy contains appr. 2% of beryllium and achieves its ultimate tensile strength can exceed 1360Mpa, while the hardness approaches Rockwell C45. Meanwhile, the electrical conductivity is a minimum of 22% IACS in the fully aged condition.


Chemical Composition of Beryllium Copper Qbe2.0:




Beryllium Al Ni Fe Cu Si
Cuberyllium-Qbe2 Qbe2 1.80-2.10 0.15 max 0.2~0.5






Copper plus additions equal 99.5% Min.


Typical Physical Properties of Beryllium Copper Qbe2.0:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.40
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical and Electrical Properties of Beryllium Copper Qbe2.0 Wires:

Name Temper Thickness
Tensile Strength Hardness Elongation (min)
MPa HV Percent
Qbe2 Soft <0.15 >390 <130 >30%
0.15~0.25 390~590
>0.25 390~590
Hard <0.15 >590 >170 >3%
0.15~0.25 590~880
>0.25 640~930
After Ageing
<0.15 >1080 >330 >2%
0.15~0.25 1080~1470
>0.25 1130~1470
After Ageing
<0.15 >1080 >360 >1.5%
0.15~0.25 1130~1570
>0.25 1170~1570




Available Status of Beryllium Copper Alloy:

 CUBERYLLIUM® Name ASTM Name Description
A TB00 Solution annealing state(quenched state)
1/4H TD01 Quarter hard
1/2H TD02 Half hard(semi-hard)
3/4H TD03 Three-quarters hard
H TD04 Hard state(full hard)
AT TF00 Standard aging heat treatment in quenched state
1/4HT TH01 Quarter hard standard aging heat treatment
1/2HT TH02 Half-hard standard aging heat treatment
3/4HT TH03 Three-quarters hard standard aging heat treatment
HT TH04 Hard standard aging heat treatment (a process of comprehensive strengthening of deformation and aging)



  • "A' represents the state of solution annealing (annealed, the alloy is in the softest state, easy to be stamped and formed, and needs to be cold worked or strengthened during the direct failure period);
  • "H" stands for cold processing state (Hard);
  • "T" means that the meterial has been aging hardened by standard heat treatment (heat treatment means the state of aging strengthening heat treatment).


Key Technology of Beryllium Copper(Heat treatment)

Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.

Solution Annealing

For the typical alloy CuBe2Pb) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

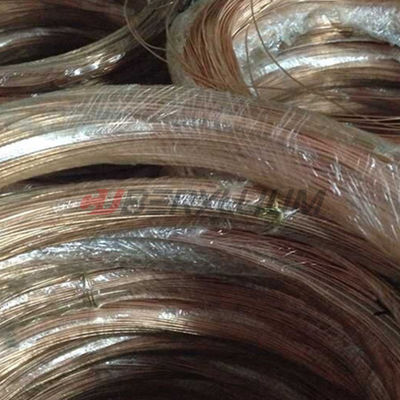

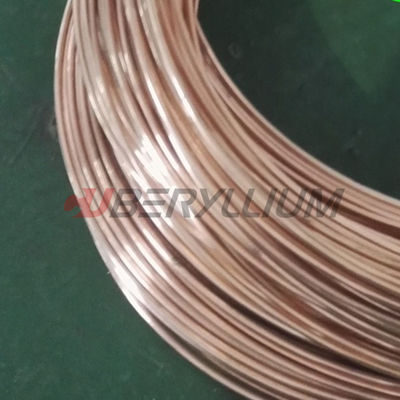

Product Photo:

Qbe2 ASTM B197 Beryllium Copper Springs Wires Coil Aging Process  0.1mm-1mm For 0



Application of Beryllium Copper Qbe2.0:

Our alloys combine a range of properties particularly suited to meet the exacting requirements of many applications in the automotive, electronic, aeronautical, Oil&Gas, watch, electro-chemical industries, etc. Beryllium Copper is widely used in those fields as contact springs in various applications like connectors, switches, relays, etc



Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
