TF00 CW101C Beryllium Copper Alloy Bright Bars Good Thermal Conductivity

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | CW101C Beryllium Copper Alloy Bright Bars | CUBERYLLIUM® Grade | CUBERYLLIUM® 172 |
---|---|---|---|
Standard | ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4 | Safe Handling | No Special Health Risk. |
Machining Property | Good | Surface | Bright/Polished |
Flatness | Good | State | A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04) |
Diameter | 5mm-100mm | Application | For Electrical Industry |
Elestic Modulus | 131Gpa | Melting Point(solidus) | 870℃ |
Electrical Conductivity | 22-28% IACS | ||
High Light | TF00 CW101C Beryllium Copper Alloy,CW101C Beryllium Copper Alloy Bright Bars,becu alloy rod |
CW101C Beryllium Copper Alloy Bright Bars With Good Thermal Conductivity
Product Normal Description:
Product Name: Beryllium Copper Alloy Bright Bars
Grade: CW101C
Standard: ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
Product Diameter: 5mm-100mm
State: A(TB00),1/2H (TD02), H(TD04),AT(TF00),HT(TH04)
Typical Application: For electrical industry
Product Brand: CUBERYLLIUM®
CW101C Beryllium Copper Alloy Information:
Alloy | Shape | Specification | Chemical Composition | Density | Density before age hardening | Elastic Modulus | Thermal Expansion Coefficient | Thermal Conductivity | Melting Range |
UNS.C17200 | Rods/Bars |
ASTM B196,251,463; SAE J461,463; AMS 4533,4534,4535; AMS 4650,4651; RWMA Class 4
|
Beryllium(Be): 1.80-2.00% Cobalt(Co) + Nickel(Ni): 0.20% Min Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max Lead: 0.02% Max Copper(Cu): Balance Note: Copper plus additions equal 99.5% Minimum. |
8.36 (g/cm3) |
8.25 (g/cm3) |
13.4 (kg/mm2 (103)) |
17 x 10-6 (20 °C to 200 °C m/m/°C) |
0.25 (cal/(cm-s-°C)) |
870-980 (°C) |
CuBe2 | |||||||||
DIN.2.1247 | |||||||||
CW101C |
Mechanical and Electrical Properties of CW101C Beryllium Copper Alloy Bright Bars:
Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
---|---|---|---|---|---|---|
A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
1/2H(TB04) | 5~40 | / | 550~700 | 10 | 15~19 | >B78 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | >B88 |
>10~25 | / | 620~860 | 5 | 15~19 | ||
>25 | / | 590~830 | 5 | 15~19 | ||
AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
>10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
>25 | 1120~1480 | 1 | 22~28 | C35~44 |
The most important Technology of CUBERYLLIUM ®
A: Heat treatment
Heat treatment is the most important process for this alloy system. While all copper alloys are hardenable by cold working, beryllium copper is unique in being hardenable by a simple low temperature thermal treatment. It involves two basic steps. The first is called solution annealing and the second, precipitation or age hardening.
B: Solution Annealing
For the typical alloy CuBe1.9 (1.8- 2%) the alloy is heated between 720°C and 860°C. At this point the contained beryllium is essentially “dissolved” in the copper matrix (alpha phase). By rapidly quenching to room temperature this solid solution structure is retained. The material at this stage is very soft and ductile and can be readily cold worked by drawing, forming rolling, or cold heading. The solution annealing operation is part of the process at the mill and is not typically used by the customer. Temperature, time at temperature, quench rate, grain size, and hardness are all very critical parameters and are tightly controlled by ohmalloy.
C: Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

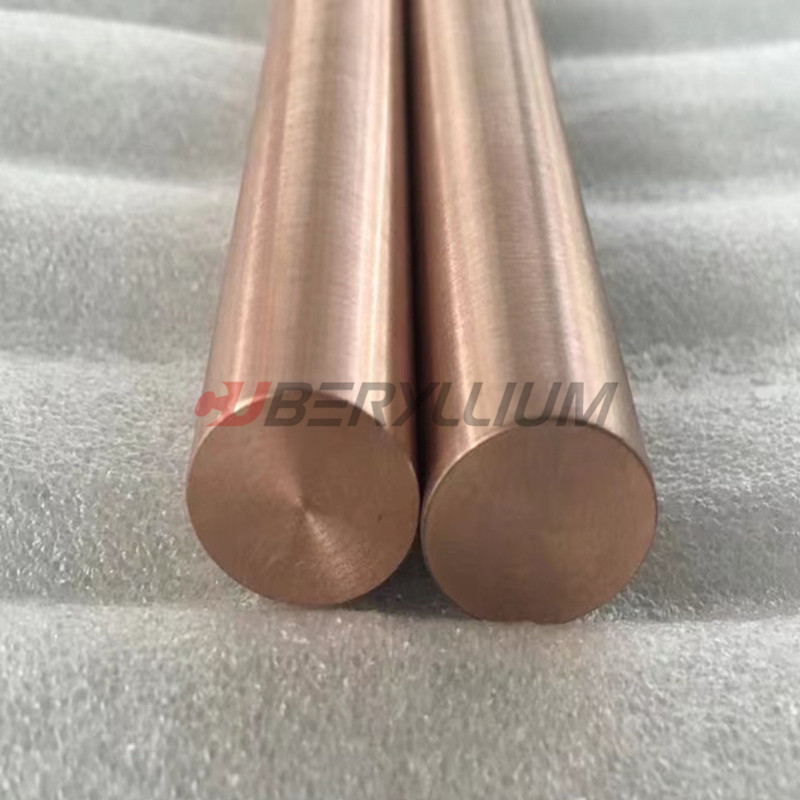

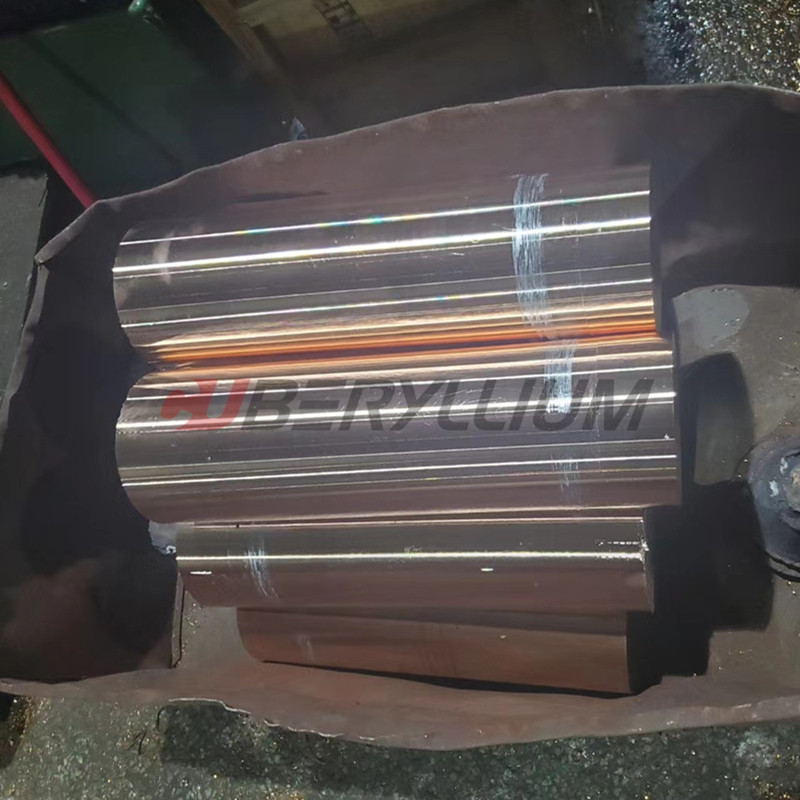

Product Photos:
Applications of CW101C Beryllium Copper Alloy (CUBERYLLIUM ®-172):
CUBERYLLIUM ®-172 is usually used for electrical industry, fasteners and industrial.
Electrical Industry: electrical switch and relay blades(switch parts, relay parts), clips, fuse clips, connectors, spring connectors, navigational indstruments, contact bridges, belleville washers;
Fasteners: washers, lock washers, fasteners, retaining rings, roll pins, screws, bolts;
Industrial: pump parts, springs, electrochemical, spline shafts, non sparking safety tools, flexible metal hose, housings for indtruments, bearings, bushings, valve seats, valve stems, disphragms, springs, welding equipment, rolling mill parts, valves, bourdon tubes, wear plates on heavy equipment, bellows.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different..
