TB00 C17300 Beryllium Copper Round Bar ASTM B196 JIS C173
Place of Origin | China |
---|---|
Brand Name | CUBERYLLIUM® |
Certification | ISO ROHS |
Model Number | JIS C173 (C17300) |
Minimum Order Quantity | 30kg |
Price | USD 30~50/KG |
Packaging Details | Pack in coil+waterproofing winding film+Drier+Wooden Case |
Delivery Time | 10~15 Working days |
Payment Terms | L/C, T/T |
Supply Ability | 50T/Month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Strength Properties JIS C173 (C17300) Copper Round Rod | CUBERYLLIUM® Grade | CUBERYLLIUM®-173 |
---|---|---|---|
Standard | ASTM B196, QQ-C-530 | Surface | Bright, Polish |
State | A(TB00), H(TD04), AT(TF00), HT(TH04) | Typical Application | Electrical And Industrial |
Shape For Available | Rod&Bar | Brand | CUBERYLLIUM® |
Density | 8.36g/cm3 | Length | Clients' Requirement |
Size | According Customers' Requirement | ||
High Light | C17300 beryllium copper round bar,beryllium copper round bar ASTM B196,beryllium copper alloy rod |
Strength Properties JIS C173 (C17300) Copper Round Rod All Size Available
Product Description:
Name: Strength properties copper round rod
Grade: JIS C173 (C17300)
Size: according customers' requirement
End Product Form: Rods/ Bars
Standard: ASTM B196, QQ-C-530
State of product: A(TB00),H(TD04),AT(TF00),HT(TH04)
Processing: Seamless / Welding
Feature: With high strength and high conductivity
Package: Pack in coil+waterproofing winding film+Drier+Wooden Case
CUBERYLLIUM ®-173 also named -C17300 (CDA 173) offers the strength properties of C17300 with the added benefit of being “free machining”. C17300 rod and wire contain a small amount of lead to provide an alloy tailored for automatic machining operations. Lead promotes formation of finely divided chips thus extending cutting tool life.
Chemical Composition of Strength Properties JIS C173 (C17300) Copper Alloys:
CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt + Nickel |
+Cobalt + Nickel + Iron |
Pb | Copper |
Cuberyllium-C173 | C17300 | 1.80-2.00 | 0.20 min | 0.6 max | 0.2~0.6 | Balance |
Note: Copper plus additions equal 99.5% minimum.
Typical Physical Properties of Strength Properties JIS C173 (C17300) Copper Alloys:
Density: 8.36g/cm3
Density before age hardening: 8.25g/cm3
Melting Range: 870~980℃
Elastic Modulus((kg/mm2 (103)): 13.4
Thermal Expansion Coefficient(20 °C to 200 °C m/m/°C): 17 x 10 -6
Thermal Conductivity(cal/(cm-s-°C)): 0.25
Mechanical and Electrical Properties of Strength Properties JIS C173 (C17300) Copper Round Rods:
Temper(*) | Diameter | Heat Treatment | Tensile Strength ksi |
Elogation Percent (Min) |
Electrical Conductivity Percent IACS |
Hardness Rockwell B or C Scale |
---|---|---|---|---|---|---|
A(TB00) | ALL SIZE | / | 400~600 | 30 | 15~19 | B45~85 |
H(TD04) |
5~10 | / | 660~900 | 5 | 15~19 | >B88 |
>10~25 | / | 620~860 | 5 | 15~19 | ||
>25 | / | 590~830 | 5 | 15~19 | ||
AT(TF00) | ALL SIZE | 3 hr 320°C | 1100~1380 | 2 | 22~28 | C35~42 |
HT(TH04) | 5~10 | 2 hr 320°C | 1200~1550 | 1 | 22~28 | C37~45 |
>10~25 | 1150~1520 | 1 | 22~28 | C36~44 | ||
>25 | 1120~1480 | 1 | 22~28 | C35~44 |

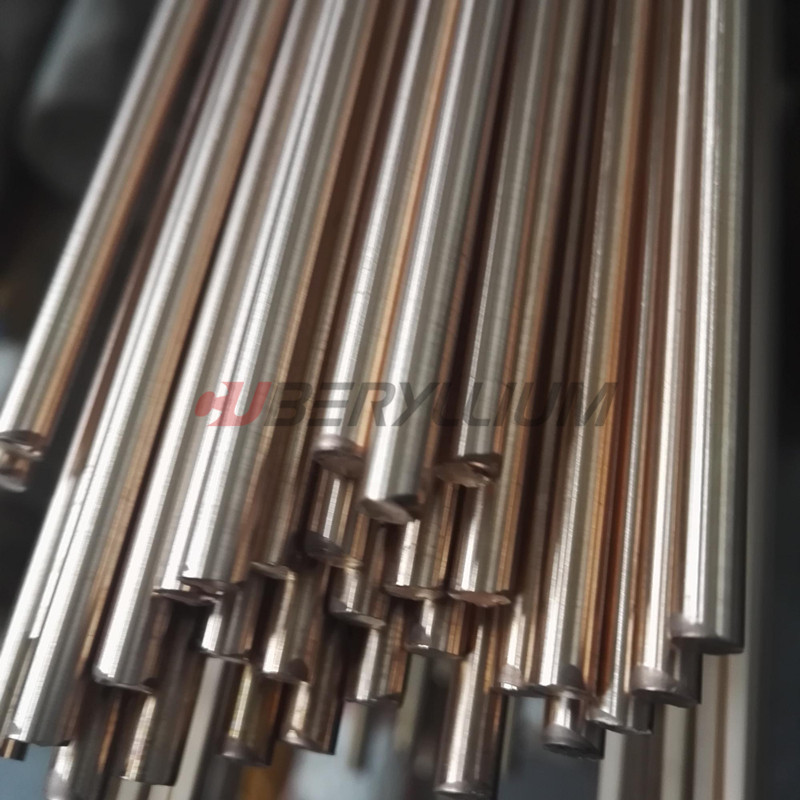

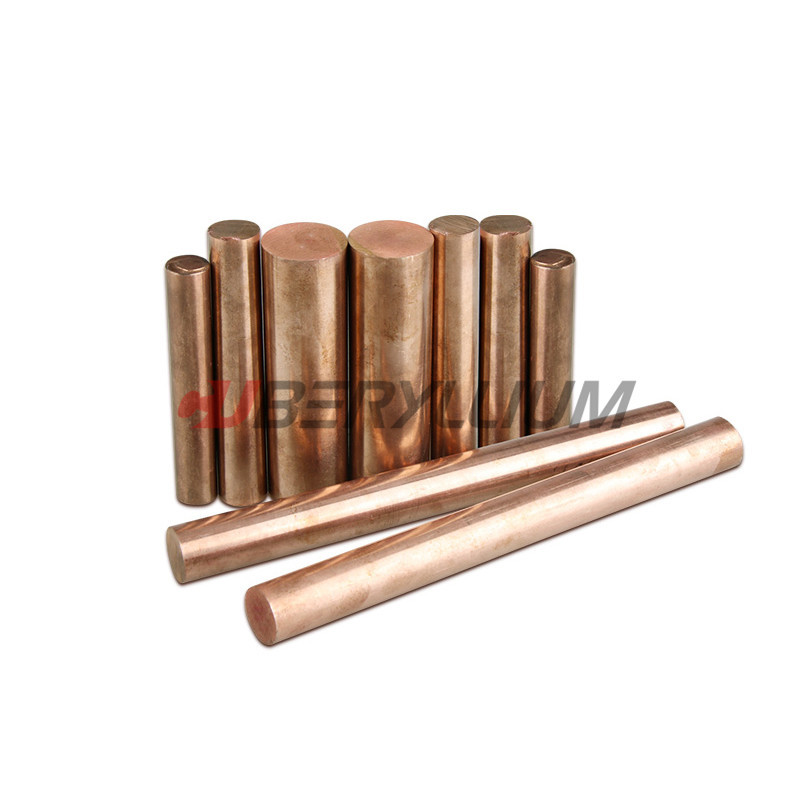

Product Photo:
Strength Properties JIS C173 (C17300) Copper Alloys International Specification:
Rods/Bars/Tubes: ASTM B196, QQ-C-530
Wires: ASTM B197, QQ-C-530
European Standards: CuBe2Pb, Alloy M25, UNS.C17300, DIN.2.1248, CW102C to EN
Note:
ASTM: American Society for Testing and Materials
SAE: Society of Automotive Engineers
AMS: Aerospace Materials Specification(Published by SEA)
RWMA: Resistance Welder Manufacturers' Association
Note: Unless otherwise specified, material will be produced by ASTM.
Typical Applications for Strength Properties JIS C173 (C17300) Copper Alloys:
Electrical Industry: Switch Parts, Relay parts, RF Coaxial Connector, Contact Bridges, Electrical Connectors, Fuse Clips, Electrical Motor Components, Navigational Instruments, Electrical Switch and Relay Blades.
Industrial: Bushings, Welding Equipment, Non-Sparking Safety Tools, Shafts, Springs, Rolling Mill Parts, Spline Shafts, Pump Parts, Valves, Bourdon Tubes, Bellows, Electrochemical Springs, Flexible Metal Hos
