DIN.2.0850 Beryllium Copper Rods Density 8.83g Cm3 ASTM B442 SAE J461 463 RWMA Class 3

  • DIN.2.0850 Beryllium Copper Rods Density 8.83g Cm3 ASTM B442 SAE J461 463 RWMA Class 3
  • DIN.2.0850 Beryllium Copper Rods Density 8.83g Cm3 ASTM B442 SAE J461 463 RWMA Class 3
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number DIN.2.0850
Minimum Order Quantity 30kg
Price USD 30～50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name DIN.2.0850 Copper Beryllium Round Rods ASTM ASTM B441
Surface Bright, Polish Specification All Sizes
State A(TB00),H(TD04),AT(TF00),HT(TH04) Typical Application Electrical And Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.83g/cm3 Length Clients' Requirement
Diameter 8-30mm
High Light

DIN.2.0850 Beryllium Copper Rods ASTM B442

,

DIN.2.0850 Beryllium Copper Rods Density 8.83g cm3

,

8.83g cm3 DIN.2.0850 rwma class 3 copper
Leave a Message
Product Description

DIN.2.0850 Copper Beryllium Round Rods By Standard ASTM B442, SAE J461, 463 And RWMA Class 3

Product Description:

1 Item Copper beryllium round rods
2 Grade DIN.2,0850
3 Standard ASTM B442, SAE J461, 463 And RWMA Class 3
4 Temper A(TB00),H(TD04),AT(TF00),HT(TH04)
5 Surface Polish, Bright
6 Feature High Strength and high conductivity
7 Payment T/T, L/C, Western Union
8 Package

Standard export packing

  • Bundle package
  • Wooden case, wooden pallet package
  • Container or bulk
  • Special package according to customers' request
9 Application
  • Electrical: Instrument Parts, Connectors, Heavy Duty, Relay Parts, Conductors, Switch Parts, Fuse Clips;
  • Fasteners: Washers, Fasteners, Lock Washers, Retaining Rings, Roll Pins, Screws, Bolts;
  • Industrial: High Flux Electromagnets, Thermal Transfer Plates, Welding Equipment, Springs, Die Casting Plunger Tips.
10 Delivery Time
  • The products in stock will delivery immediately after received the payment.
  • According to the order quantity, usually within 15-20 days.
11 Price Terms FOB, CIF, CFR, EX-Work, CNF



CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-751 also named -C17510 (CDA 1751) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



Chemical Composition of DIN.2.0850 Copper Beryllium Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Nickel Cobalt+Nickel Cobalt+Nickel+Iron Lead Copper
Cuberyllium-C751 C17510 0.20 ~ 0.60% 1.40 ~ 2.20% - - - Balance


Typical Physical Properties of DIN.2.0850 Copper Beryllium Alloys:

Density 8.83 g/cm3
Density before age hardening 8.75 g/cm3
Melting Range 1000~1070 ℃
Elastic Modulus 14.10 (kg/mm2 (103)
Thermal Expansion Coefficient 18 x 10 -6 20 °C to 200 °C m/m/°C
Thermal Conductivity 0.57 cal/(cm-s-°C)



Mechanical and Electrical Properties of DIN.2.0850 Copper Beryllium Round Rods:

Temper(*) Diameter Heat Treatment

Tensile Strength

Mpa

Elongation Percent

(Min)

Electrical Conductivity

Percent IACS

Hardness Rockwell

B Scale
A(TB00) ALL SIZE / 240~380 20~40 20~35 B20~50

H(TD04)

 ALL SIZE / 440~550 10~20 20~35 B20~30
AT(TF00) ALL SIZE 3 hr 480℃ 680~900 10~30 45~60 B92~100
HT(TH04 ALL SIZE 2 hr 480 ℃ 750~960 5~30 48~60 B95~102

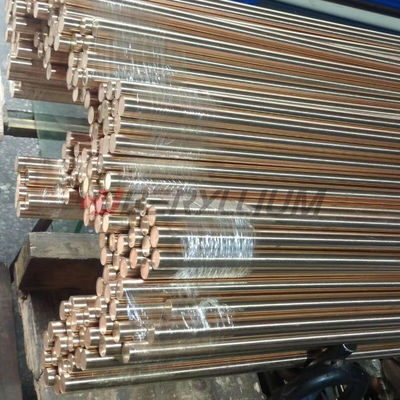

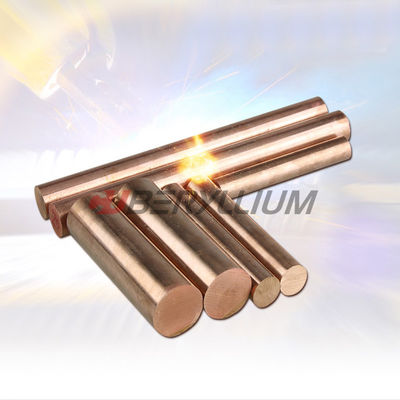

Product Photo:

DIN.2.0850 Beryllium Copper Rods Density 8.83g Cm3 ASTM B442 SAE J461 463 RWMA Class 3 0



Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
