1/4 Hard Beryllium Copper Rods With Electrical Thermal Conductivity From 45 To 60 %

Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number CUBERYLLIUM®-750
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CUBERYLLIUM®-750 Beryllium Copper Bars ASTM ASTM B441
Surface Bright Specification All Sizes
State A(TB00),H(TD04),AT(TF00),HT(TH04) Typical Application Industrial
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Density 8.83g/cm3 Length Clients' Requirement
Diameter 8-30mm
High Light

1/4 hard Beryllium Copper Rods

,

Beryllium Copper Rods With Electrical Thermal Conductivity

,

be cu alloy Rod

Leave a Message
Product Description

CUBERYLLIUM®-750 Beryllium Copper Bars With Electrical And Thermal Conductivity From 45 To 60 %

Product Description:

Name: Beryllium Copper Bars

Grade: CUBERYLLIUM®-750

End Product Form: Rods/ Bars

Standard: ASTM B441

State of product: A(TB00),H(TD04),AT(TF00),HT(TH04)

Processing: Seamless / Welding

Feature: Anti corrosion and wear resistant materials

Package: Pack in coil+waterproofing winding film+Drier+Wooden Case

Specification: 1, Length: according customers' requirement

                       2, Diameter: 8-30mm





CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.



CUBERYLLIUM ®-750 also named -C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.



Chemical Composition of CUBERYLLIUM®-750 Beryllium Copper Alloys:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt Nickel Cobalt+Nickel Lead Copper
Cuberyllium-C750 C17500 0.40-0.70 2.4~2.7 - - - Balance


Typical Physical Properties of CUBERYLLIUM®-750 Beryllium Copper Alloys:

Density 8.83 g/cm3
Density before age hardening 8.75 g/cm3
Melting Range 1000~1070
Elastic Modulus 14.1 (kg/mm2 (103)
Thermal Expansion Coefficient 18 x 10 -6 20 °C to 200 °C m/m/°C
Thermal Conductivity 0.48 cal/(cm-s-°C)



Typical Applications for CUBERYLLIUM®-750 Beryllium Copper Alloys:

Product Category Product Reason Category Reason
Industrial Seam Welding Dies Conductivity (Thermal) Thermal Conductivity
Seam Welding Dies Corrosion Resistance Corrosion Resistance
Seam Welding Dies Creep Properties Creep Resistant
Seam Welding Dies Mechanical Properties High Strength
Seam Welding Dies Softening Resistance Resistance to Thermal Softening



Mechanical and Electrical Properties of CUBERYLLIUM®-750 Beryllium Copper Bars:

Temper(*) Diameter Heat Treatment

Tensile Strength

Mpa

Elongation Percent

(Min)

Electrical Conductivity

Percent IACS

Hardness Rockwell

B Scale

A(TB00) ALL SIZE / 240~380 20~40 20~35 B20~50

H(TD04)

ALL SIZE / 440~550 10~20 20~35 B20~30
AT(TF00) ALL SIZE 3 hr 480℃ 680~900 10~30 45~60 B92~100
HT(TH04 ALL SIZE 2 hr 480 ℃ 750~960 5~30 48~60 B95~102

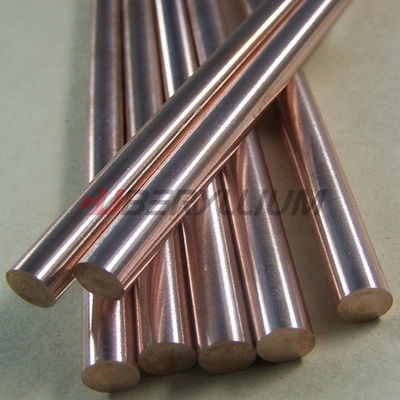

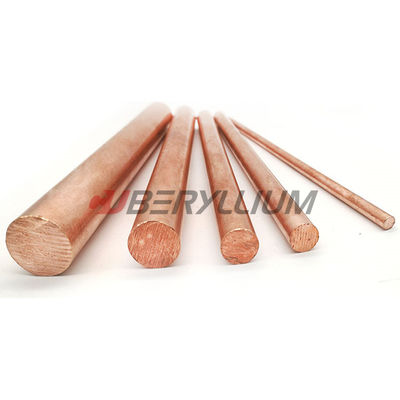

Product Photo:

1/4 Hard Beryllium Copper Rods With Electrical Thermal Conductivity From 45 To 60 % 0



Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
