DIN 2.0850 C17510 Beryllium Copper Tube TF00 TB00 TD04 TH04

Beryllium Copper Tube DIN. 2.0850 State A(TB00) H(TD04) AT(TF00) HT(TH04) For Industry Application

Product Description:

Name: Beryllium Copper Tube

Grade: DIN. 2.0850 (CUBERYLLIUM® 751)

End Product Form: Pipe, Tube

State: A(TB00), H(TD04), AT(TF00), HT(TH04)

Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

Application: Used for industry application

Feature: with highly conductivity

Package: in plywoode cases or wooden cases

Size: Custom Diameter & Sizes, Random Mill Lengths

CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.

CUBERYLLIUM ®-751 also named -C17510 (CDA 1751) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.

Chemical Composition of Beryllium Copper Alloy DIN. 2.0850:

Related material specifications of Beryllium Copper Alloy DIN. 2.0850:

Tubes/Pipes: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167

European Standards: CuNi2Be, CuNiBe, Alloy 3, DIN. 2.0850, CW110C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

Physical Properties

The following table shows the physical properties of UNS C17510 beryllium copper alloys.

Typical Applications for Beryllium Copper Alloy DIN. 2.0850:

A: Electrical Industry: Switch Parts, Connectors, Spring Connectors, Fuse Clips, Relay Parts;

B: Fasteners: Washers, Fasteners;

C: Industrial: Spring, Resistance Welding Equipment, Resistance and Spot Welding Tips, Seam Welding Dies, Die-Casting Plunger Tips, Tooling for Plastic Moulds.

Temper Designations of Beryllium Copper Tube DIN. 2.0850(CUBERYLLIUM ®-751):

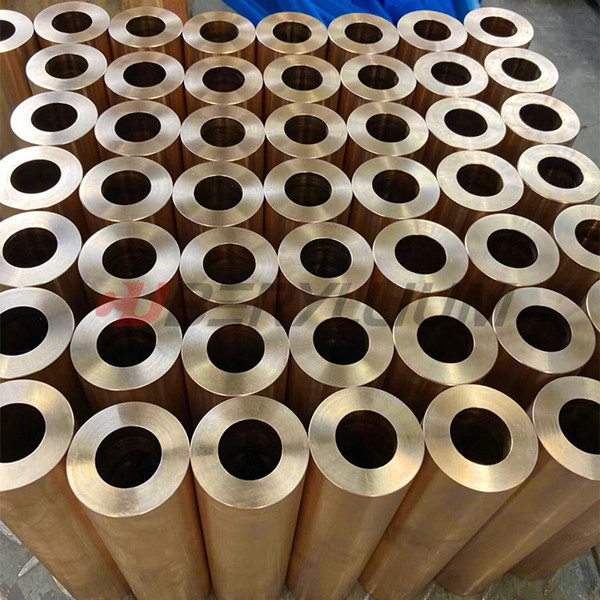

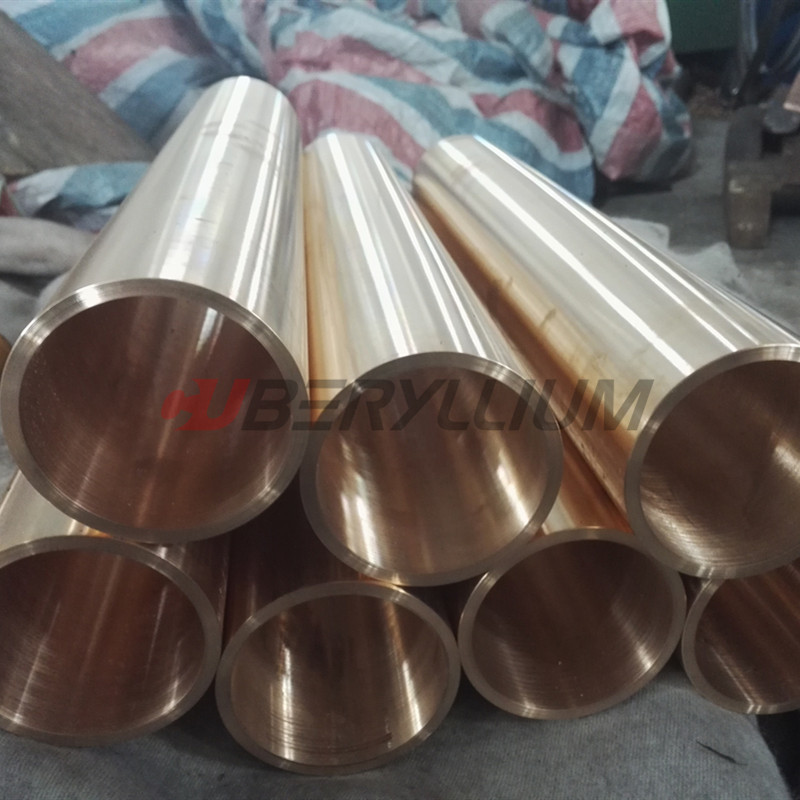

Product Photo:

Weldability

Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended

Hot & Cold Workability

Good hot working properties. Excellent cold working properties.

Key Technology of Beryllium Copper(Heat treatment)

Age Hardening

Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.

FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
