CuCo2Be Beryllium Copper Aged Flat Bars 20 X 60 X3000mm By MTC 3.1

Place of Origin China
Brand Name CUBERYLLIUM
Certification ISO ROHS
Model Number C17500/ Alloy 10
Minimum Order Quantity 30kg
Price USD 30~50/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10~15 Working days
Payment Terms L/C, T/T
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuCo2Be Beryllium Copper Aged Flat Bars Standard MTC 3.1
Surface Bright Specification 20 X 60 X3000mm
State AT(TF00) Heat Treatment 3 Hr 480℃
Typical Application Electrical Industry Shape For Available Rod&Bar
Hardness B92~100 Rockwell B Scale Brand CUBERYLLIUM®
Tensile Strength 680~900 Mpa Elongation Percent 10~30 Min
Electrical Conductivity 45~60% IACS
High Light

Flat Bars C17500 Beryllium Copper

,

Flat Bars CuCo2Be Beryllium Copper

,

Flat Bars 20 X 60 X3000mm

Leave a Message
Product Description

CuCo2Be Beryllium Copper Aged Flat Bars 20 x 60 x3000mm by MTC 3.1

Product Description:

Name: Beryllium copper aged flat bars

Grade: C17500, CuCo2Be

End Product Form: sheet, plate

Standard: MTC 3.1

Processing: Seamless / Welding

Feature: Anti corrosion and wear resistant materials

Package: Pack in Wooden Case

Specification: 20x60x3000mm



Supplied Form of CuCo2Be Beryllium Copper Alloy:
Strips
Plates
Wires
Round bars
Square bars
Rectangular bars
Discs
Billets
Tubes
Custom shapes are available upon request



Introduction of Beryllium Copper Alloy

One of the highest strength copper based alloys available on the market today is beryllium copper, also known as spring copper or beryllium bronze. The commercial grades of beryllium copper contain 0.4 to 2.0 percent beryllium. The small ratio of beryllium to copper creates a family of high copper alloys with strength as high as alloy steel. The first of the two families, C17200 and C17300, includes high strength with moderate conductivity, while the second family, C17500 and C17510, offers high conductivity with moderate strength. The principle characteristics of these alloys are their excellent response to precipitation-hardening treatments, excellent thermal conductivity, and resistance to stress relaxation.



C17500 C17510 Beryllium Copper Alloy:
C17500/C17510 offers a combination of high electrical and thermal conductivity with good strength compared to most copper based alloys. C17500 alloy is the mirror image of alloy C17510 in terms of its properties and characteristics. The beryllium copper differ in that C175 specifies a cobalt alloying addition (2.40-2.70%) and alloy 17510 specifies a nickel alloying addition (1.40-2.20%), but their performance are the same.



Industrial Uses for Copper Alloys
Because of their high thermal conductivity, excellent hardness, and high-temperature strength, copper alloys are frequently used for applications requiring high electrical conductivity and superior mechanical strength.
It is its strength that makes this alloy a great choice when you require wear and corrosion resistance and excellent bearing properties.



C17500(CuCo2Be)
EN ASTM AMS DIN RWMA
CW104C C17500   2.1285 RWMA Class 3



Chemical Composition of CuCo2Be Beryllium Copper Alloy:

CUBERYLLIUM® Brand UNS-Number Beryllium Cobalt Nickel Cobalt+Nickel Lead Copper
Cuberyllium-C750 C17500 0.40-0.70 2.4~2.7 - - - Balance



Typical Physical Peroperties of CuCo2Be Beryllium Copper Alloy

Density Density before age hardening Specific Heat Electrical Conductivity (I.A.C.S) Thermal Conductivity
8.83g/cm³ 875.g/cm³ 0.42 J/g.K Min. 42% 230 W/m.K



Why choose Cuberyllium Metal for beryllium copper alloy products?
We could offer a wide selection of Beryllium Copper Alloys.
Broad range of products and custom capabilities
Modern, state-of-the-art facilities and equipment
Beryllium Copper Alloys in Wholesale Price
Shipping Beryllium Copper Alloys worldwide & fast delivery

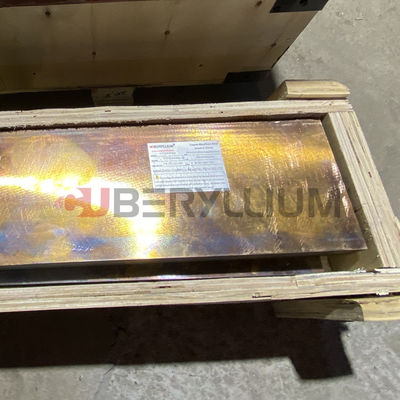

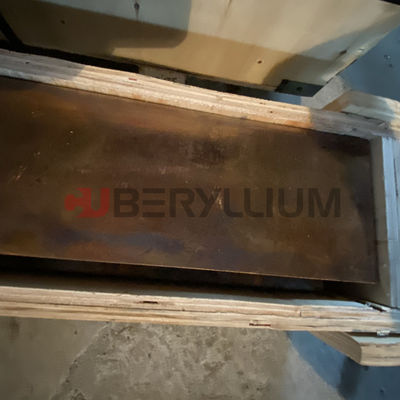

Product Photo:

CuCo2Be Beryllium Copper Aged Flat Bars 20 X 60 X3000mm By MTC 3.1 0



FAQ:

Q1:What’s the advantages the Beryllium Copper of CUBERYLLIUM®?

A1: 1: The Biggest Coil weight could be reach 1200kg/Coil

2:We are the only one who melting by Vacuum semi-Continuous Furnace.

3:Surface further polishing for top clients.

Q2: How about your payment terms?
A2: Generally, 30% as deposit by T/T, then 70% should be paid before the delivery.

Q3: Why you melting by Vacuum semi-Continuous Furnace?
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
