ASTM B 937 Cobalt Beryllium Copper Alloy Tube CDA 175 For Resistance Welding Applications
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | Cobalt Beryllium Copper Tube | Grade | CDA175 |
---|---|---|---|
ASTM | ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167 | Temper | A(TB00) |
Surface | Bright | Typical Application | Electrical Industry, Fasteners, Industrial |
Shape For Available | Round Tube, Hollow Bars, Pipes | Size | All Size |
Brand | CUBERYLLIUM® | Type | Straight Copper Tube |
High Light | Beryllium Copper Alloy Tube CDA 175,ASTM B 937 Cobalt Beryllium Copper Alloy,C17500 beryllium copper material |
Cobalt Beryllium Copper Tube CDA 175 Use In Products For Resistance Welding Applications
Product Description:
Name: Cobalt Beryllium Copper Tube
Grade: CDA 175
End Product Form: Tube / Pipe
Standard: ASTM B 937, SAE J 461, SAE J 463, RWMA Class 3, EN 12163, EN 12165, EN 12167
Application: Use in products for resistance welding application
Feature: with high conductivity
Package: in plywoode cases or wooden cases
Size: Custom Diameter & Sizes, Random Mill Lengths
CUBERYLLIUM® manufactures copper beryllium in several distinct compositions. These fall into two categories: alloys selected for high strength (Alloys 172,173,170) and alloys selected for high conductivity (Alloys 751,750,741). And Gost standard QBe2,QBe1.9Ti for Russia Market. Also Supply Master alloy : CuBeryllium-200; CuBeryllium-275);CuBeryllium-350 and Cuberyllium-400 to global factory.
CUBERYLLIUM ®-750 also named -C17500 (CDA 750) combine moderate yield strength, up to 960Mpa(140ksi), with electrical and thermal conductivity from 45 to 60 % of pure copper. Alloys 750 and 751 are available in wrought product forms and can be supplied fully hardened. Hardened products are identified by the temper designation AT or HT, and have good formability.
Chemical Composition:
CUBERYLLIUM® Brand | UNS-Number | Beryllium | Cobalt | Fe | Si | Copper |
Cuberyllium-C750 | C17500 | 0.40-0.70 | 2.4~2.7 | <0.1 | <0.2 | Balance |
C17500 Beryllium Copper (CDA 175) Available in Shapes of:
UNS C17500 Tubes | Beryllium C17500 Sheets |
Beryllium C17500 Pipes | C17500 Beryllium Copper Alloy Sheets |
UNS C17500 Copper Bars | Beryllium C17500 Rods |
Beryllium Copper Alloy C17500 Rods | UNS C17500 Copper Sheets |
Beryllium Copper C17500 Rods | Beryllium Copper C17500 Wires |
C17500 Beryllium Copper Round Wires | Beryllium Copper C17500 Strips |
UNS C17500 Wires | UNS C17500 Strips |
C17500 Beryllium Bronze Rods | C17500 Beryllium Bronze Bars |
Typical Physical Properties:
Density | 8.83 | g/cm3 |
Density before age hardening | 8.75 | g/cm3 |
Elastic Modulus | 14.1 | kg/mm2 (103) |
Thermal Expansion Coefficient | 18x10-6 | 20 °C to 200 °C m/m/°C |
Thermal Conductivity | 0.48 | (cal/(cm-s-°C |
Melting Range | 1000-1070 | °C |
Typical Applications for CuCo2Be Cobalt Beryllium Copper Tube:
A: Electrical Industry: Switch Parts, Connectors, Spring Connectors, Fuse Clips, Relay Parts;
B: Fasteners: Washers, Fasteners;
C: Industrial: Spring, Resistance Welding Equipment, Resistance and Spot Welding Tips, Seam Welding Dies, Die-Casting Plunger Tips, Tooling for Plastic Moulds.
Temper Designations of C17500 Beryllium Bronze Tube (CUBERYLLIUM ®-750):
Cuberyllium Designation | ASTM | Mechanical and Electrical Properties of Copper Beryllium Strip | |||||
Temper |
Outside Diameter or Distance Between Parallel Surfaces (mm) |
Tensile Strength (Mpa) |
Yield Strength 0.2% offset(Mpa) | Elongation Percent | HARDNESS (Rockwell B Scale) |
Electrical Conductiviry percent(IACS) | |
A | TB00 | All sizes | 240~380 | 70~210 | 20-35 | B20-50 | 20-30 |
H | TD04 | up to 76 | 440~550 | 340~520 | 10-15 | B60-80 | 20-30 |
AT |
TF00 | All sizes | 680~890 | 550~690 | 10-25 | B92-100 | 45-60 |
HT | TH04 | up to 76 | 750 ~ 960 | 650 ~ 860 | 5-25 | B95-102 | 48-60 |

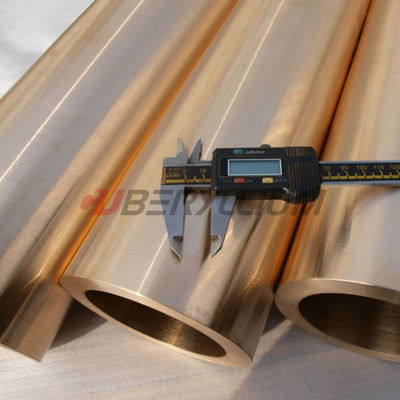

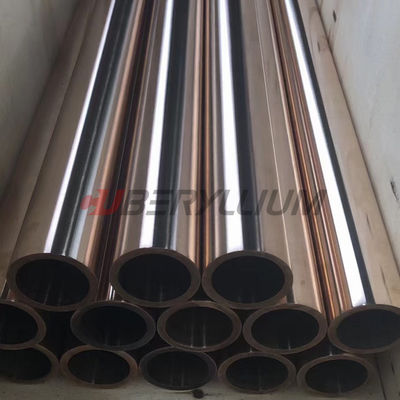

Product Photo:
Weldability
Soldering, brazing, gas shielded arc welding, coated metal arc welding, spot welding, seam welding and butt welding are all recommended
Hot & Cold Workability
Good hot working properties. Excellent cold working properties.
Key Technology of Beryllium Copper(Heat treatment)
Age Hardening
Age hardening significantly enhances the material’s strength. This reaction is generally carried out at temperatures between 260°C and 540°C depending on alloy and desired characteristics. This cycle causes the dissolved beryllium to precipitate as a beryllium rich (gamma) phase in the matrix and at the grain boundaries. It is the formation of this precipitate which causes the large increase in material strength. The level of mechanical properties attained is determined by the temperature and time at temperature. It should be recognized that beryllium copper has no room temperature aging characteristics.
FAQ:
Q1:Could you produce Beryllium Copper strip by Mill Hardened process.
A1:Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.
Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil
2:We are the only one who melting by Vacuum semi-Continuous Furnace.
3:Surface further polishing for top clients.
Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3:Could be get the Cast ingot without gas,smaller segregation, Grain Refinement
