Product Details
Name Tellurium Copper Bar ASTM ASTM B301/B301M
Surface Bright, Polish Specification All Sizes
State HO2 HO4 Typical Application Electrical
Shape For Available Rod&Bar Brand CUBERYLLIUM®
Size Clients' Requirement
High Light

Free Cutting C145 Copper Bar

,

High Conductivity C145 Copper Bar

,

Polish C14500 Tellurium Copper Bar

Leave a Message
Product Description

CuTeP /C145 Tellurium Copper Bar with high Conductivity Free Cutting Alloy Material
Product Normal Description:
Product Name: Tellurium copper bar
Grade: CuTeP/ C145
Size: according customer's requirement
State: H02 H04
Typical Application: Electrical
Product Brand: CUBERYLLIUM®



Material Properties of CuTeP /C145 Tellurium Copper Alloy:

C145 Tellurium Copper (TeCuP) has applications in the production of hot forged products, high-speed screw machine products and parts requiring high conductivity, extensive machining, corrosion resistance, copper color, or a combination of these. The addition of tellurium enhances the strength of the copper alloy and assists in chip breakage, allowing for much higher machining speeds and ultimately longer tool life than with pure copper in high-speed screw machines.




Tipical Application of CuTeP /C145 Tellurium Copper Alloy: Gas cutting nozzles
High-speed automatic screw machines
Electrical Switches on power semiconductors
Welding Torch tips
Transformer & Circuit-breaker terminals
Fasteners
Production of hot forged products


Chemical Composition of CuTeP /C145 Tellurium Copper Alloy:

CUBERYLLIUM® Brand ASTM Tellurium Phosphorus Copper
Cuberyllium-C145 C14500 0.40-0.70% 0.004-0.012% 99.2%



Mechanical Properties of CuTeP /C145 Tellurium Copper:


Condition Nominal thickness Tensile strength Yield strength Ultimate elongation Rigor
  in mm Rm in MPa Rp0,2 in MPa in % (min.)   HB
  over up tp min max min max A50 A100 A
M all as manufactured – without specification of mechanical values
R250/H080* max. 80 250 180 3 7 80-110
R300/H095* max. 20 300 240 2 5 95-130
R360/H120* max. 10 360 300 min. 120

Shape Available of CuTeP /C145 Tellurium Copper Alloy:

Shape Condition Size
Straight Round Rod/Wire Hard/Half Hard Φ2-15mm
Straight Round Rod Hard/Half Hard Φ3-90mm
Flat Bars/Plates/Sheets Hard/Half Hard Φ5-100mm

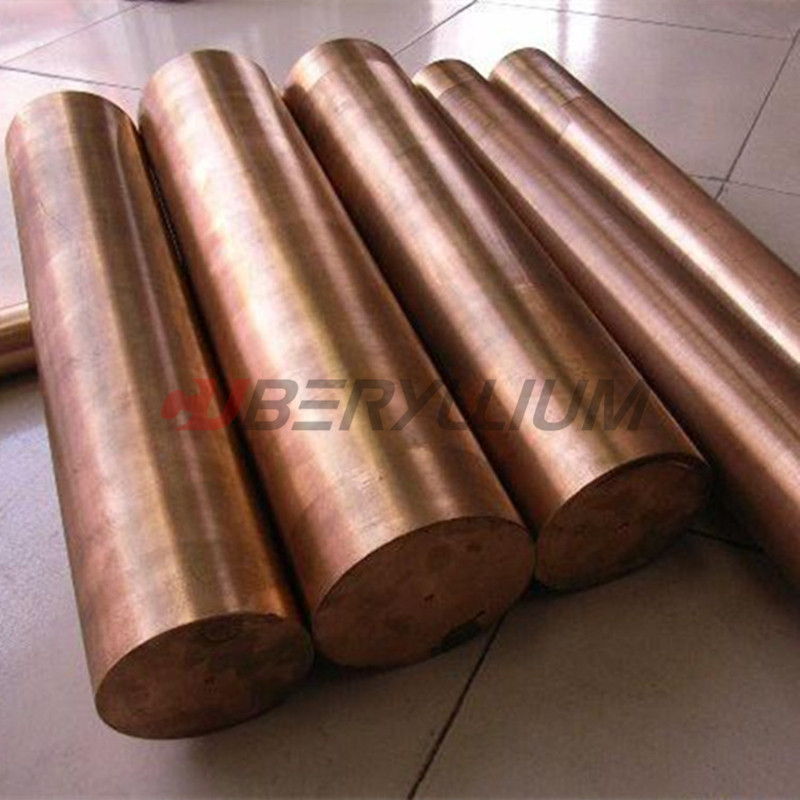

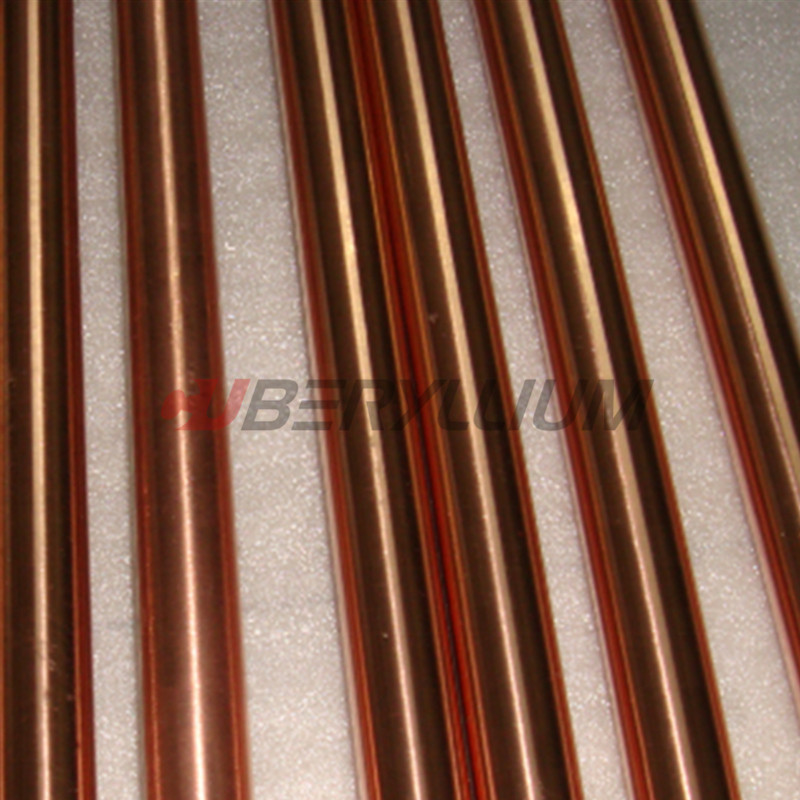

Product Photo:
CuTeP C14500 Tellurium Copper Bar With High Conductivity Free Cutting 0
