Beryllium Copper CuBe2 In Wire Form Used In Electrical Industry

  • Beryllium Copper CuBe2 In Wire Form Used In Electrical Industry
  • Beryllium Copper CuBe2 In Wire Form Used In Electrical Industry
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO ROHS
Model Number CuBe2
Minimum Order Quantity 30kg
Price USD 30/KG
Packaging Details Pack in coil+waterproofing winding film+Drier+Wooden Case
Delivery Time 10～15 Working days
Payment Terms L/C, T/T, Western Union
Supply Ability 50T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Beryllium Copper CuBe2 In Wire Form CUBERYLLIUM® Grade CUBERYLLIUM® 172
Diameter Range 1.4mm Temper A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04)
Surface Bright Typical Application Coil Springs
Shape For Available Rod Or Coil Wire Package In Coils
ASTM ASTM B197 Application For Electrical Indsutry
High Light

Beryllium Copper Wire CuBe2

,

Electrical Industry Beryllium Copper Wire

,

Wire Form Beryllium Copper
Leave a Message
Product Description

Beryllium Copper CuBe2 in Wire Form Used in The Electrical Indsutry

Product Description:

Name: Beryllium copper wire

Grade: CuBe2

Specification: Diameter 1.4mm

Surface: Bright

State: A(TB00), 1/4H(TD01), 1/2H(TD02), 3/4H(TD03, H(TD04)

Features: High strength and elestivity

Application: For electrical industry



Chemical Composition of Beryllium Copper CuBe2 Alloy:

Product Grade: CUBERYLLIUM ®-172(UNS. C17200)

Beryllium(Be): 1.80-2.00%

Cobalt(Co) + Nickel(Ni): 0.20% Min

Cobalt(Co) + Nickel(Ni) + Iron(Fe): 0.60% Max

Lead: 0.02% Max

Copper(Cu): Balance

Note: Copper plus additions equal 99.5% Minimum.


Typical Physical Properties of Beryllium Copper CuBe2 Alloy:

Density (g/cm3): 8.36
Density before age hardening (g/cm3): 8.25
Elastic Modulus (kg/mm2 (103)): 13.4
Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C): 17 x 10-6
Thermal Conductivity (cal/(cm-s-°C)): 0.25
Melting Range (°C): 870-980



Mechanical and Electrical Properties of Beryllium Copper CuBe2 Wires:

Alloy Temper (*) Heat Treatment Tensile Strength Mpa Elongation percent Electrical Conductivity percent IACS
CUBERYLLIUM
172		 A / 400～580 30-60 15-19
(TB00)
1/4 H / 570～795 3~25 15-19
(TD01)
1/2 H / 710～930 2~15 15-19
(TD02)
3/4 H / 840～1070 2~8 15-19
(TD03)
H / 915～1140 1~6 15-19
(TD04)
CUBERYLLIUM
172		 AT 3 hr 315℃ 1050~1380 3 min 22-28
(TF00)
1/4 HT 2 hr 315℃ 1150~1450 2 min 22-28
(TH01)
1/2 HT 1.5hr 315℃ 1200~1480 2 min 22-28
(TH02)
3/4 HT 1.0 hr 315℃ 1250~1585 2 min 22-28
(TH03)
HT 1.0hr 315℃ 1300~1585 1 min 22-28
(TH04)





International Specification of Beryllium Copper CuBe2 Alloy:

Product Type Temper Type
Bar ASTM B196
Military Mil-C-21657
Rod ASTM B196
Military Mil-C-21657
Wire ASTM B197, AMS4725, SAE J461,463, RWMA Class 4
European Standards CuBe2, Alloy 25, BrB2, DIN.2.1247, CW101C to EN

Note:

ASTM: American Society for Testing and Materials

SAE: Society of Automotive Engineers

AMS: Aerospace Materials Specification(Published by SEA)

RWMA: Resistance Welder Manufacturers' Association

Note: Unless otherwise specified, material will be produced by ASTM.

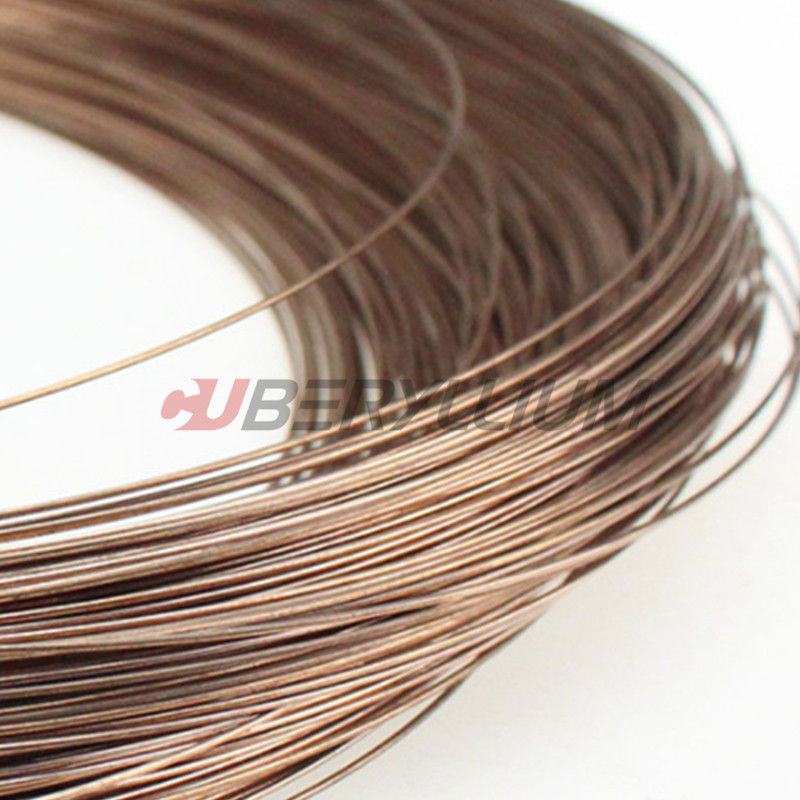

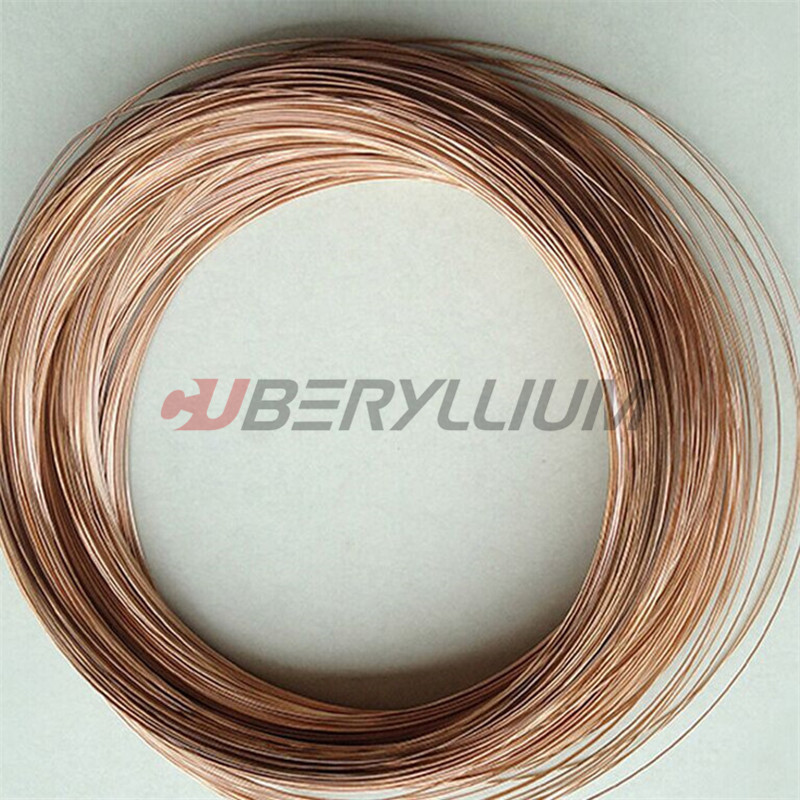

Product Photo:

Beryllium Copper CuBe2 In Wire Form Used In Electrical Industry 0





Process of Copper Beryllium Wires:

Beryllium Copper CuBe2 In Wire Form Used In Electrical Industry 1

Contact Us:

Contact Person: Yomi Xu(Sales Manager)

Email ID: sales@cuberyllium.com

Mobile/Wechat: +86-17376550856



FAQ:

Q1: Could you produce Beryllium Copper strip by Mill Hardened process.
A1: Yes, we could produce AM(TM00), 1/2HM(TM01).HM(TM04) XHM(TM06) XHMS(TM08).,we are the only factory could do harden strip in China.

Q2: What’s the advantages the Beryllium Copper of CUBERYLLIUM®.
A2: 1: The Biggest Coil weight could be reach 1200kg/Coil

2: We are the only one who melting by Vacuum semi-Continuous Furnace.

3: Surface further polishing for top clients.

Q3: Why you melting by Vacuum semi-Continuous Furnace.
A3: Could be get the Cast ingot without gas,smaller segregation, Grain Refinement

Q4: What's the payment terms?
A4: We accept T/T, L/C, Paypal etc. It can be negotiated when the amount is different.
