C17510 Beryllium Copper Alloy Round Bar 10mm 11mm 15mm 20mm 25mm
| Place of Origin | China |
|---|---|
| Brand Name | Cuberyllium |
| Certification | SGS |
| Model Number | C17510 CuNi2Be |
| Minimum Order Quantity | 30KGS |
| Price | 15usd/kg |
| Packaging Details | woodencase |
| Delivery Time | within 15 working days |
| Payment Terms | 30% in advance by T/T |
| Supply Ability | 200Ton/Month |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Copper Alloy | Shape | Rod, Bar |
|---|---|---|---|
| Grade | C17510, CuNi2Be | Temper | TF00 TH04 |
| Application | Industry | Dia. | 10mm 11mm 15mm 20mm 25mm |
| Length | 500mm, 1m, 2m | Standard | ASTM B441 |
| High Light | C17510 Beryllium Copper Bar,C17510 Beryllium Copper Alloy Round Bar,10mm Copper Alloy Round Bar |
||
Product Description
Product Description:
C17510 BERYLLIUM COPPER ALLOY ROUND BAR 10mm 11mm 15mm 20mm 25mm
C17510 grade with Be and Ni, is a material with high elasticity, strong conductivity.
C17510, beryllium nickel copper, it is used in resistance welding(butt welding), can be processed into spot welding electrodes, electrode caps, electrode blocks, electrode arms, sealing welding modules, and so on.
Introduction:
- Product Name: Beryllium copper alloy
- Alloy Grade: C17510 CuNi2Be, EN.CW110C
- Material: Copper Alloy
- Chemical Composition: Berylliym 0.20 ~ 0.60%, Nickel 1.40 ~ 2.20%, Copper Balance
- Forms Available: round rod, round bar
Features of C17510 BERYLLIUM COPPER ALLOY:
- It is the best high-grade elastic material among copper alloys
- It has good strength
- With good elasticity, bending and fatigue strength
- Has small elastic hysteresis
- Corrosion resistance, wear resistance and cold resistance
- With high conductivity
Typical Physical Properties of Beryllium Copper C17510 Alloys:
| Density | 8.83 | g/cm3 |
| Density before age hardening | 8.75 | g/cm3 |
| Melting Range | 1000~1070 | ℃ |
| Elastic Modulus | 14.10 | (kg/mm2 (103) |
| Thermal Expansion Coefficient | 18 x 10 -6 | 20 °C to 200 °C m/m/°C |
| Thermal Conductivity | 0.57 | cal/(cm-s-°C) |

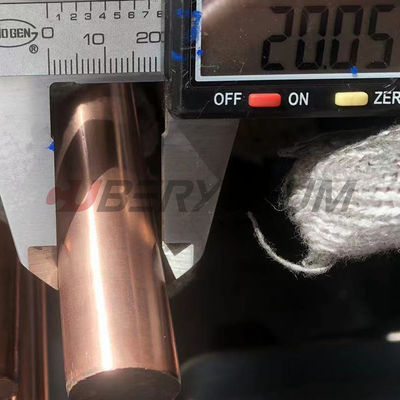

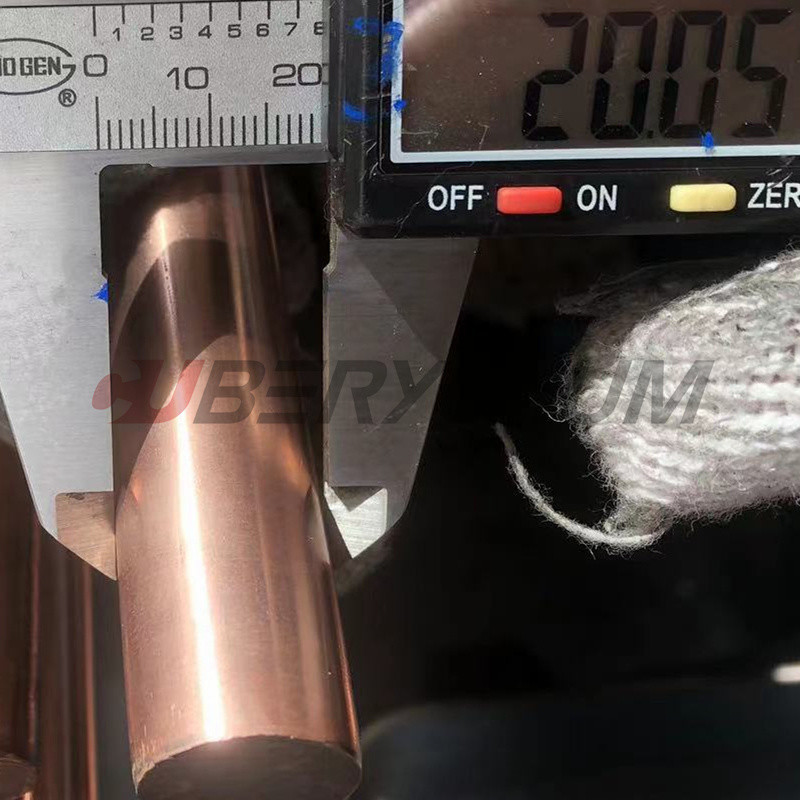

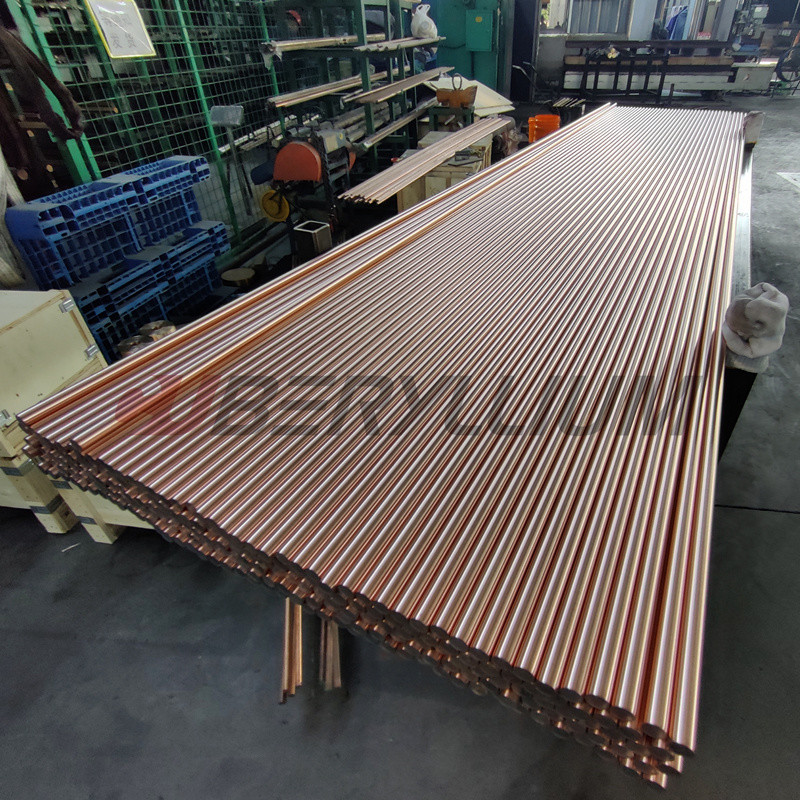

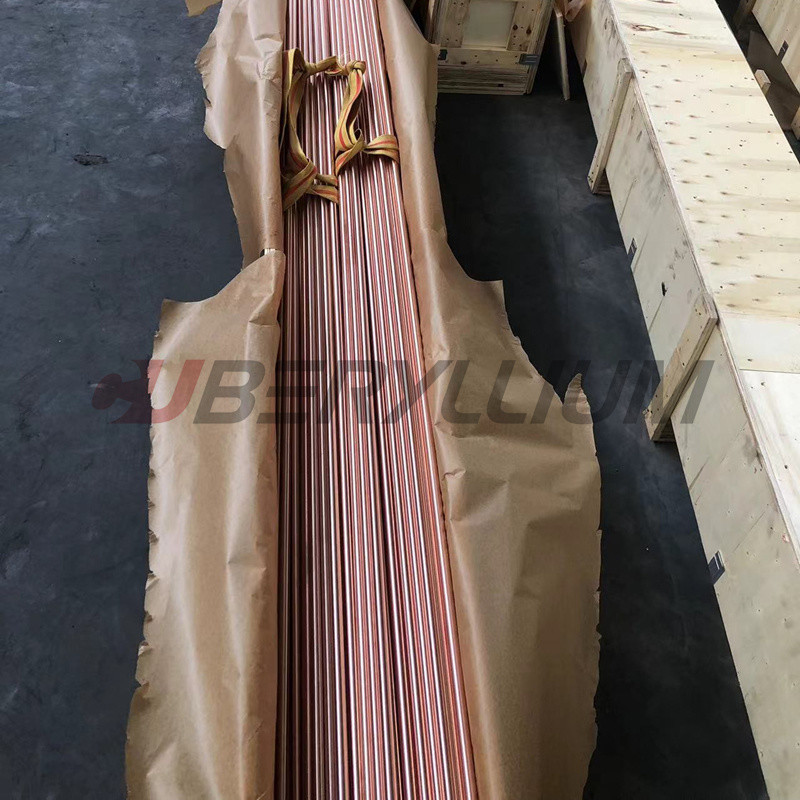

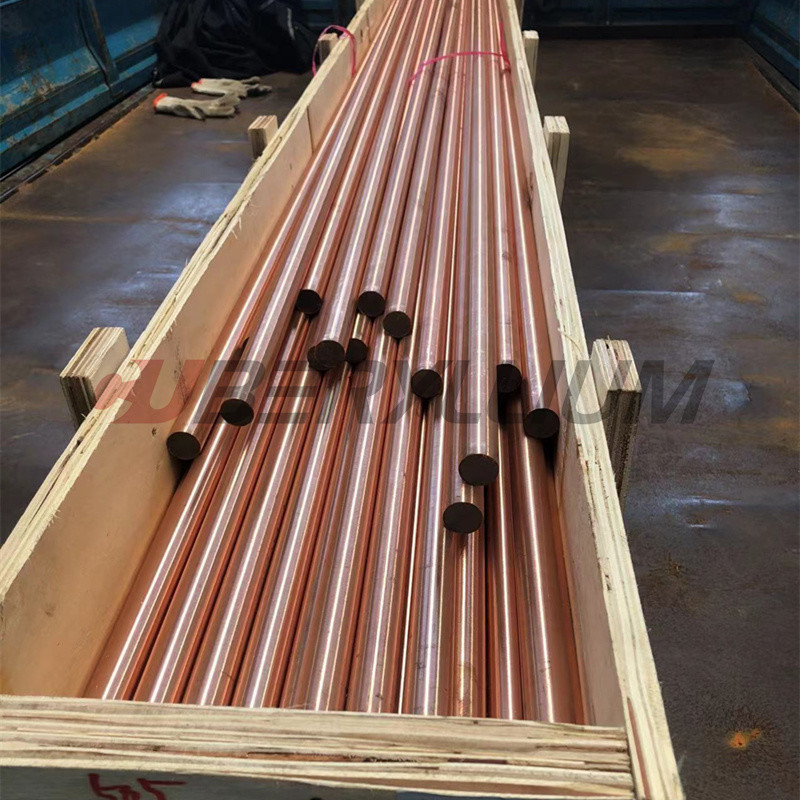

Product Photo:
Customization:
C17510 Beryllium Copper Customized Service
Cuberyllium provides C17510 Beryllium Copper customization services, which can be used for copper alloy rod, copper alloy plate.
Brand Name: Cuberyllium
Place of Origin: China
Minimum Order Quantity: 50KGS
Price: 23usd/kg
Packaging Details: woodencase
Delivery Time: within 15 working days
Payment Terms: 30% in advance by T/T
Support and Services:
C17510 Beryllium Copper technical support and services include:
- Materials selection assistance
- Metal forming and machining services
- Heat treatment services
- Chemical analysis
- Testing services
- Product design and development support
- Engineering consultation
