CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market

  • CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market
  • CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market
  • CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market
  • CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market
  • CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market
  • CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market
Place of Origin China
Brand Name CUBERYLLIUM®
Certification ISO,SGS
Model Number CuBe2 (C17200) (БрБ2)
Minimum Order Quantity 70-100
Price 30USD
Packaging Details Coil+plywood case
Delivery Time 10~15days
Payment Terms L/C, T/T, Western Union
Supply Ability 200T/Month

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name CuBe2 (C17200) Strips Hard (БрБ2 твердые) Thinnest Thick. 0.08mm
Width 200-300mm Standard GOST 1789
Safe Handling No Special Health Risk. Machining Property Good
Surface Bright/Polished Flatness Good
Temper H Coil Weight According Customer's Requirement
High Light

Hard CuBe2 Beryllium Copper Strip

,

Solid C17200 Strip

,

Bright Surface C17200 Strip
Leave a Message
Product Description

CuBe2 (C17200) Strips Hard (БрБ2 твердые) With Negtive Tolerance For Russian Market

Product Name Beryllium copper strip/beryllium copper tape
Grade Cube2, C17200, БрБ2
End Product Form Strip, Foil, Coil
Standard ASTM B194
State of product H
Specification

0.1mm, 0.15mm, 0.2mm, 0.3mm, 0.4mm, 0.5mm, 0.8mm
Application Industrial, Electrical Industry
MOQ if we have the same size under production, the small qty could be acceptable





Introduction of CuBe2 (C17200,БрБ2) Material:

QBe2 beryllium copper is beryllium copper containing a small amount of nickel, which is an alloy with good mechanical, physical and chemical comprehensive properties.


Tipical Use of CuBe2 (C17200,БрБ2) Material:

After quenching and tempering, it has high strength, hardness, elasticity, fatigue limit and heat resistance; it also has high electrical conductivity, thermal conductivity and cold resistance, non-magnetic, no sparks when impacted, easy to weld and fiber Welding, in the atmosphere. Excellent corrosion resistance in fresh water and sea water. QBe2 Beryllium Copper Product Features Copper alloy, after solid solution and age hardening treatment, has high hardness, high hardness, high explosion resistance, high yield limit and fatigue limit, good corrosion resistance, high electrical conductivity and excellent heat dissipation performance. Easy to process, cooling effect Beryllium copper Application fields: Applied in high electronics, plastic and optical molds where water cannot pass through as soil heat dissipation, mold cores, punches, hot runner cooling systems, communication preparation equipment, electronic and electrical equipment, instruments and meters, Raw materials for aerospace, automobile manufacturing, etc. and processed parts.


Chemical Composition of CuBe2 (C17200,БрБ2) Material:

Material Grade Be Ni Fe Al Si Pb Cu Total Admixtures
Cube2, C17200, БрБ2 1.8-2.0 0.2-0.5 ≤0.15 ≤0.15 ≤0.15 ≤0.005 Balance ≤0.5





Physical Properties of CuBe2 (C17200,БрБ2) Material:
Density (g/cm3) Density before age hardening (g/cm3) Elastic Modulus (kg/mm2 (103)) Thermal Expansion Coefficient (20 °C to 200 °C m/m/°C) Thermal Conductivity (cal/(cm-s-°C)) Melting Range (°C)
8.36 8.25 13.40 17 x 10-6 0.25 870-980



Specifications of Becu Copper Alloy we could provide:
Grade: CuBe2-UNS C17200, CuBe2Pb-UNS C17300, CuCo2Be-UNS C17500, CuNi2Be-UNS.C17510, CuCo1Ni1Be
Test Certificate: MTC, Lab TC from Govt. Approved Lab with Third Party Inspection

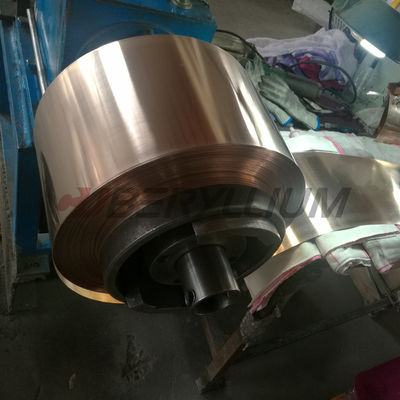

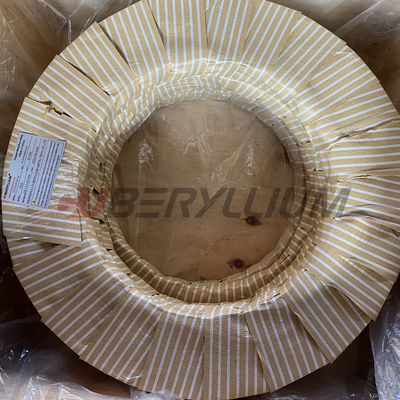

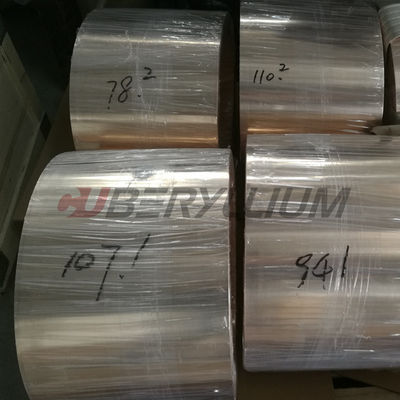

Product Photo of CuBe2 (C17200,БрБ2) Material:

CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market 0

CuBe2 C17200 Strips Hard ( BrB2 Solid ) With Negtive Tolerance For Russian Market 1

Contact Information of Hangzhou Cuberyllium Metal Tech. Co.,Ltd.:

Contact Person: Mr. Yomi Xu

Tel: +86-17376550856(What'sApp)

Email: sales@cuberyllium.com

Website: www.cuberyllium.com
